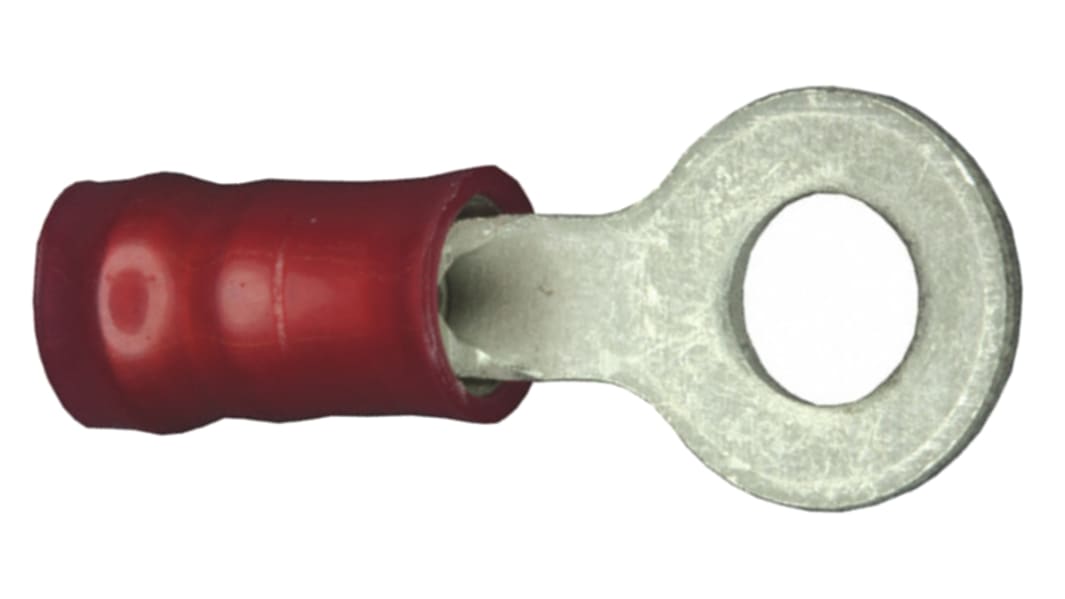

TE Connectivity, PIDG Insulated Ring Terminal, M4 (#8) Stud Size, 0.26mm² to 1.65mm² Wire Size, Red
- RS Stock No.:
- 825-2088
- Mfr. Part No.:
- 32835
- Brand:
- TE Connectivity
1200 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 50)
£0.481
(exc. VAT)
£0.577
(inc. VAT)
| Units | Per unit | Per Pack* |
| 50 - 200 | £0.481 | £24.05 |
| 250 + | £0.428 | £21.40 |
| *price indicative | ||
- RS Stock No.:
- 825-2088
- Mfr. Part No.:
- 32835
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
Product Details
TE Connectivity PIDG Mil Spec Ring Tongue Terminals
Mil Spec PIDG ring tongue wire crimp terminals consisting of a precision-formed metal wire barrel containing serrations which provide maximum contact and tensile strength after crimping. This barrel is enclosed in a copper sleeve and the whole is encased in a nylon colour coded insulation sleeve. These PIDG ring tongue wire crimp connectors are available with different barrel lengths and diameters to accept various wire sizes and are stamped in accordance with various Military Specifications. Please refer to datasheets for specification details.
TE Connectivity PIDG Terminals
Specifications
Attribute | Value |
|---|---|
| Series | PIDG |
| Insulation | Insulated |
| Insulation Material | Nylon |
| Outer Ring Diameter | 8.74mm |
| Inner Ring Diameter | 4.34mm |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Stud Size | M4 (#8) |
| Colour | Red |
| Contact Plating | Tin |
| Contact Material | Copper |
| Thickness | 0.79mm |
| Overall Length | 22.25mm |
