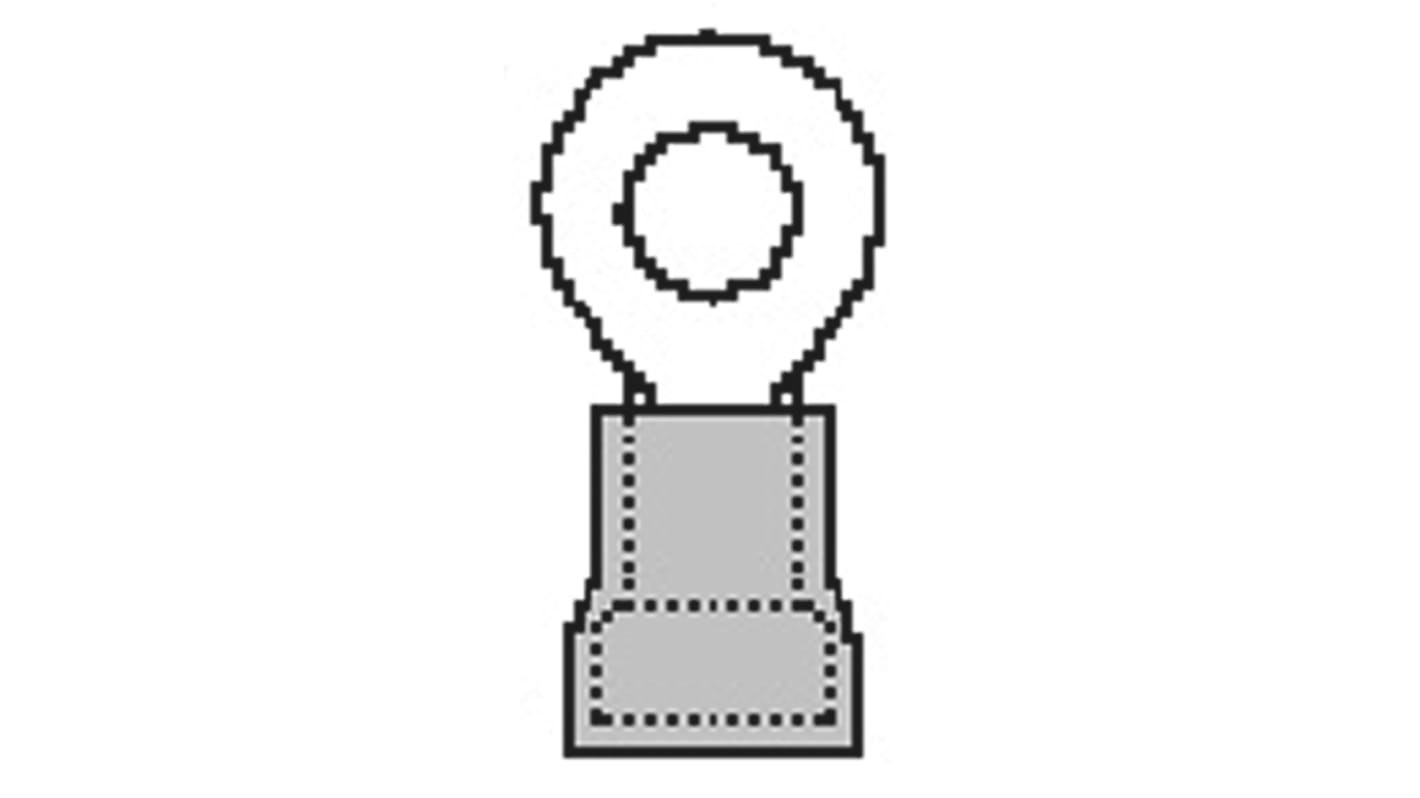

Molex, 800 Insulated Ring Terminal, M4 (#8) Stud Size, 1mm² to 2.5mm² Wire Size, Blue
- RS Stock No.:
- 822-1233
- Mfr. Part No.:
- 19073-0085
- Brand:
- Molex
Available to back order for despatch 19/07/2024
Added
Price Each (In a Pack of 100)
£0.519
(exc. VAT)
£0.623
(inc. VAT)
| Units | Per unit | Per Pack* |
| 100 - 400 | £0.519 | £51.90 |
| 500 - 2400 | £0.441 | £44.10 |
| 2500 - 4900 | £0.363 | £36.30 |
| 5000 - 9900 | £0.313 | £31.30 |
| 10000 + | £0.305 | £30.50 |
| *price indicative | ||
- RS Stock No.:
- 822-1233
- Mfr. Part No.:
- 19073-0085
- Brand:
- Molex
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
Molex Avikrimp Insulated Crimp Ring Terminals
Avikrimp™ insulated crimp ring terminals with a seamless barrel and halogen free nylon insulation. These Avikrimp™ insulated crimp ring terminals are made from copper with tin plating and have a tin plated brass ferrule. The seamless barrel of these Avikrimp™ crimp ring terminals enables easier crimping by allowing the barrel to rotate in the crimping jaws and are also available in different wire and stud sizes.
Specifications
Attribute | Value |
|---|---|
| Series | 800 |
| Series Number | 19073 |
| Insulation | Insulated |
| Insulation Material | Nylon |
| Outer Ring Diameter | 8.18mm |
| Inner Ring Diameter | 4.39mm |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size mm² | 1mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Stud Size | M4 (#8) |
| Colour | Blue |
| Contact Plating | Tin |
| Contact Material | Copper |
| Thickness | 0.79mm |
| Overall Length | 22.48mm |
