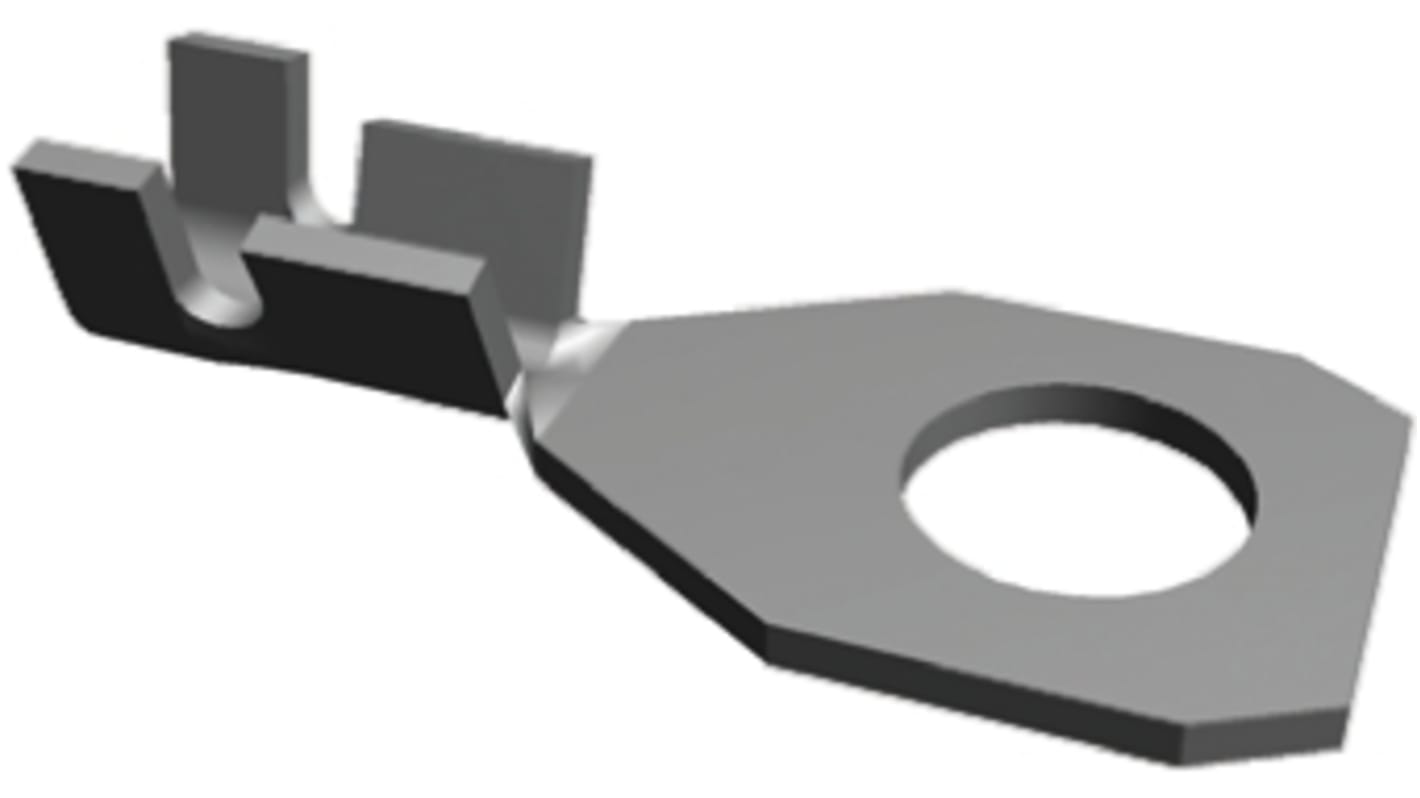

TE Connectivity, 60123 Uninsulated Ring Terminal, 3.6 mm Stud Size 26 AWG 20 AWG Wire Size, Grey
- RS Stock No.:
- 765-0930
- Mfr. Part No.:
- 60123-2
- Brand:
- TE Connectivity
Bulk discount available
View bulk pricing optionsSubtotal (1 reel of 12000 units)*
£1,089.53
(exc. VAT)
£1,307.44
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 09 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 - 2 | £1,089.53 | £0.091 |
| 3 - 5 | £1,059.27 | £0.088 |
| 6 - 9 | £1,030.64 | £0.086 |
| 10 - 19 | £1,003.52 | £0.084 |
| 20 + | £977.79 | £0.081 |
*price indicative
- RS Stock No.:
- 765-0930
- Mfr. Part No.:
- 60123-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Ring Terminal | |
| Series | 60123 | |
| Insulation | Uninsulated | |
| Inner Ring Diameter | 3.61mm | |
| Minimum Wire Size AWG | 26AWG | |
| Maximum Wire Size AWG | 20AWG | |
| Overall Length | 14.35mm | |
| Stud Size | 3.6 mm | |
| Colour | Grey | |
| Contact Plating | Tin | |
| Contact Material | Brass | |
| Thickness | 0.51mm | |
| Standards/Approvals | No | |
| Maximum Wire Size mm² | 0.5mm² | |
| Minimum Wire Size mm² | 0.1mm² | |
| Maximum Operating Temperature | 110°C | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Ring Terminal | ||
Series 60123 | ||
Insulation Uninsulated | ||
Inner Ring Diameter 3.61mm | ||
Minimum Wire Size AWG 26AWG | ||
Maximum Wire Size AWG 20AWG | ||
Overall Length 14.35mm | ||
Stud Size 3.6 mm | ||
Colour Grey | ||
Contact Plating Tin | ||
Contact Material Brass | ||
Thickness 0.51mm | ||
Standards/Approvals No | ||
Maximum Wire Size mm² 0.5mm² | ||
Minimum Wire Size mm² 0.1mm² | ||
Maximum Operating Temperature 110°C | ||
Minimum Operating Temperature -40°C | ||
TE Connectivity 'F' Style Ring Tongue Crimp Terminals
A range of open barrel 'F' style ring and spade crimp terminals
