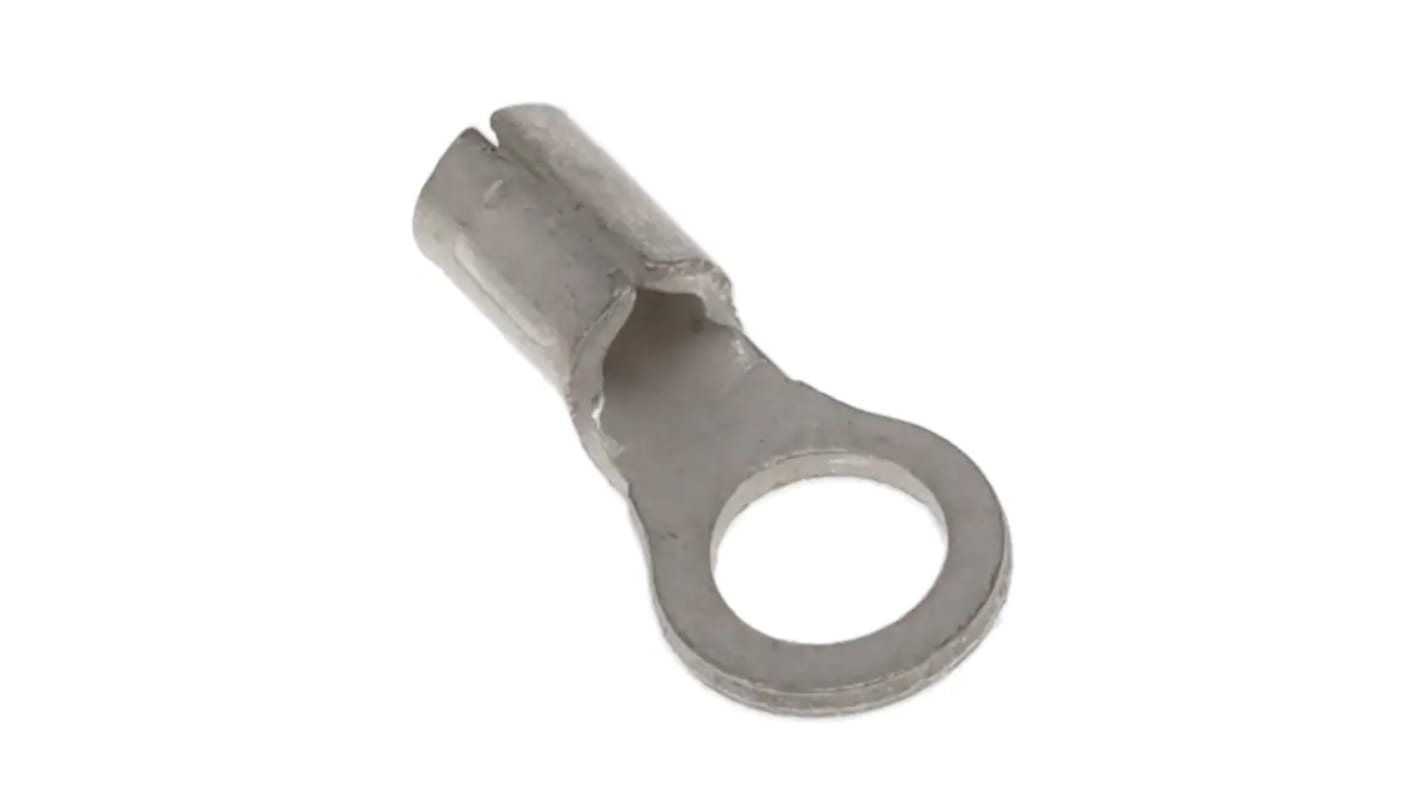

Molex, Versakrimp Uninsulated Ring Terminal, M3.5 Stud Size 22 AWG 18 AWG Wire Size, Copper

View all Ring Terminals
Bulk discount available

Subtotal (1 tape of 10 units)*

£2.65

(exc. VAT)

£3.18

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 4,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tape*
10 - 90£0.265£2.65
100 - 240£0.233£2.33
250 - 490£0.212£2.12
500 - 990£0.194£1.94
1000 +£0.179£1.79

*price indicative

Packaging Options:
RS Stock No.:
259-2475
Mfr. Part No.:
19193-0011
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Series

Versakrimp

Product Type

Ring Terminal

Insulation

Uninsulated

Inner Ring Diameter

3.71mm

Outer Ring Diameter

5.72mm

Maximum Wire Size AWG

18 AWG

Minimum Wire Size AWG

22 AWG

Overall Length

12.29mm

Stud Size

M3.5

Colour

Copper

Contact Plating

Tin

Contact Material

Copper

Thickness

0.71mm

Standards/Approvals

CSA LR18689, UL E32244

RoHS Status: Not Applicable

COO (Country of Origin):
US
The Molex versakrimp ring tongue terminal for 18-22 AWG wire.

Barrel type closed - Brazed

Material - plating mating tin

Net weight 0.346/g

Packaging type adhesive tape on reel

Stud size 5-6 (M3-3.5)

Wire size AWG 18, 20, 22

Wire size 0.35 mm² to 0.80 mm²
