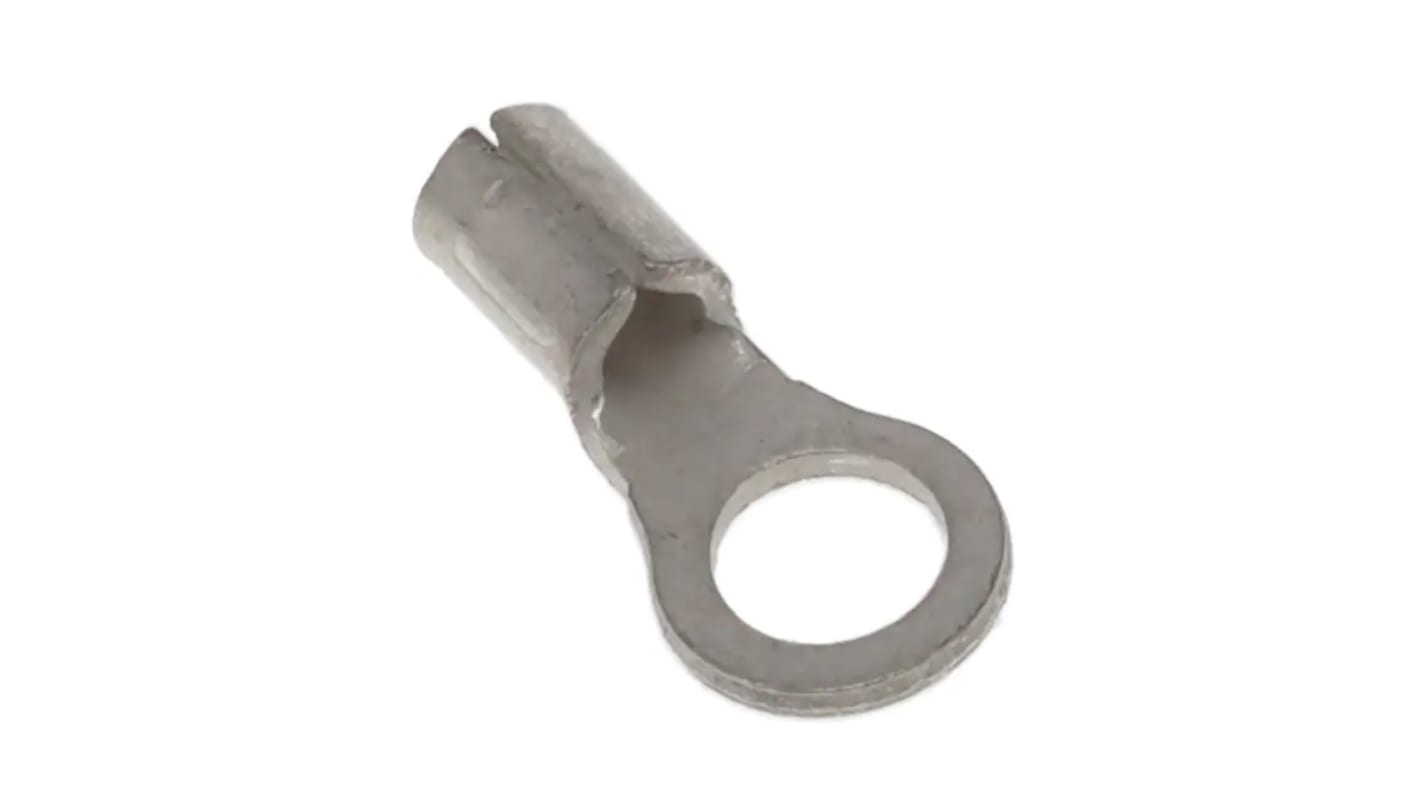

Molex, Versakrimp Uninsulated Ring Terminal
- RS Stock No.:
- 259-2474
- Mfr. Part No.:
- 19193-0011
- Brand:
- Molex
Subtotal (1 reel of 2000 units)*
£336.00
(exc. VAT)
£404.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 4,000 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2000 + | £0.168 | £336.00 |
*price indicative
- RS Stock No.:
- 259-2474
- Mfr. Part No.:
- 19193-0011
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | Versakrimp | |
| Series Number | 19193 | |
| Insulation | Uninsulated | |
| Inner Ring Diameter | 3.71mm | |
| Outer Ring Diameter | 5.72mm | |
Select all | ||
|---|---|---|
Brand Molex | ||
Series Versakrimp | ||
Series Number 19193 | ||
Insulation Uninsulated | ||
Inner Ring Diameter 3.71mm | ||
Outer Ring Diameter 5.72mm | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- US
The Molex versakrimp ring tongue terminal for 18-22 AWG wire.
Barrel type closed - Brazed
Material - plating mating tin
Net weight 0.346/g
Packaging type adhesive tape on reel
Stud size 5-6 (M3-3.5)
Wire size AWG 18, 20, 22
Wire size 0.35 mm² to 0.80 mm²
Material - plating mating tin
Net weight 0.346/g
Packaging type adhesive tape on reel
Stud size 5-6 (M3-3.5)
Wire size AWG 18, 20, 22
Wire size 0.35 mm² to 0.80 mm²
