TE Connectivity, PIDG Insulated Ring Terminal, M5 Stud Size
- RS Stock No.:
- 241-1316
- Mfr. Part No.:
- 130005
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 pack of 10 units)*
£6.53
(exc. VAT)
£7.84
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 860 unit(s) ready to ship
- Plus 20 unit(s) ready to ship from another location
- Plus 1,000 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £0.653 | £6.53 |
| 50 - 190 | £0.62 | £6.20 |
| 200 + | £0.581 | £5.81 |
*price indicative
- RS Stock No.:
- 241-1316
- Mfr. Part No.:
- 130005
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | PIDG | |
| Insulation | Insulated | |
| Insulation Material | Nylon | |
| Inner Ring Diameter | M5 | |
| Outer Ring Diameter | 7.92mm | |
| Minimum Wire Size AWG | 22AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Stud Size | M5 | |
| Contact Plating | Tin | |
| Overall Length | 21.6mm | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series PIDG | ||
Insulation Insulated | ||
Insulation Material Nylon | ||
Inner Ring Diameter M5 | ||
Outer Ring Diameter 7.92mm | ||
Minimum Wire Size AWG 22AWG | ||
Maximum Wire Size AWG 16AWG | ||
Stud Size M5 | ||
Contact Plating Tin | ||
Overall Length 21.6mm | ||
- COO (Country of Origin):
- US

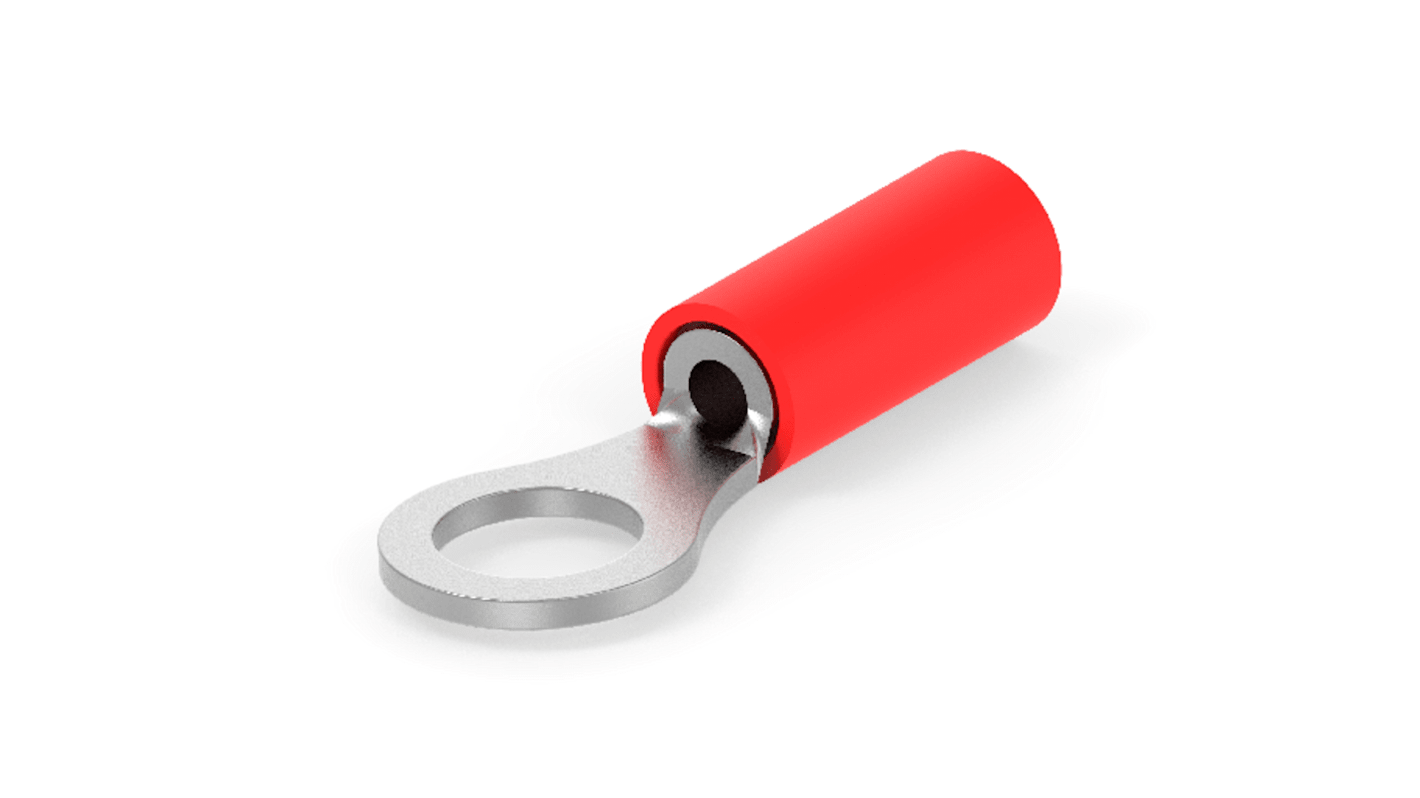

The TE Connectivity ring terminal is a short metal tube with flat washer type ring attached. The tube or barrel end of the crimp is a hollow tube where the stranded wire is inserted and crimped. The contact or connection end is a flat ring with a central hole which connects to a stud or bolt. Ring terminals are insulated or non-insulated.
EU RoHS complaint
EU ELV complaint
EU ELV complaint
