RS PRO, E245391 Insulated Ring Terminal, 8.4 mm Stud Size 16 AWG 14 AWG Wire Size, Blue

View all Ring Terminals
Bulk discount available

Subtotal (1 bag of 100 units)*

£8.40

(exc. VAT)

£10.10

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2,000 unit(s) ready to ship
  • Plus 3,700 unit(s) ready to ship from another location
  • Plus 8,000 unit(s) shipping from 28 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Bag*
100 - 900£0.084£8.40
1000 - 1900£0.076£7.60
2000 - 4900£0.07£7.00
5000 - 9900£0.064£6.40
10000 +£0.059£5.90

*price indicative

RS Stock No.:
178-8663
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Series

E245391

Product Type

Ring Terminal

Insulation

Insulated

Insulation Material

Vinyl

Outer Ring Diameter

12mm

Inner Ring Diameter

8.4mm

Minimum Wire Size AWG

16 AWG

Maximum Wire Size AWG

14 AWG

Overall Length

26.8mm

Stud Size

8.4 mm

Colour

Blue

Contact Plating

Tin

Contact Material

Copper

Thickness

0.8mm

Standards/Approvals

No

Maximum Operating Temperature

105°C

Minimum Operating Temperature

-40°C

COO (Country of Origin):
TW

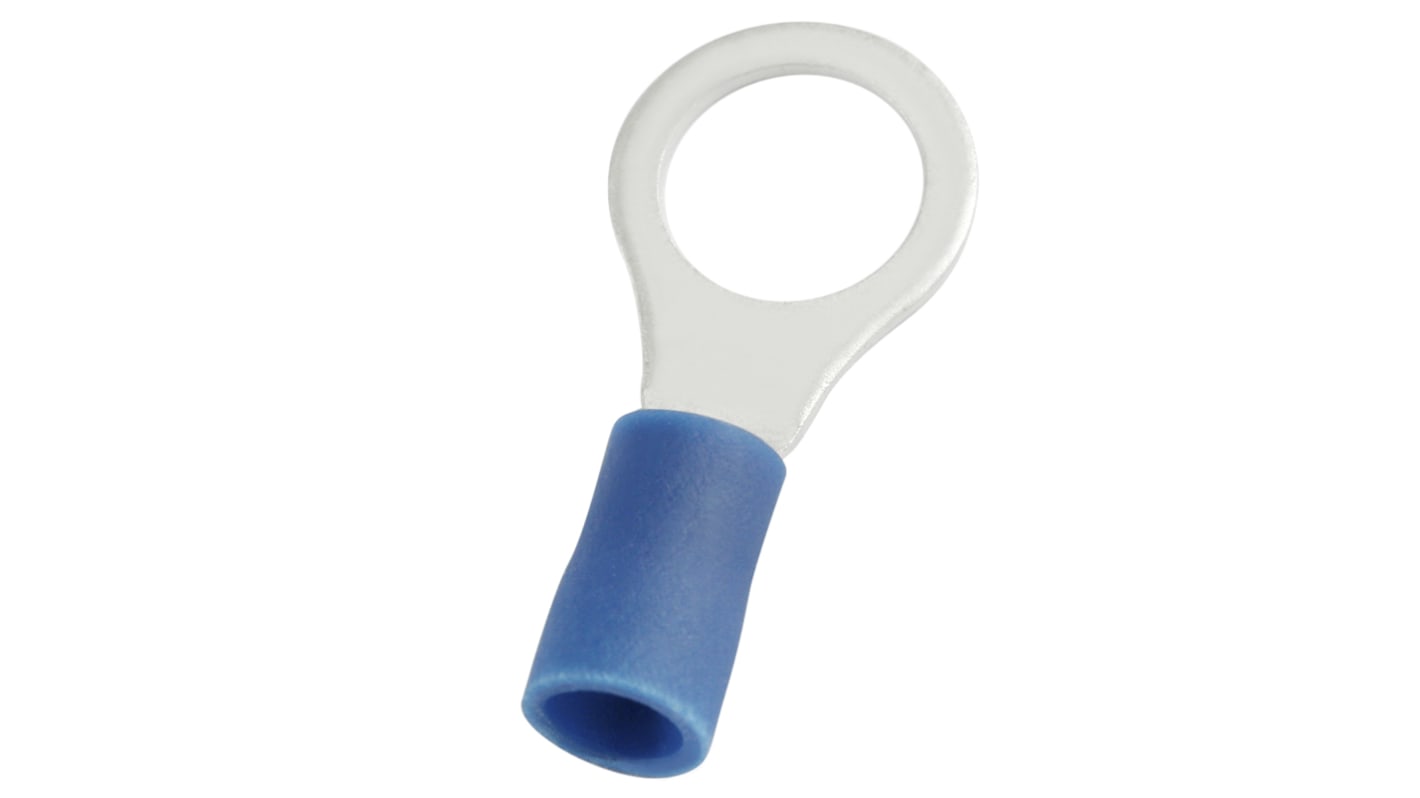

The RS PRO Insulted ring has a outer ring diameter of 12mm and inner ring diameter of 8.4mm which comes with maximum 2.5mm² wire size connection. It is made up of high quality copper for contact material and Vinyl is used for insulation which comes with blue in colour.

Stud Size 8.4mm

Colour Blue

Contact Material Copper

Thickness 0.8mm

Overall Length 26.8mm
