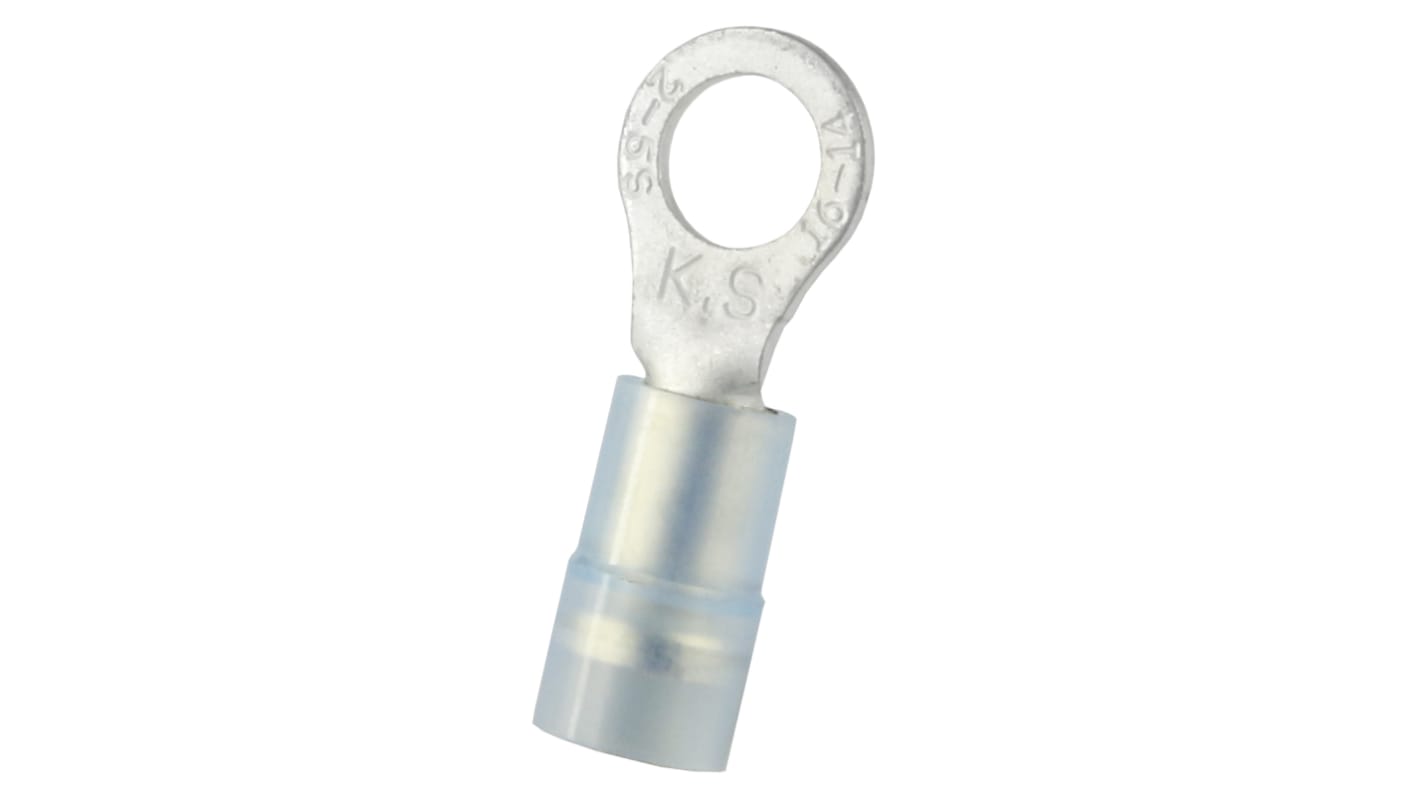

RS PRO Insulated Ring Terminal, 5.3mm Stud Size, 1.5mm² to 2.5mm² Wire Size, Blue
- RS Stock No.:
- 178-8646
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 bag of 100 units)*
£7.50
(exc. VAT)
£9.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 400 unit(s) ready to ship
- Plus 400 unit(s) ready to ship from another location
- Plus 4,000 unit(s) shipping from 11 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
---|---|---|
100 - 900 | £0.075 | £7.50 |
1000 - 1900 | £0.068 | £6.80 |
2000 - 4900 | £0.062 | £6.20 |
5000 - 9900 | £0.057 | £5.70 |
10000 + | £0.052 | £5.20 |
*price indicative
- RS Stock No.:
- 178-8646
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Series | E245391 | |
Insulation | Insulated | |
Insulation Material | Nylon | |
Outer Ring Diameter | 8.5mm | |
Inner Ring Diameter | 5.3mm | |
Minimum Wire Size mm² | 1.5mm² | |
Maximum Wire Size mm² | 2.5mm² | |
Minimum Wire Size AWG | 16AWG | |
Maximum Wire Size AWG | 14AWG | |
Stud Size | 5.3mm | |
Colour | Blue | |
Contact Material | Copper | |
Contact Plating | Tin | |
Thickness | 0.8mm | |
Overall Length | 22.8mm | |
Maximum Operating Temperature | +105°C | |
Minimum Operating Temperature | -40°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Series E245391 | ||
Insulation Insulated | ||
Insulation Material Nylon | ||
Outer Ring Diameter 8.5mm | ||
Inner Ring Diameter 5.3mm | ||
Minimum Wire Size mm² 1.5mm² | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 16AWG | ||
Maximum Wire Size AWG 14AWG | ||
Stud Size 5.3mm | ||
Colour Blue | ||
Contact Material Copper | ||
Contact Plating Tin | ||
Thickness 0.8mm | ||
Overall Length 22.8mm | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- TW
The RS PRO Insulted ring has a outer ring diameter of 8.5mm and inner ring diameter of 5.3mm which comes with maximum 2.5mm² wire size connection. It is made up of high quality copper for contact material and Vinyl is used for insulation which comes with blue in colour.
Stud Size 5.3mm
Colour Blue
Contact Material Copper
Thickness 0.8mm
Overall Length 22.8mm
Colour Blue
Contact Material Copper
Thickness 0.8mm
Overall Length 22.8mm
