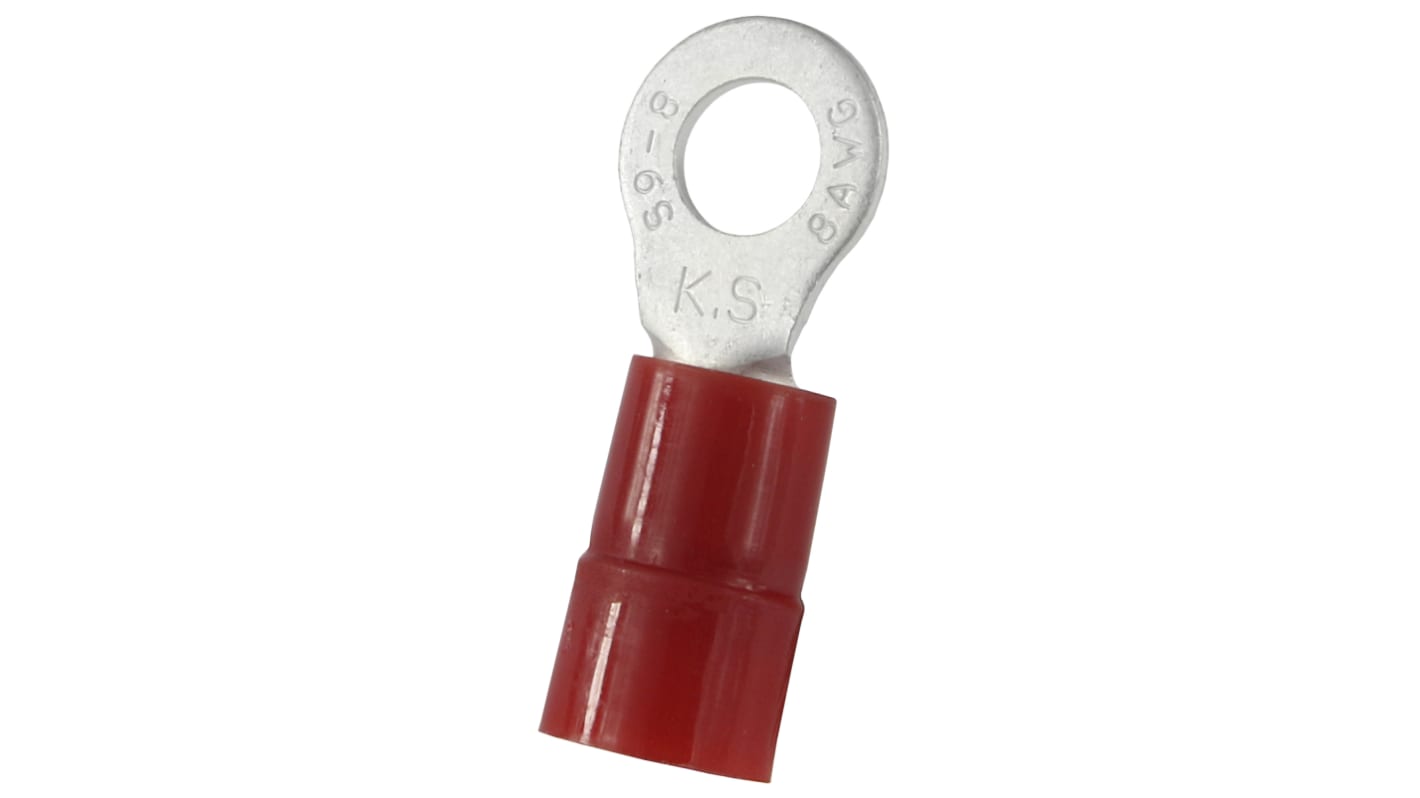

RS PRO Insulated Ring Terminal, 6.4mm Stud Size to 8mm² Wire Size, Red
- RS Stock No.:
- 178-8644
- Brand:
- RS PRO
5800 In stock - FREE next working day delivery available
Added
Price Each (In a Bag of 100)
£0.295
(exc. VAT)
£0.354
(inc. VAT)
| Units | Per unit | Per Bag* |
| 100 - 900 | £0.295 | £29.50 |
| 1000 - 1900 | £0.269 | £26.90 |
| 2000 - 4900 | £0.246 | £24.60 |
| 5000 - 9900 | £0.227 | £22.70 |
| 10000 + | £0.206 | £20.60 |
| *price indicative | ||
- RS Stock No.:
- 178-8644
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
The RS PRO Insulted ring has a outer ring diameter of 12mm and inner ring diameter of 6.4mm which comes with maximum 8mm² wire size connection. It is made up of high quality copper for contact material and Vinyl is used for insulation which comes with red in colour.
Stud Size 6.4mm
Colour Red
Contact Material Copper
Thickness 1.2mm
Overall Length 13.3mm
Colour Red
Contact Material Copper
Thickness 1.2mm
Overall Length 13.3mm
Specifications
Attribute | Value |
|---|---|
| Insulation | Insulated |
| Insulation Material | Nylon |
| Inner Ring Diameter | 6.4mm |
| Outer Ring Diameter | 12mm |
| Maximum Wire Size mm² | 8mm² |
| Maximum Wire Size AWG | 8AWG |
| Stud Size | 6.4mm |
| Colour | Red |
| Contact Material | Copper |
| Thickness | 1.2mm |
| Overall Length | 13.3mm |
| Maximum Operating Temperature | +105°C |
