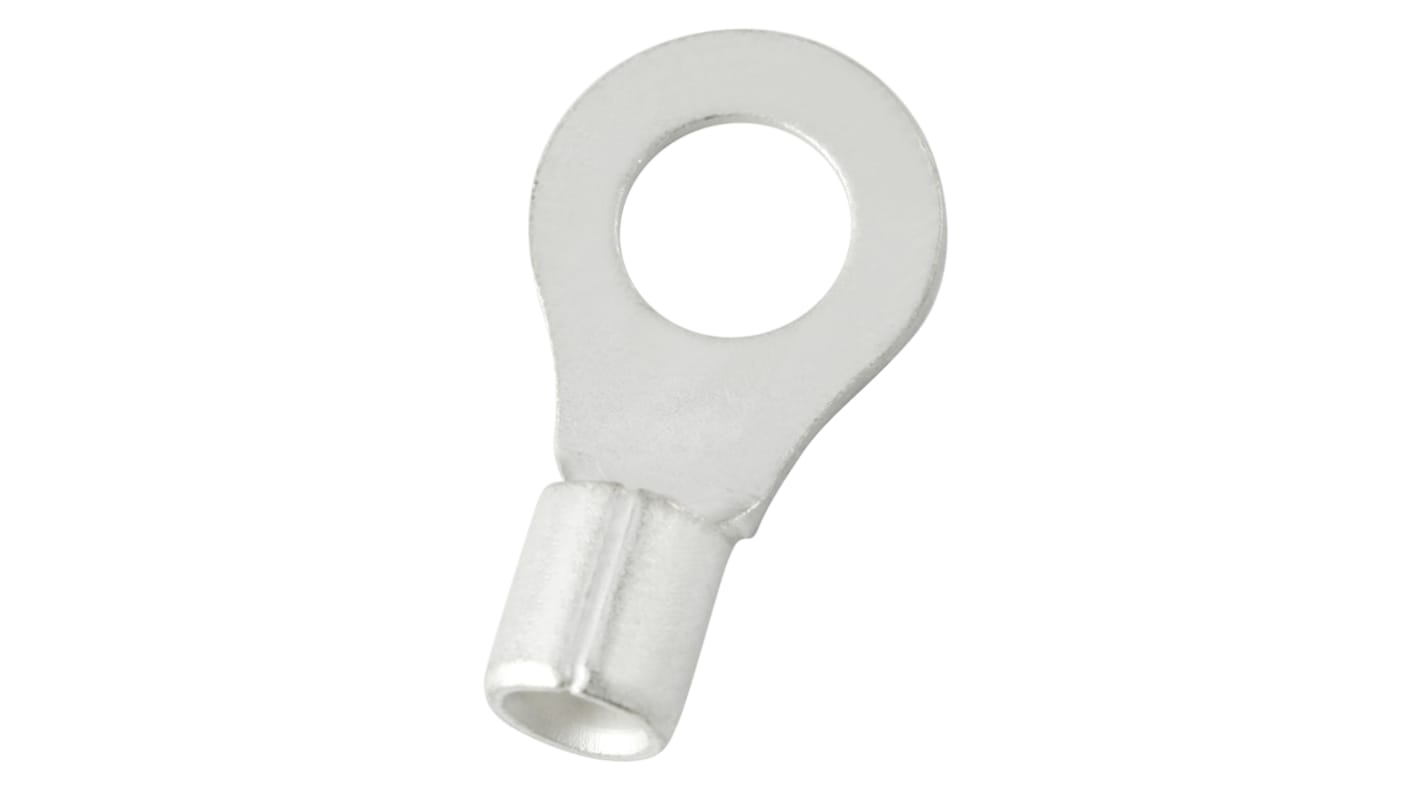

RS PRO Uninsulated Ring Terminal, 10.5mm Stud Size, 4mm² to 6mm² Wire Size
- RS Stock No.:
- 178-8622
- Distrelec Article No.:
- 304-25-382
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 bag of 100 units)*
£15.80
(exc. VAT)
£19.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3,800 unit(s) ready to ship
- Plus 900 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
---|---|---|
100 - 900 | £0.158 | £15.80 |
1000 - 1900 | £0.143 | £14.30 |
2000 - 4900 | £0.132 | £13.20 |
5000 - 9900 | £0.121 | £12.10 |
10000 + | £0.11 | £11.00 |
*price indicative
- RS Stock No.:
- 178-8622
- Distrelec Article No.:
- 304-25-382
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Series | E245391 | |
Insulation | Uninsulated | |
Outer Ring Diameter | 15mm | |
Inner Ring Diameter | 10.5mm | |
Maximum Wire Size mm² | 6mm² | |
Minimum Wire Size mm² | 4mm² | |
Maximum Wire Size AWG | 10AWG | |
Minimum Wire Size AWG | 12AWG | |
Stud Size | 10.5mm | |
Contact Plating | Tin | |
Contact Material | Copper | |
Thickness | 1mm | |
Overall Length | 27mm | |
Maximum Operating Temperature | +150°C | |
Minimum Operating Temperature | -40°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Series E245391 | ||
Insulation Uninsulated | ||
Outer Ring Diameter 15mm | ||
Inner Ring Diameter 10.5mm | ||
Maximum Wire Size mm² 6mm² | ||
Minimum Wire Size mm² 4mm² | ||
Maximum Wire Size AWG 10AWG | ||
Minimum Wire Size AWG 12AWG | ||
Stud Size 10.5mm | ||
Contact Plating Tin | ||
Contact Material Copper | ||
Thickness 1mm | ||
Overall Length 27mm | ||
Maximum Operating Temperature +150°C | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- TW
The RS PRO Non-Insulted ring has a outer ring diameter of 15mm and inner ring diameter of 10.5mm which comes with maximum 6mm² wire size connection. It is made up of high quality copper for contact material.
Stud Size 10.5mm
Contact Plating Tin
Contact Material Copper
Thickness 1mm
Overall Length 27mm
Contact Plating Tin
Contact Material Copper
Thickness 1mm
Overall Length 27mm
