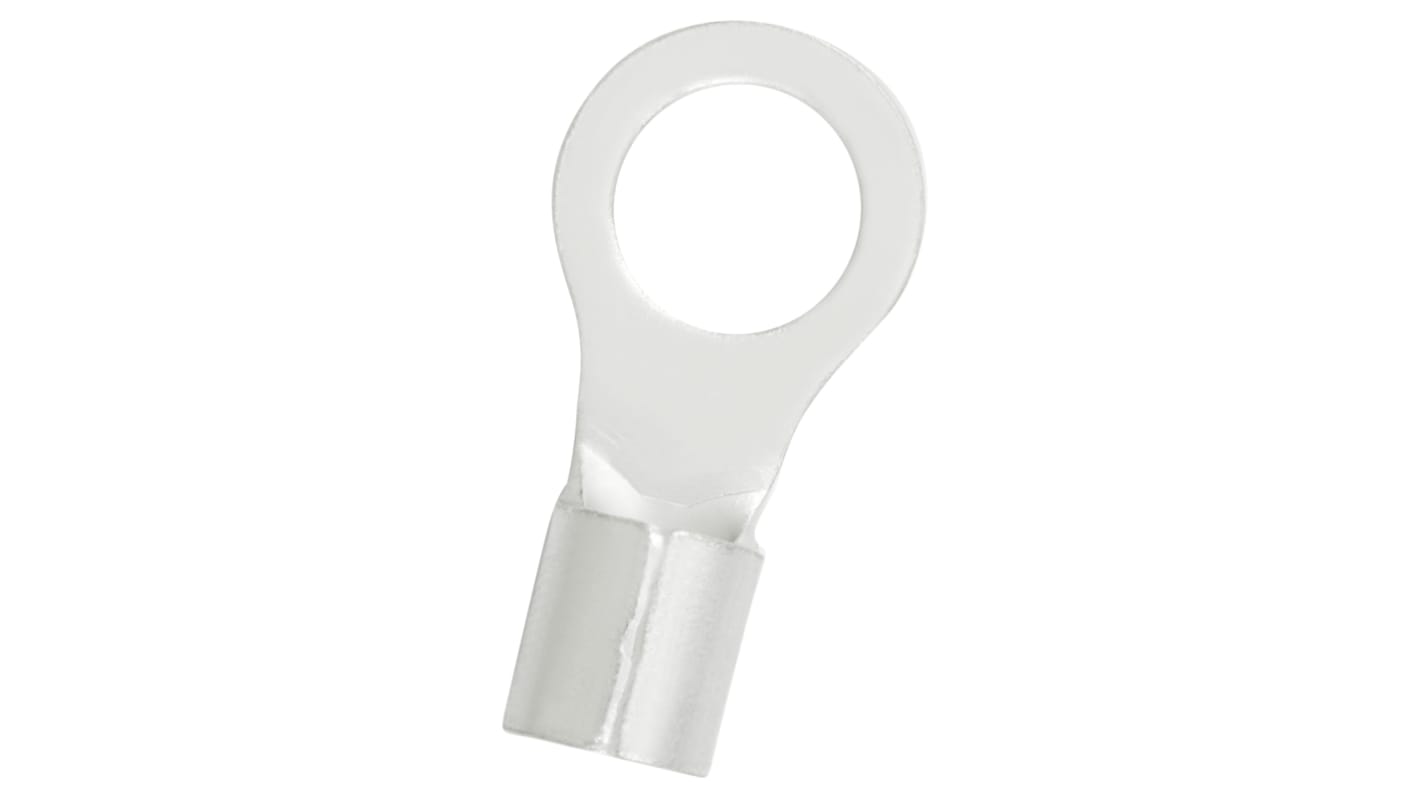

RS PRO Uninsulated Ring Terminal, 10.5mm Stud Size, 14mm² to 14mm² Wire Size
- RS Stock No.:
- 178-8630
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 bag of 100 units)*
£35.10
(exc. VAT)
£42.10
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
---|---|---|
100 - 900 | £0.351 | £35.10 |
1000 - 1900 | £0.319 | £31.90 |
2000 - 4900 | £0.292 | £29.20 |
5000 - 9900 | £0.27 | £27.00 |
10000 + | £0.245 | £24.50 |
*price indicative
- RS Stock No.:
- 178-8630
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Series | E245391 | |
Insulation | Uninsulated | |
Outer Ring Diameter | 16mm | |
Inner Ring Diameter | 10.5mm | |
Minimum Wire Size mm² | 14mm² | |
Maximum Wire Size mm² | 14mm² | |
Minimum Wire Size AWG | 6AWG | |
Maximum Wire Size AWG | 6AWG | |
Stud Size | 10.5mm | |
Contact Plating | Tin | |
Contact Material | Copper | |
Thickness | 1.5mm | |
Overall Length | 32.5mm | |
Maximum Operating Temperature | +150°C | |
Minimum Operating Temperature | -40°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Series E245391 | ||
Insulation Uninsulated | ||
Outer Ring Diameter 16mm | ||
Inner Ring Diameter 10.5mm | ||
Minimum Wire Size mm² 14mm² | ||
Maximum Wire Size mm² 14mm² | ||
Minimum Wire Size AWG 6AWG | ||
Maximum Wire Size AWG 6AWG | ||
Stud Size 10.5mm | ||
Contact Plating Tin | ||
Contact Material Copper | ||
Thickness 1.5mm | ||
Overall Length 32.5mm | ||
Maximum Operating Temperature +150°C | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- TW
The RS PRO Non-Insulted ring has a outer ring diameter of 16mm and inner ring diameter of 10.5mm which comes with maximum 14mm² wire size connection. It is made up of high quality copper for contact material.
Stud Size 10.5mm
Contact Plating Tin
Thickness 1.5mm
Overall Length 32.5mm
Contact Plating Tin
Thickness 1.5mm
Overall Length 32.5mm
