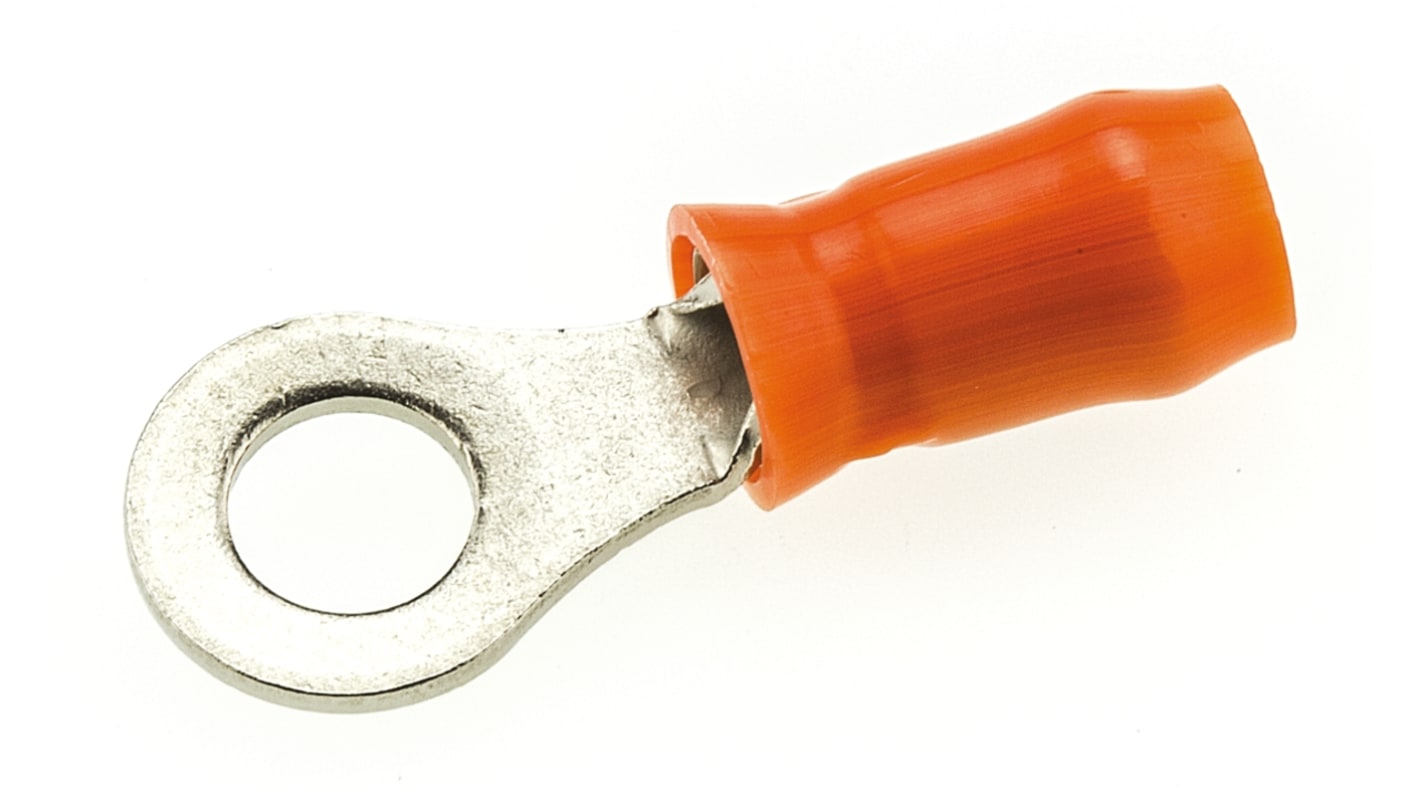

TE Connectivity, PIDG, STRATO-THERM Insulated Ring Terminal, M4 Stud Size, 0.8mm² to 1.4mm² Wire Size, Orange
- RS Stock No.:
- 136-1972
- Mfr. Part No.:
- 50836
- Brand:
- TE Connectivity
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 136-1972
- Mfr. Part No.:
- 50836
- Brand:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | PIDG, STRATO-THERM | |
| Insulation | Insulated | |
| Insulation Material | PTFE | |
| Outer Ring Diameter | 7.92mm | |
| Inner Ring Diameter | 4.34mm | |
| Maximum Wire Size mm² | 1.4mm² | |
| Minimum Wire Size mm² | 0.8mm² | |
| Minimum Wire Size AWG | 18AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Stud Size | M4 | |
| Colour | Orange | |
| Contact Material | Copper | |
| Contact Plating | Nickel | |
| Thickness | 0.79mm | |
| Overall Length | 21.44mm | |
| Maximum Operating Temperature | +288°C | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series PIDG, STRATO-THERM | ||
Insulation Insulated | ||
Insulation Material PTFE | ||
Outer Ring Diameter 7.92mm | ||
Inner Ring Diameter 4.34mm | ||
Maximum Wire Size mm² 1.4mm² | ||
Minimum Wire Size mm² 0.8mm² | ||
Minimum Wire Size AWG 18AWG | ||
Maximum Wire Size AWG 16AWG | ||
Stud Size M4 | ||
Colour Orange | ||
Contact Material Copper | ||
Contact Plating Nickel | ||
Thickness 0.79mm | ||
Overall Length 21.44mm | ||
Maximum Operating Temperature +288°C | ||
