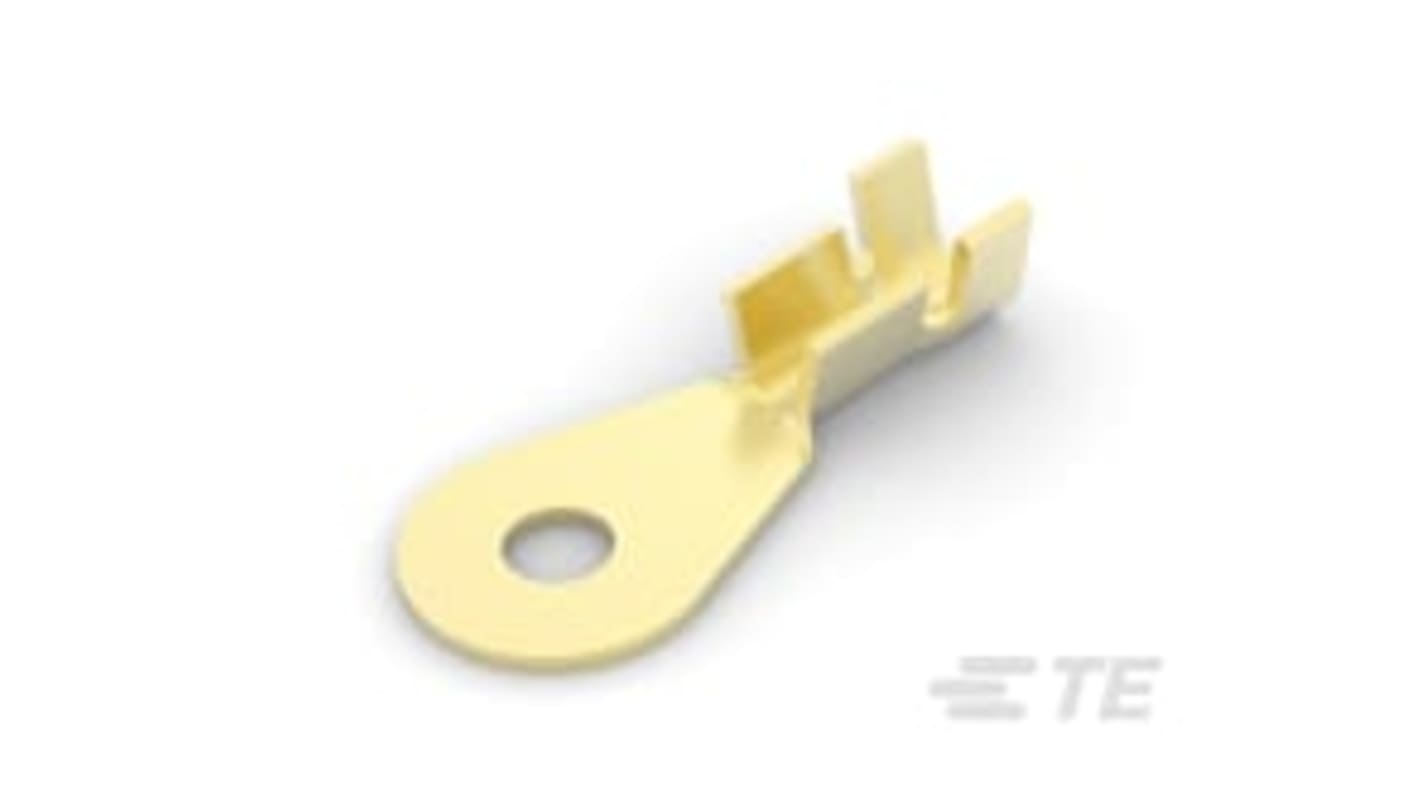

TE Connectivity, 1405 Uninsulated Ring Terminal, 1/4 in Stud Size 18 AWG 14 AWG Wire Size, Gold
- RS Stock No.:
- 477-013
- Distrelec Article No.:
- 304-47-142
- Mfr. Part No.:
- 140546
- Brand:
- TE Connectivity
Subtotal (1 reel of 5000 units)*
£502.42
(exc. VAT)
£602.90
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £502.42 | £0.10 |
*price indicative
- RS Stock No.:
- 477-013
- Distrelec Article No.:
- 304-47-142
- Mfr. Part No.:
- 140546
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | 1405 | |
| Product Type | Ring Terminal | |
| Insulation | Uninsulated | |
| Outer Ring Diameter | 6.3mm | |
| Inner Ring Diameter | 2.79mm | |
| Maximum Wire Size AWG | 14 AWG | |
| Minimum Wire Size AWG | 18 AWG | |
| Overall Length | 19.81mm | |
| Stud Size | 1/4 in | |
| Colour | Gold | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Thickness | 0.61mm | |
| Standards/Approvals | 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU REACH Regulation (EC) No. 1907/2006, EU RoHS Directive 2011/65/EU Compliant | |
| Maximum Operating Temperature | 110°C | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series 1405 | ||
Product Type Ring Terminal | ||
Insulation Uninsulated | ||
Outer Ring Diameter 6.3mm | ||
Inner Ring Diameter 2.79mm | ||
Maximum Wire Size AWG 14 AWG | ||
Minimum Wire Size AWG 18 AWG | ||
Overall Length 19.81mm | ||
Stud Size 1/4 in | ||
Colour Gold | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Thickness 0.61mm | ||
Standards/Approvals 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU REACH Regulation (EC) No. 1907/2006, EU RoHS Directive 2011/65/EU Compliant | ||
Maximum Operating Temperature 110°C | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- IT
The TE Connectivity closed ring tongue terminal is expertly designed for use with 18 to 14 AWG wire sizes and is ideal for applications requiring reliable connectivity. Engineered with a sturdy structure, it features a 1/4 inch stud size, offering an effective solution for secure attachment in various settings. The tin-plated finish enhances conductivity while ensuring resistance to corrosion and wear, making it suitable for both indoor and outdoor uses. This product aligns with stringent industry standards, ensuring compliance for safe and effective operation. With compatibility for stranded wire types and a focus on insulation support, this terminal stands out as a versatile choice for both professional and DIY projects, making reliable electrical connections accessible for everyone.
Constructed from brass for enhanced durability
Offers a straight terminal orientation for easy installation
Designed to support stranded wire types, ensuring a strong electrical connection
Features a barrel type that is open, facilitating easy wire insertion and attachment
Uninsulated design suitable for diverse applications
Operating temperature range allows for use in extreme conditions
Low halogen content ensures a reduced environmental impact
Packaging method available in strip/reel, ensuring convenient handling
