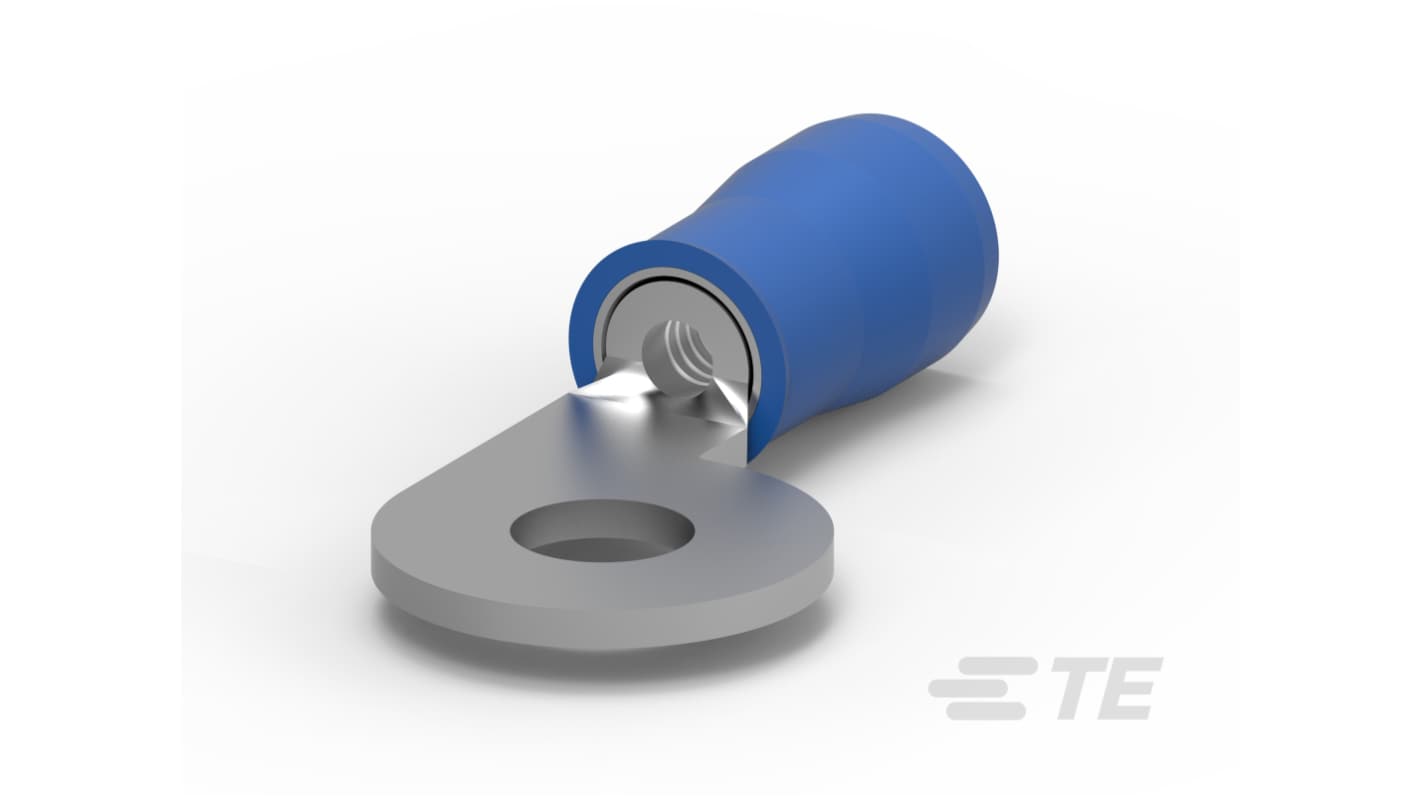

TE Connectivity, PIDG Insulated Ring Terminal, 10 mm Stud Size 16 AWG 14 AWG Wire Size
- RS Stock No.:
- 470-943
- Distrelec Article No.:
- 304-47-266
- Mfr. Part No.:
- 323818
- Brand:
- TE Connectivity
Subtotal (1 pack of 250 units)*
£165.18
(exc. VAT)
£198.22
(inc. VAT)
Add 1 pack to get free delivery
Temporarily out of stock
- Shipping from 24 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £165.18 | £0.661 |
*price indicative
- RS Stock No.:
- 470-943
- Distrelec Article No.:
- 304-47-266
- Mfr. Part No.:
- 323818
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Ring Terminal | |
| Series | PIDG | |
| Insulation | Insulated | |
| Insulation Material | Nylon | |
| Inner Ring Diameter | 5mm | |
| Maximum Wire Size AWG | 14 AWG | |
| Minimum Wire Size AWG | 16 AWG | |
| Overall Length | 23.01mm | |
| Stud Size | 10 mm | |
| Contact Plating | Tin | |
| Contact Material | Copper | |
| Thickness | 0.79mm | |
| Standards/Approvals | 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU REACH Regulation (EC) No. 1907/2006, EU RoHS Directive 2011/65/EU Compliant | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Ring Terminal | ||
Series PIDG | ||
Insulation Insulated | ||
Insulation Material Nylon | ||
Inner Ring Diameter 5mm | ||
Maximum Wire Size AWG 14 AWG | ||
Minimum Wire Size AWG 16 AWG | ||
Overall Length 23.01mm | ||
Stud Size 10 mm | ||
Contact Plating Tin | ||
Contact Material Copper | ||
Thickness 0.79mm | ||
Standards/Approvals 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU REACH Regulation (EC) No. 1907/2006, EU RoHS Directive 2011/65/EU Compliant | ||
- COO (Country of Origin):
- US
The TE Connectivity Closed Ring Tongue Terminal is a highly versatile connection solution designed for secure and reliable electrical connections. Specially crafted for wire sizes ranging from 16 to 14 AWG, this terminal features a #10 stud size and accommodates a stud diameter of 5 mm, ensuring a robust fit. With its closed barrel design and offset orientation, this terminal is ideal for applications requiring precise alignment and stable connection. The partially insulated structure provides essential safety while facilitating easy installation. Tin plating offers excellent conductivity and resistance to corrosion, making this terminal suitable for various industrial applications. Whether for commercial use or DIY projects, this terminal guarantees durability and high performance in any environment.
Designed for superior electrical performance and connectivity efficiency
Compatible with wire base materials like copper for enhanced conductivity
Single hole configuration simplifies installation while ensuring stability
Inspection slot feature aids in quick troubleshooting and maintenance
Low halogen content ensures safer operation and environmental compliance
Available in a packaging quantity of 1000 for large-scale applications
