RS PRO, 2 KAM Uninsulated Tubular Ring Terminal, 8 to 10 mm² Stud Size 1 AWG 1 AWG Wire Size, Silver

RS Stock No.:: 434-592
Brand:: RS PRO

RS PRO, 2 KAM Uninsulated Tubular Ring Terminal, 8 to 10 mm² Stud Size 1 AWG 1 AWG Wire Size, Silver

Subtotal (1 bag of 50 units)*

£81.65

(exc. VAT)

£97.98

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

4 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Bag(s)	Per Bag	Per unit*
1 +	£81.65	£1.633

*price indicative

RS Stock No.:: 434-592
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Product Type	Tubular Ring Terminal
	Series	2 KAM
	Insulation	Uninsulated
	Outer Ring Diameter	14mm
	Inner Ring Diameter	9.2mm
	Minimum Wire Size AWG	1 AWG
	Maximum Wire Size AWG	1 AWG
	Overall Length	62mm
	Stud Size	8 to 10 mm²
	Colour	Silver
	Contact Material	Aluminium
	Standards/Approvals	EN AW-1050 A, IECEX, ATEX

	Select all
	Brand RS PRO
	Product Type Tubular Ring Terminal
	Series 2 KAM
	Insulation Uninsulated
	Outer Ring Diameter 14mm
	Inner Ring Diameter 9.2mm
	Minimum Wire Size AWG 1 AWG
	Maximum Wire Size AWG 1 AWG
	Overall Length 62mm
	Stud Size 8 to 10 mm²
	Colour Silver
	Contact Material Aluminium
	Standards/Approvals EN AW-1050 A, IECEX, ATEX

RoHS Status: Exempt

COO (Country of Origin):: PL

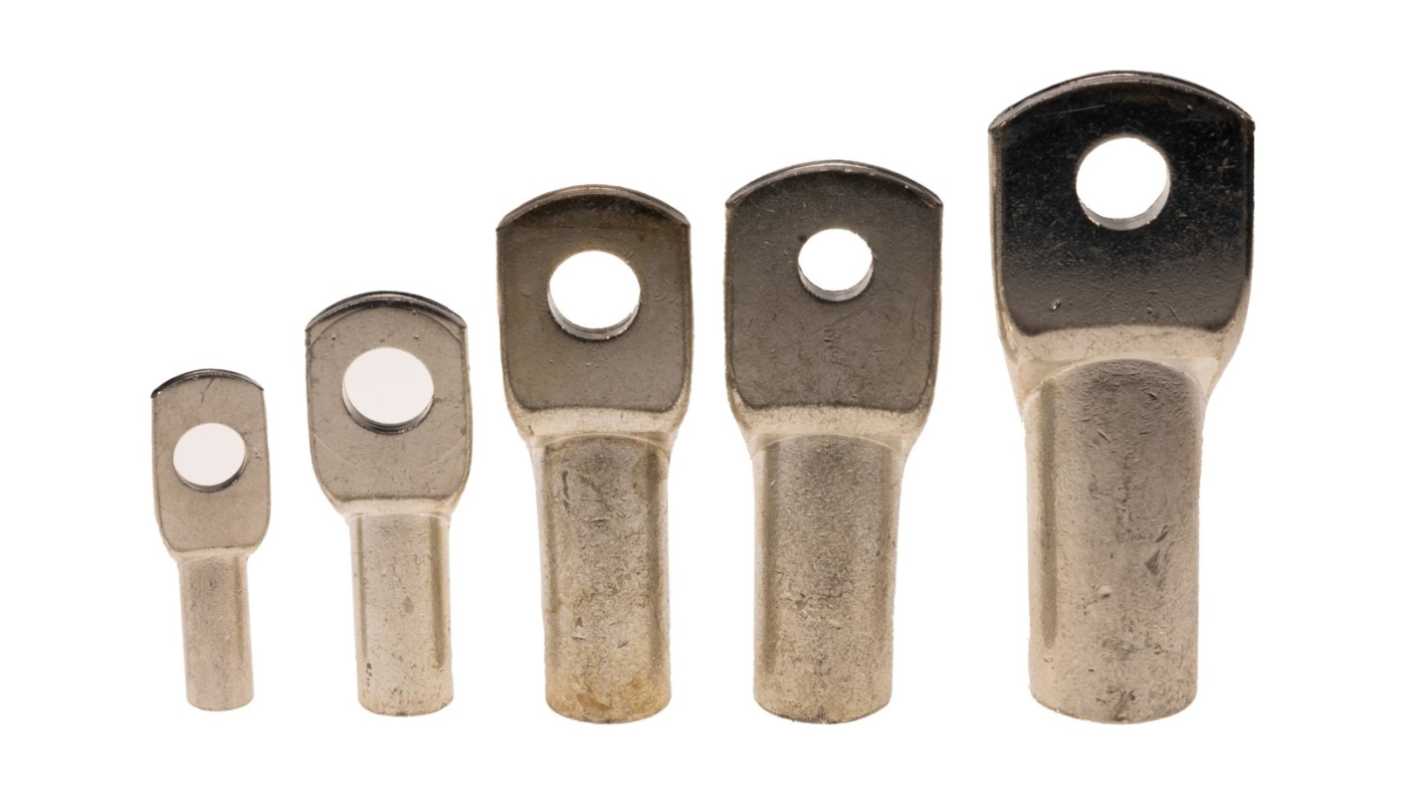

RS PRO Tubular Ring Terminal, Aluminium, Uninsulated

The RS PRO Tubular Ring Terminal is designed for connecting round and sector-shaped aluminium conductors for voltages up to 1KV. Its primary benefit is enhancing safety in electrical connections, making it ideal for various industrial applications.

Features and Benefits

Aluminium Terminals: Lightweight and corrosion-resistant, ensuring durability

Thin-Walled: Allows for easy crimping and installation

Designed for Mechanical Crimping: Provides secure and reliable connections

Uninsulated: Suitable for applications where insulation is not required

Easy Assembly: Simplifies the installation process, saving time and effort

Applications

Electrical installations

Industrial machinery

Power distribution systems

Additional Information

Colour: Silver

Contact Material: Aluminium

Overall Length: 62 mm

Outer Ring Diameter: 14 mm

Inner Ring Diameter: 9.2 mm

Maximum Wire Size: 35 mm²

Stud Size: 8.5 mm
