RS PRO, 2 KAM Uninsulated Tubular Ring Terminal, 10 mm Stud Size 1 AWG 1 AWG Wire Size, Silver

RS Stock No.:: 434-593
Brand:: RS PRO

RS PRO, 2 KAM Uninsulated Tubular Ring Terminal, 10 mm Stud Size 1 AWG 1 AWG Wire Size, Silver

Subtotal (1 bag of 20 units)*

£90.49

(exc. VAT)

£108.59

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

5 unit(s) shipping from 28 January 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Bag(s)	Per Bag	Per unit*
1 +	£90.49	£4.525

*price indicative

RS Stock No.:: 434-593
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Product Type	Tubular Ring Terminal
	Series	2 KAM
	Insulation	Uninsulated
	Outer Ring Diameter	14mm
	Inner Ring Diameter	9.2mm
	Maximum Wire Size AWG	1 AWG
	Minimum Wire Size AWG	1 AWG
	Overall Length	74mm
	Stud Size	10 mm
	Colour	Silver
	Contact Material	Aluminium
	Standards/Approvals	EN AW-1050 A

	Select all
	Brand RS PRO
	Product Type Tubular Ring Terminal
	Series 2 KAM
	Insulation Uninsulated
	Outer Ring Diameter 14mm
	Inner Ring Diameter 9.2mm
	Maximum Wire Size AWG 1 AWG
	Minimum Wire Size AWG 1 AWG
	Overall Length 74mm
	Stud Size 10 mm
	Colour Silver
	Contact Material Aluminium
	Standards/Approvals EN AW-1050 A

RoHS Status: Exempt

COO (Country of Origin):: PL

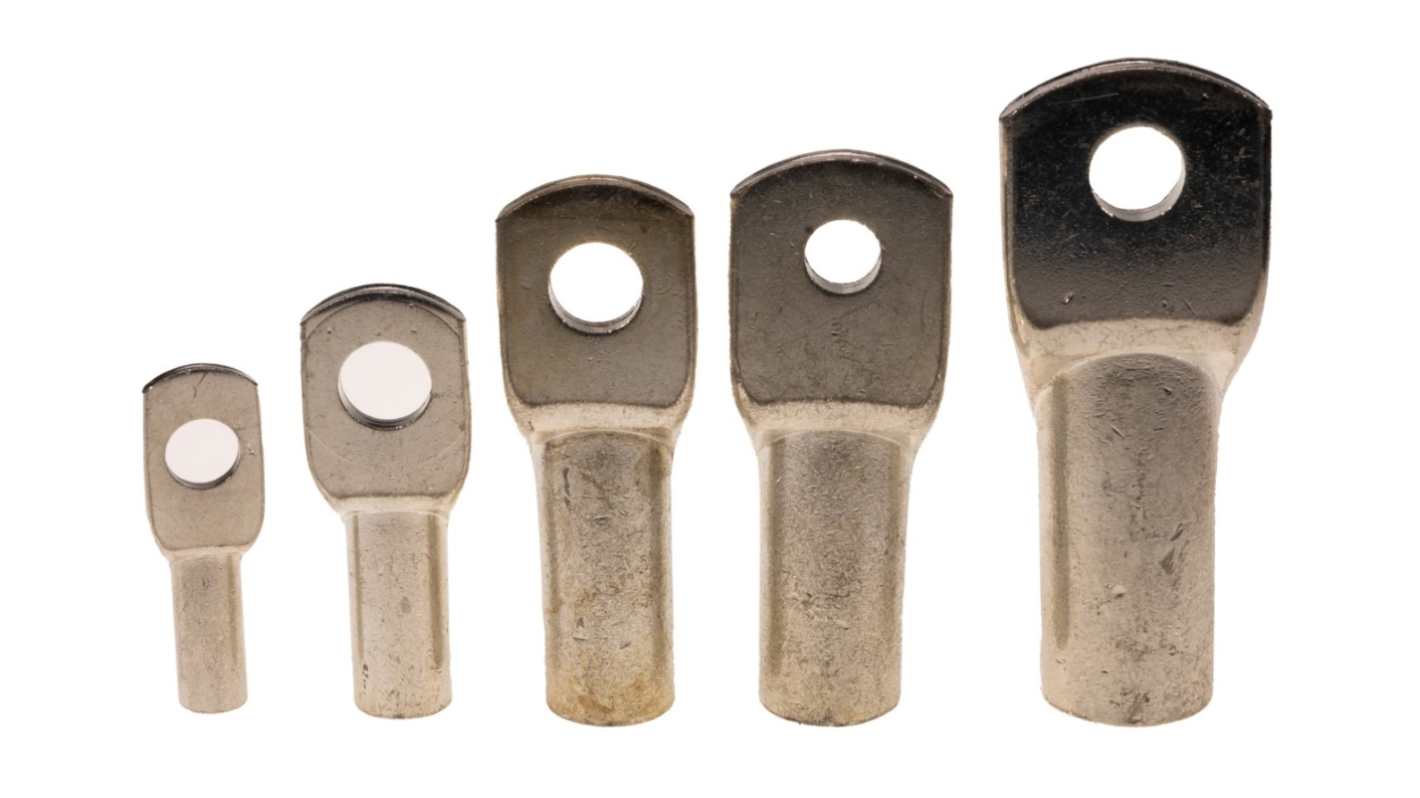

RS PRO Tubular Ring Terminal, Aluminium, Uninsulated

RS PRO Tubular Ring Terminals are designed for the secure connection of round and sector-shaped aluminium conductors, supporting voltages up to 1KV. These terminals are ideal for applications requiring reliable electrical connections with increased safety.

Features and Benefits

Aluminium Terminals: Lightweight and corrosion-resistant, ensuring durability and longevity.

Thin-Walled: Allows for easy crimping and installation in confined spaces.

Designed for Mechanical Crimping: Provides a secure and reliable connection.

Uninsulated: Suitable for applications where insulation is not required, offering flexibility in use.

Easy Assembly: Simplifies the installation process, saving time and effort.

Applications

Electrical installations

Industrial machinery

Automotive wiring

Power distribution systems

Additional Information

Colour: Silver

Contact Material: Aluminium

Overall Length: 73 mm

Outer Ring Diameter: 14 mm

Inner Ring Diameter: 9.2 mm

Maximum Wire Size: 50 mm²

Stud Size: 11 mm
