- RS Stock No.:
- 693-7725
- Mfr. Part No.:
- 09180347006
- Brand:
- HARTING
3 In stock - FREE next working day delivery available
Added
Price 1 Reel of 30 Metre(s)
£287.23
(exc. VAT)
£344.68
(inc. VAT)
Reel(s) | Per Reel | Per Metre* |
1 + | £287.23 | £9.574 |
*price indicative |
- RS Stock No.:
- 693-7725
- Mfr. Part No.:
- 09180347006
- Brand:
- HARTING
Legislation and Compliance
Product Details

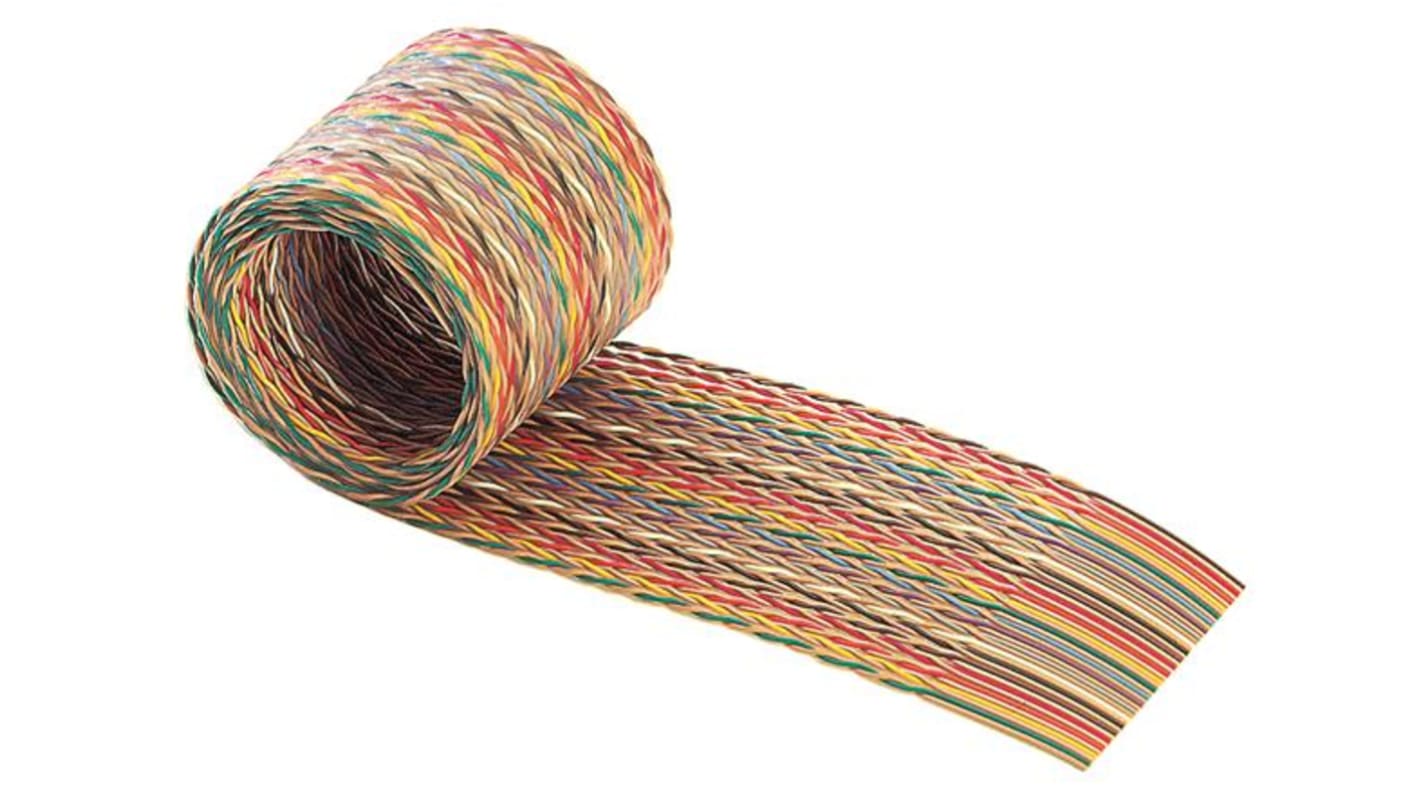

Flat cable twisted pair 1.27 mm
Twisted pair flat cable for insulation displacement termination
UL AWM-style 20 130
PVC
Copper tinned
UL VW1
UL AWM-style 20 130
PVC
Copper tinned
UL VW1
Approvals
UL
Ribbon cables provide a simple, quick and cost-effective solution to mass termination. They also have space and weight saving advantages over other wiring methods and are ideal for use on computers, peripherals, and interface units, audio and digital equipment. Colour coded ribbon cable with alternate twisted pair and parallel conductor sections. Twisting of adjacent conductors reduces crosstalk whilst the flat sections at regular intervals still facilitate easy termination.
Specifications
Attribute | Value |
---|---|
Ribbon Cable Type | Twisted |
Pitch | 1.27mm |
Terminated/Unterminated | Unterminated |
Number of Ways | 34 |
Screened/Unscreened | Unscreened |
American Wire Gauge | 28 AWG |
Length | 30m |
Width | 43.84 mm |
Number of Strands | 7 |
Sheath Colour | Multicoloured |
Maximum Operating Temperature | +105°C |
Voltage Rating | 300 V |
Conductor Strand Type | Stranded |
Minimum Operating Temperature | -20°C |
Capacitance | 49pF/m |
Operating Temperature Range | -20 → +105 °C |
Characteristic Impedance | 105 Ω |
