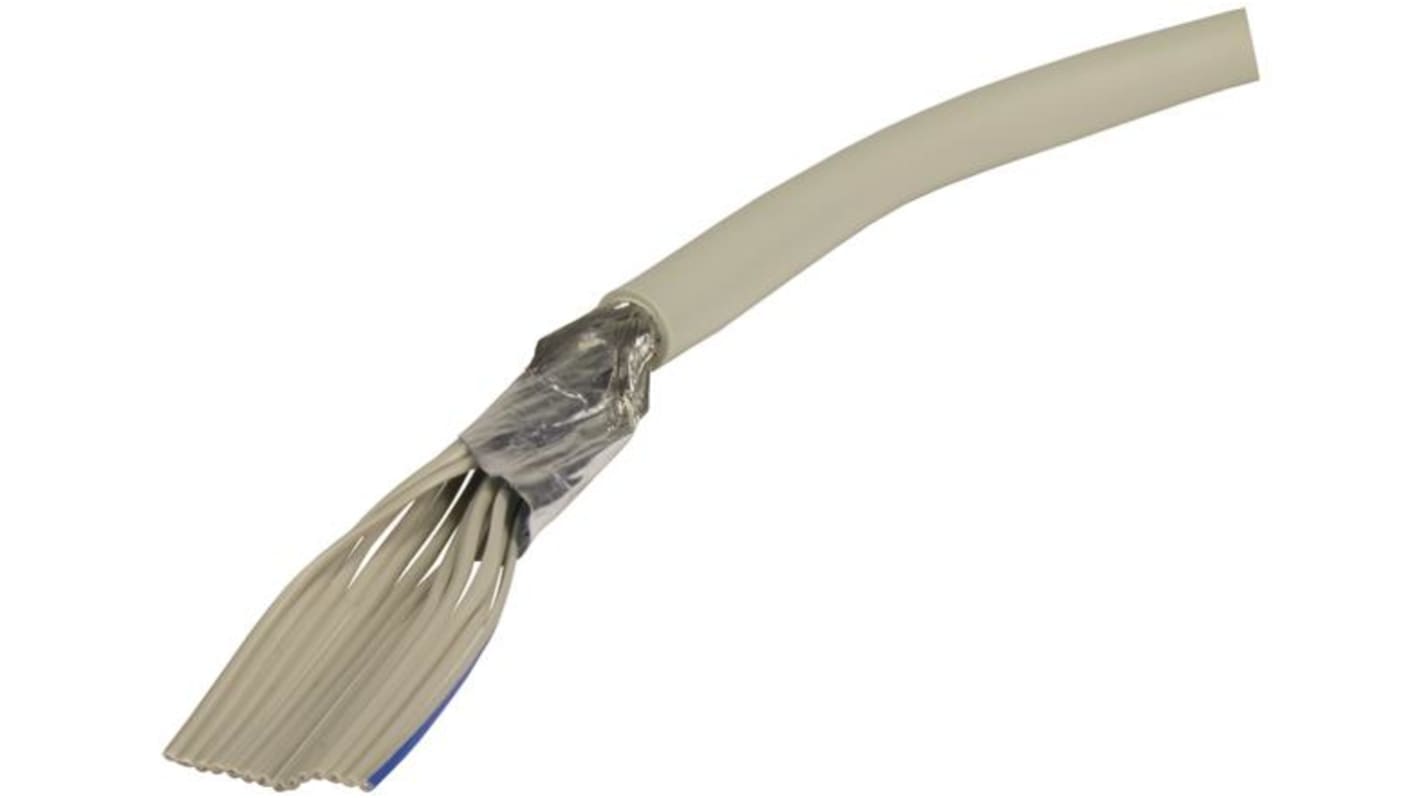

HARTING Round Ribbon Cable, 64-Way, 1.27mm Pitch, 30m Length
- RS Stock No.:
- 693-7781
- Mfr. Part No.:
- 09180647007
- Brand:
- HARTING
Subtotal (1 reel of 30 metres)*
£518.31
(exc. VAT)
£621.97
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £518.31 | £17.277 |
*price indicative
- RS Stock No.:
- 693-7781
- Mfr. Part No.:
- 09180647007
- Brand:
- HARTING
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Ribbon Cable Type | Round | |
| Pitch | 1.27mm | |
| Terminated/Unterminated | Unterminated | |
| Number of Ways | 64 | |
| Screened/Unscreened | Unscreened | |
| American Wire Gauge | 28 AWG | |
| Length | 30m | |
| Width | 81.28 mm | |
| Number of Strands | 7 | |
| Sheath Colour | Black | |
| Maximum Operating Temperature | +105°C | |
| Voltage Rating | 300 V | |
| Conductor Strand Type | Stranded | |
| Minimum Operating Temperature | -20°C | |
| Capacitance | 78.7pF/m | |
| Characteristic Impedance | 75 Ω | |
| Operating Temperature Range | -20 → +105 °C | |
Select all | ||
|---|---|---|
Brand HARTING | ||
Ribbon Cable Type Round | ||
Pitch 1.27mm | ||
Terminated/Unterminated Unterminated | ||
Number of Ways 64 | ||
Screened/Unscreened Unscreened | ||
American Wire Gauge 28 AWG | ||
Length 30m | ||
Width 81.28 mm | ||
Number of Strands 7 | ||
Sheath Colour Black | ||
Maximum Operating Temperature +105°C | ||
Voltage Rating 300 V | ||
Conductor Strand Type Stranded | ||
Minimum Operating Temperature -20°C | ||
Capacitance 78.7pF/m | ||
Characteristic Impedance 75 Ω | ||
Operating Temperature Range -20 → +105 °C | ||
- COO (Country of Origin):
- US
Round flat cable 1.27 mm
Round flat cable for insulation displacement termination
Edge mark on first conductor
UL listed PLCC CL2
CSA certified AWM FT-1
Edge mark on first conductor
UL listed PLCC CL2
CSA certified AWM FT-1
Approvals
UL, CSA
