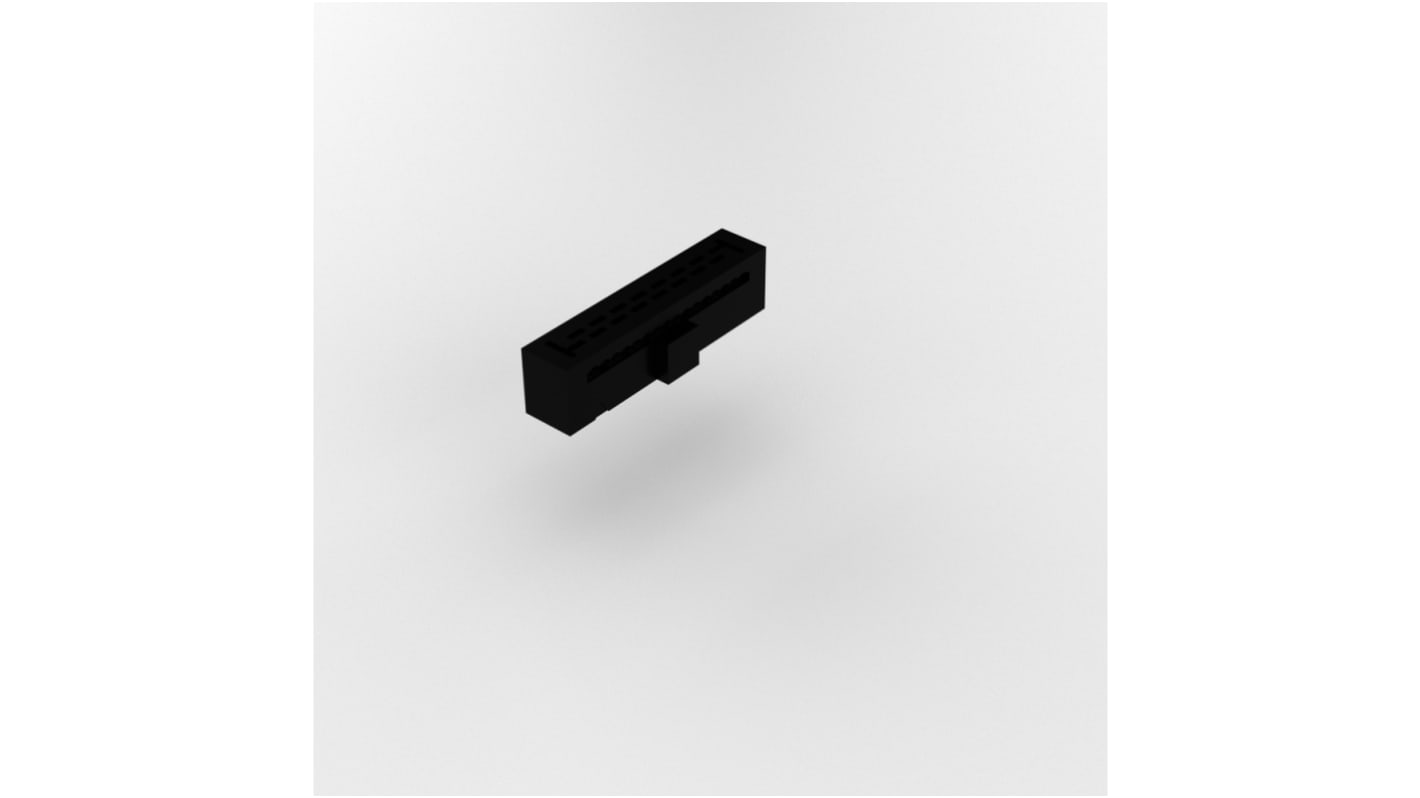

Samtec TCSD Series Flat IDC Socket, 2mm Pitch, Tiger Eye IDC to Tiger Eye IDC
- RS Stock No.:
- 180-1865
- Mfr. Part No.:
- TCSD-08-01-N
- Brand:
- Samtec
5 In stock - FREE next working day delivery available
Added
Price Each
£5.97
(exc. VAT)
£7.16
(inc. VAT)
| Units | Per unit |
| 1 - 24 | £5.97 |
| 25 - 99 | £5.18 |
| 100 - 249 | £4.16 |
| 250 - 499 | £3.51 |
| 500 + | £3.33 |
- RS Stock No.:
- 180-1865
- Mfr. Part No.:
- TCSD-08-01-N
- Brand:
- Samtec
Technical Reference
Legislation and Compliance
Product Details
2.00 mm (.0787") pitch
High-reliability Tiger Eye™ contacts
All common pin counts from 3 to 25
Optional strain relief
Wide variety of wiring options including reverses, daisy chains, etc.
Mating shrouded terminal strips and ejector header
High-reliability Tiger Eye™ contacts
All common pin counts from 3 to 25
Optional strain relief
Wide variety of wiring options including reverses, daisy chains, etc.
Mating shrouded terminal strips and ejector header
Specifications
Attribute | Value |
|---|---|
| Ribbon Cable Type | Flat |
| Connector 1 | Tiger Eye IDC |
| Connector 2 | Tiger Eye IDC |
| Pitch | 2mm |
| Terminated/Unterminated | Terminated |
| Connector 1 Gender | Female |
| Connector 2 Gender | Female |
| American Wire Gauge | 28 AWG |
| Series | TCSD |
| Operating Temperature Range | -40 → +105 °C |
| Standards Met | RoHS Compliant |
| Current Rating | 2.8 A |
