3M 3539 Series Ribbon Cable, Stranded, 1.27 mm Pitch, 20
- RS Stock No.:
- 622-027
- Mfr. Part No.:
- 3539/20
- Brand:
- 3M
Subtotal (1 pack of 5 units)*
£588.30
(exc. VAT)
£705.96
(inc. VAT)
Stock information currently inaccessible - Please check back later
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £588.30 | £117.66 |
*price indicative
- RS Stock No.:
- 622-027
- Mfr. Part No.:
- 3539/20
- Brand:
- 3M
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Cable Type | Stranded | |
| Product Type | Ribbon Cable | |
| Pitch | 1.27mm | |
| Voltage | 300V | |
| Screened/Unscreened | Unscreened | |
| American Wire Gauge | 28AWG | |
| Number of Conductors | 20 | |
| Jacket Material | Polyvinyl Chloride | |
| Series | 3539 | |
| Conductor Type | Stranded | |
| Standards/Approvals | RoHS 2005/95/EC, SJ/T11364-2006, SJ/T11363-2006, AWM 2651, UL FilNo. E42769 | |
| Hi-Flex | Yes | |
| Jacket Colour | Grey | |
| Fire Behaviour | FT1 (Canada), VW-1 (Usa) | |
| Minimum Operating Temperature | -20°C | |
| Conductor Material | Tin Copper Wire | |
| Maximum Operating Temperature | 105°C | |
| Select all | ||
|---|---|---|
Brand 3M | ||
Cable Type Stranded | ||
Product Type Ribbon Cable | ||
Pitch 1.27mm | ||
Voltage 300V | ||
Screened/Unscreened Unscreened | ||
American Wire Gauge 28AWG | ||
Number of Conductors 20 | ||
Jacket Material Polyvinyl Chloride | ||
Series 3539 | ||
Conductor Type Stranded | ||
Standards/Approvals RoHS 2005/95/EC, SJ/T11364-2006, SJ/T11363-2006, AWM 2651, UL FilNo. E42769 | ||
Hi-Flex Yes | ||
Jacket Colour Grey | ||
Fire Behaviour FT1 (Canada), VW-1 (Usa) | ||
Minimum Operating Temperature -20°C | ||
Conductor Material Tin Copper Wire | ||
Maximum Operating Temperature 105°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- US

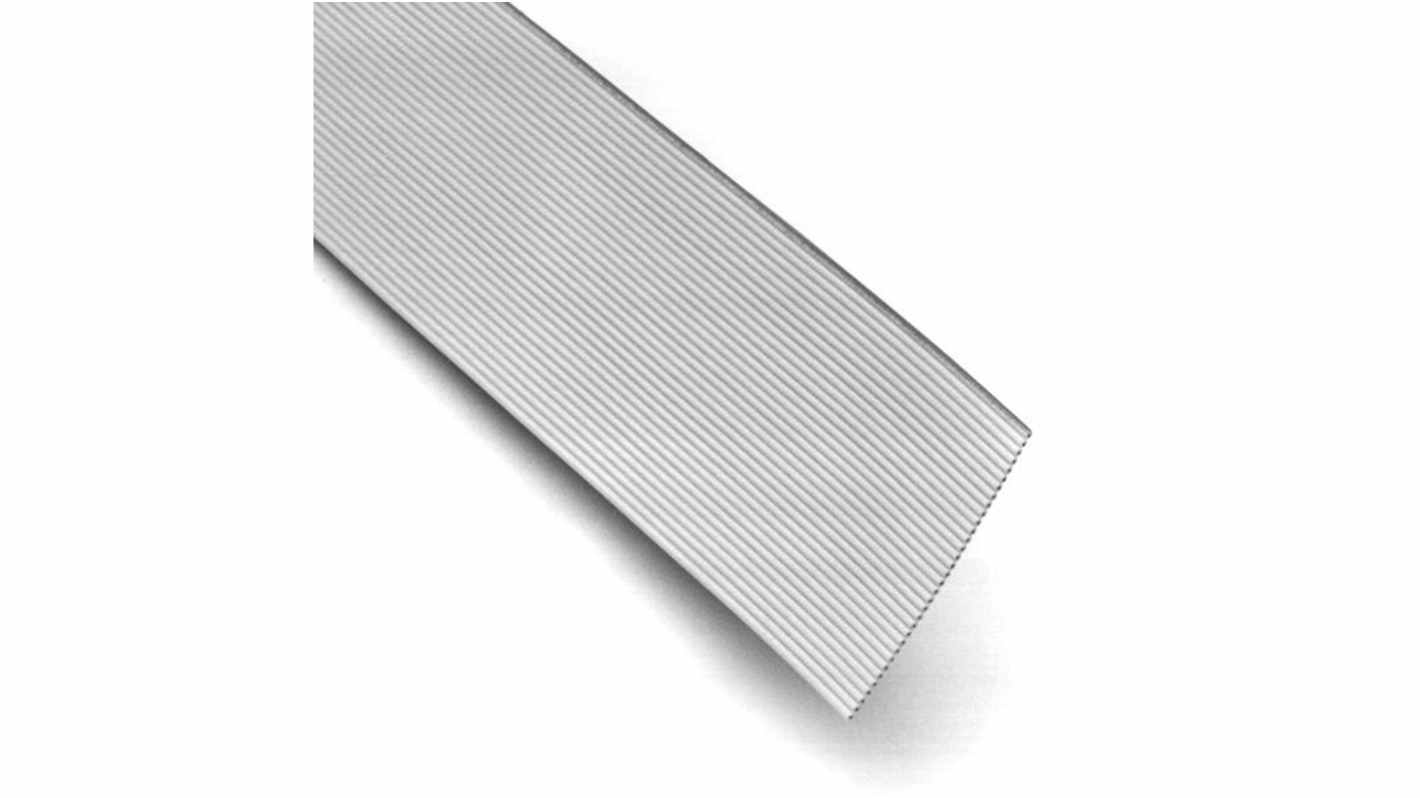

The 3M Medium Flex Life Cable is a flat cable that brings durability and reliability to a range of applications. With a flex life of 10 million cycles at a 1 3/4 in. diameter. This cable is built to endure repeated bending and twisting without compromising performance. It features 19 strands of tinned copper, which allow for extended flex life. Its PVC insulation material and non-pertinent jacket material further enhance its performance and longevity.
Great for tight spaces and complex routing requirements
Zippable for branching or discrete termination
Grey colour
RoHS compliant
