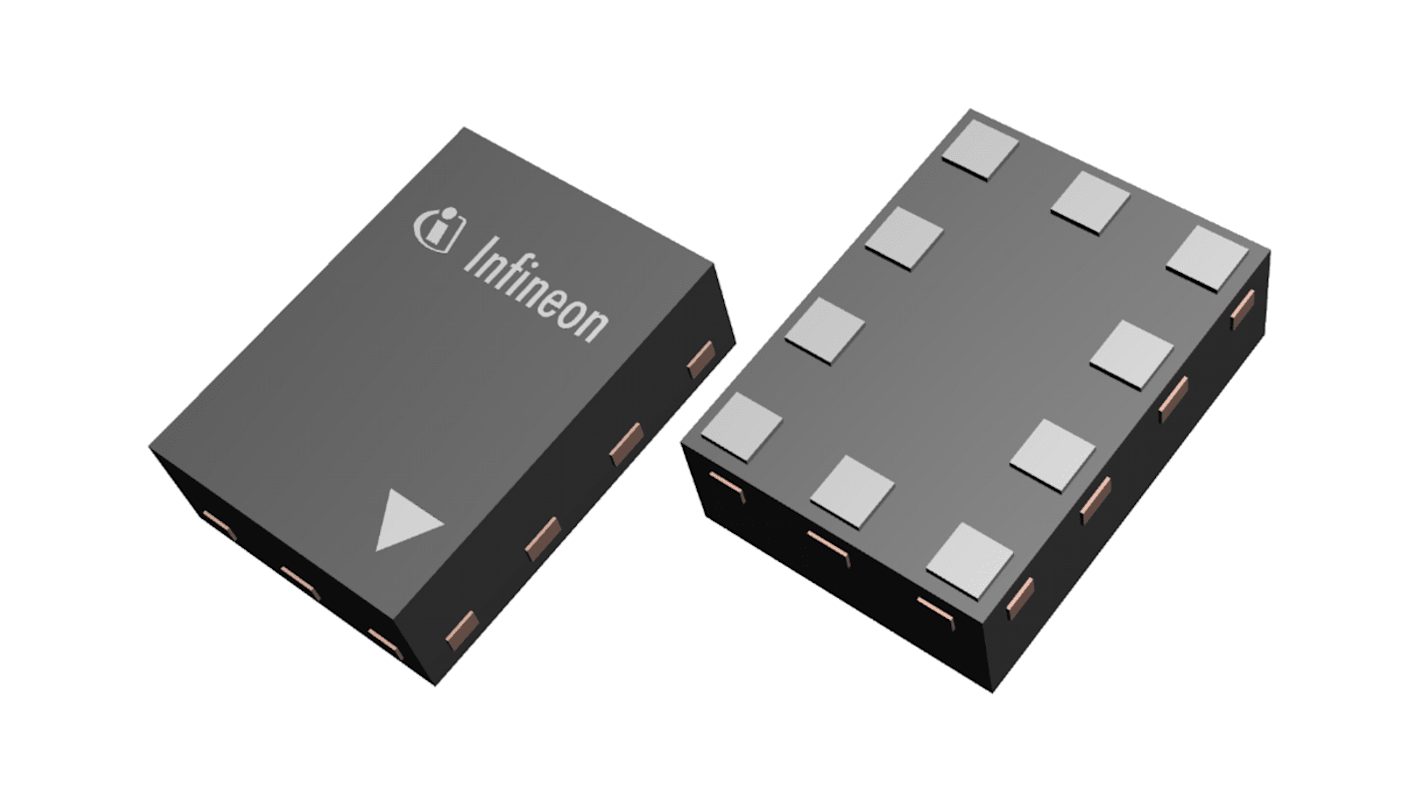

Infineon BGSA149MN10E6327XTSA1 RF Switch, 10-Pin TSNP-10-9
- RS Stock No.:
- 262-5818
- Mfr. Part No.:
- BGSA149MN10E6327XTSA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 pack of 10 units)*
£4.42
(exc. VAT)
£5.30
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 11,850 unit(s) shipping from 19 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | £0.442 | £4.42 |
| 100 - 240 | £0.301 | £3.01 |
| 250 - 490 | £0.284 | £2.84 |
| 500 - 990 | £0.26 | £2.60 |
| 1000 + | £0.243 | £2.43 |
*price indicative
- RS Stock No.:
- 262-5818
- Mfr. Part No.:
- BGSA149MN10E6327XTSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Technology | RF IC | |
| Product Type | RF Switch | |
| Sub Type | Antenna Tuner | |
| Package Type | TSNP-10-9 | |
| Pin Count | 10 | |
| Mount Type | Surface | |
| Interface Type | MIPI | |
| Minimum Supply Voltage | 1.2V | |
| Maximum Supply Voltage | 1.8V | |
| Height | 0.375mm | |
| Length | 1.3mm | |
| Width | 0.95 mm | |
| Standards/Approvals | RoHS | |
| Series | BGSA149MN10 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Technology RF IC | ||
Product Type RF Switch | ||
Sub Type Antenna Tuner | ||
Package Type TSNP-10-9 | ||
Pin Count 10 | ||
Mount Type Surface | ||
Interface Type MIPI | ||
Minimum Supply Voltage 1.2V | ||
Maximum Supply Voltage 1.8V | ||
Height 0.375mm | ||
Length 1.3mm | ||
Width 0.95 mm | ||
Standards/Approvals RoHS | ||
Series BGSA149MN10 | ||
Automotive Standard No | ||
The Infineon single pole four throws SP4T antenna tuning switch is optimized for RF applications up to 7.125GHz. It is made of 4 low ON resistance/ low OFF capacitance series switches and 4 shunt to ground switches enabling on demand open reflective or short reflective OFF ports behaviour.
RF operating voltage handling 50 V in OFF state
MIPI RFFE 2.1 control interface
Support both 1.8V and 1.2V VIO operation
Small form factor
