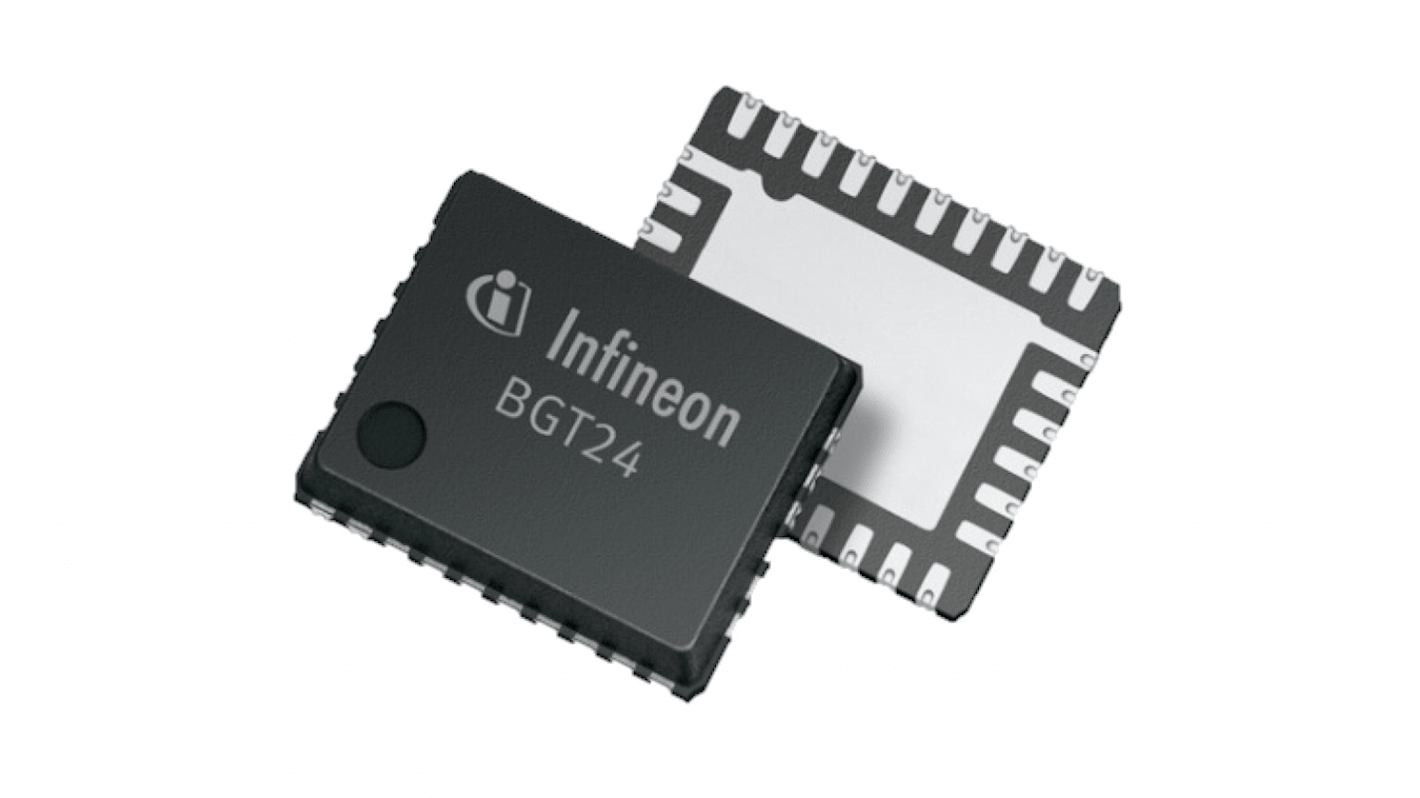

Infineon RF Transceiver, 9-Pin VQFN-32-9
- RS Stock No.:
- 261-3961
- Mfr. Part No.:
- BGT24MTR12E6327XUMA1
- Brand:
- Infineon
Bulk discount available
View bulk pricing optionsSubtotal (1 reel of 1000 units)*
£8,250.00
(exc. VAT)
£9,900.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 - 1000 | £8.25 | £8,250.00 |
| 2000 - 2000 | £8.039 | £8,039.00 |
| 3000 + | £7.838 | £7,838.00 |
*price indicative
- RS Stock No.:
- 261-3961
- Mfr. Part No.:
- BGT24MTR12E6327XUMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Technology | Transceiver | |
| Product Type | RF Transceiver | |
| Sub Type | Radar Sensor | |
| Package Type | VQFN-32-9 | |
| Pin Count | 9 | |
| Mount Type | Surface | |
| Interface Type | MMIC | |
| Operating Band 1 Frequency | 100kHz | |
| Minimum Supply Voltage | 3.135V | |
| Maximum Supply Voltage | 3.465V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Height | 0.9mm | |
| Series | BGT24MTR12 | |
| Length | 4.5mm | |
| Standards/Approvals | RoHS | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Technology Transceiver | ||
Product Type RF Transceiver | ||
Sub Type Radar Sensor | ||
Package Type VQFN-32-9 | ||
Pin Count 9 | ||
Mount Type Surface | ||
Interface Type MMIC | ||
Operating Band 1 Frequency 100kHz | ||
Minimum Supply Voltage 3.135V | ||
Maximum Supply Voltage 3.465V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Height 0.9mm | ||
Series BGT24MTR12 | ||
Length 4.5mm | ||
Standards/Approvals RoHS | ||
Automotive Standard No | ||
The Infineon silicon germanium transceiver MMIC for signal generation and reception. It is based on a 24 GHz fundamental voltage controlled oscillator. A RC poly phase filter is used for LO quadrature phase generation of the homodyne quadrature down conversion mixer. Output power sensors as well as a temperature sensor are implemented for monitoring purposes.
On chip power and temperature sensors
Single ended RF input terminals
