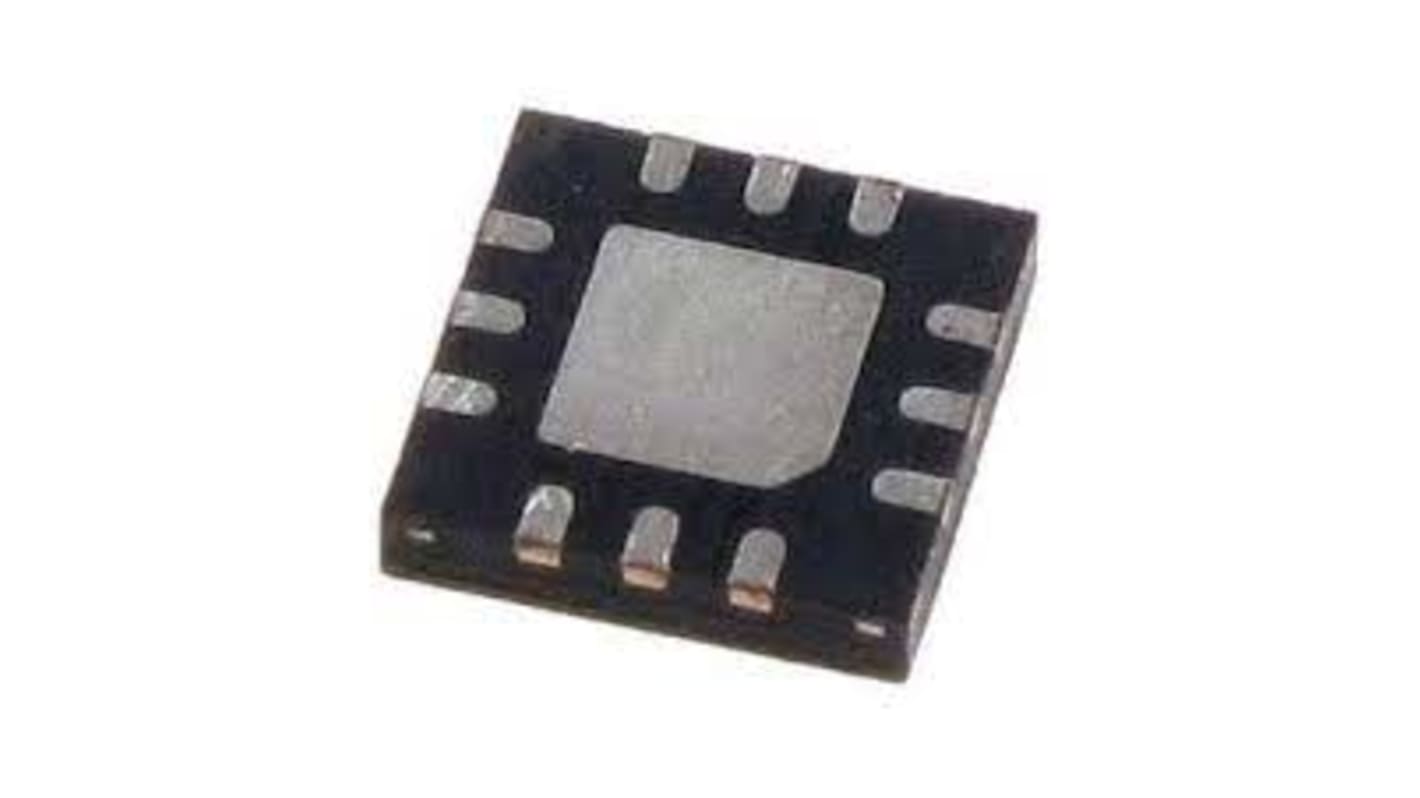

Renesas Electronics F2972NEGK8 SPDT RF Switch, 12-Pin TQFN

View all RF ICs

Subtotal (1 reel of 3000 units)*

£3,384.00

(exc. VAT)

£4,062.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 23 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
3000 +£1.128£3,384.00

*price indicative

RS Stock No.:
250-3503
Mfr. Part No.:
F2972NEGK8
Brand:
Renesas Electronics
Find similar products by selecting one or more attributes.
Select all

Brand

Renesas Electronics

Package Type

TQFN

Pin Count

12

Mounting Type

Surface Mount

Dimensions

2 x 2mm

The Renesas Electronics single-pole double-throw (SP2T) reflective RF switch features high linearity and wide bandwidth. This device is optimized from 5MHz to 1.8GHz to support downstream cable modem future migration for DOCSIS 3.1 applications, and operates at up to 10GHz to support a multitude of wireless RF applications. Superb performance is achieved when used in either 50Ω or 75Ω terminating impedance applications. Switch uses a single positive supply voltage of either +3.3V or +5.0V and is compatible with either 1.8V or 3.3V control logic.

This switch provides extremely low insertion loss across the entire bandwidth while providing superb distortion performance
Switch is optimized for DOCSIS 3.1 applications up to 1.8GHz
It is optimized for Wi-Fi applications up to 5.9GHz
It supports 1.8V and 3.3V compatible control logic
It consists of 2mm x 2mm 12-pin TQFN package
