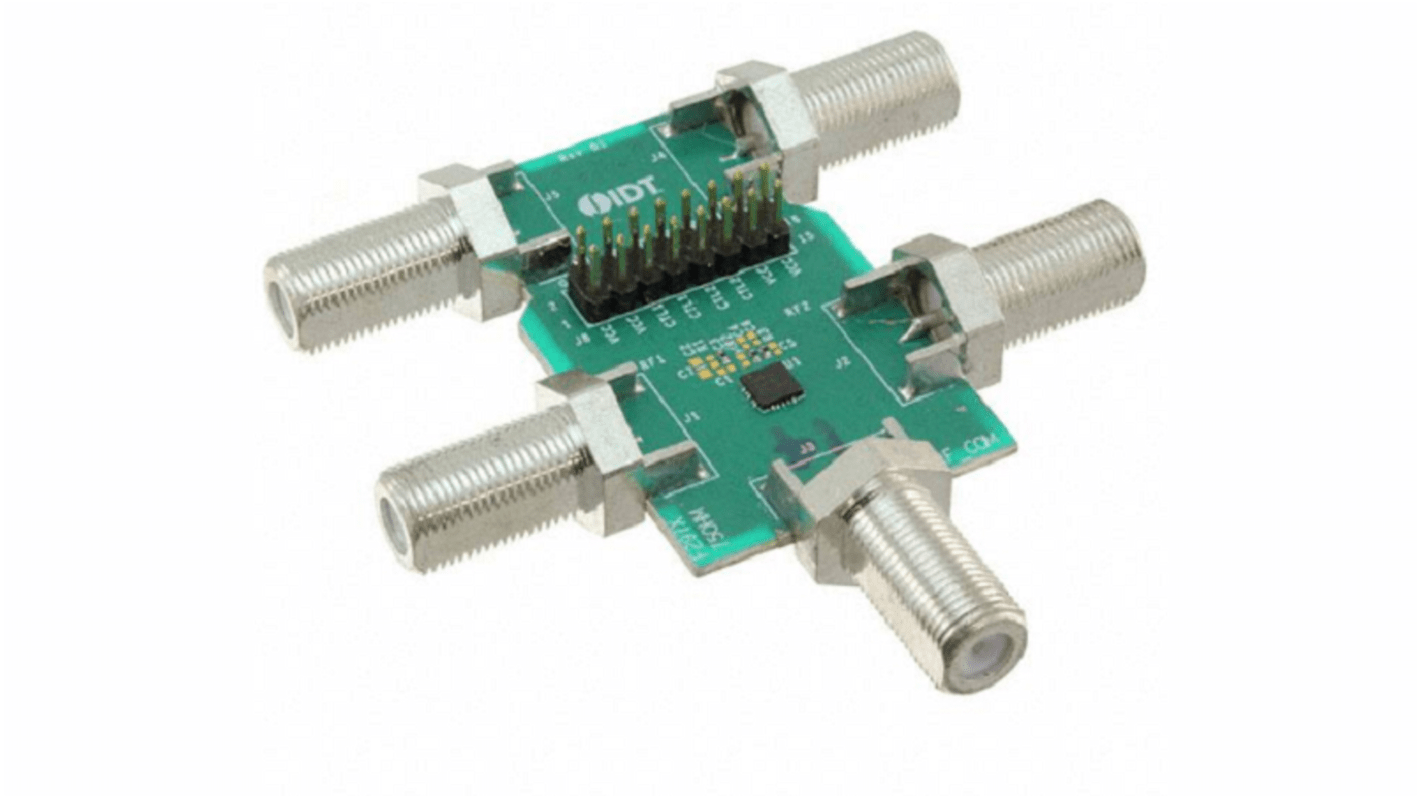

The Renesas Electronic evaluation board enables easy RF evaluation of the product. “Thru” calibration connectors are conveniently located on the eval board to simplify the calibration process prior to making any RF measurements. The RF through measurement (RF1 to RF2) can be made by applying the correct control logic voltage to the control pins as outlined in the datasheet. DC power, ground and the control voltages are applied to the pin header.

All bias and logic controls are applied to the appropriate pins of the pin header located on the evaluation board
