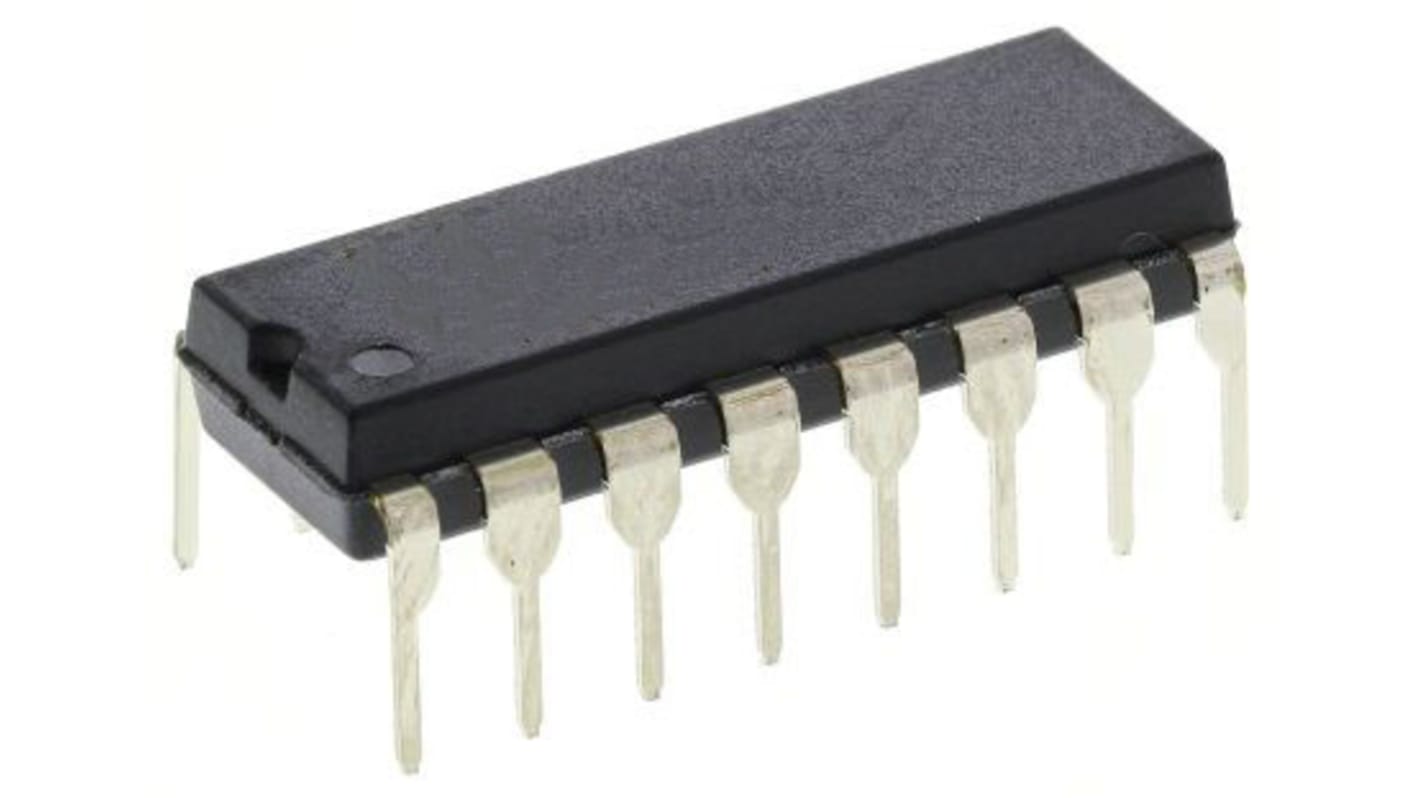

Maxim Integrated DS1315-5+, Real Time Clock 8 bit D:DM:M:Y, 16-Pin PDIP Through Hole
- RS Stock No.:
- 190-5155
- Mfr. Part No.:
- DS1315-5+
- Brand:
- Maxim Integrated
Bulk discount available
Subtotal (1 unit)*
£20.24
(exc. VAT)
£24.29
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 10 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 - 9 | £20.24 |
| 10 - 24 | £18.62 |
| 25 - 99 | £17.83 |
| 100 - 249 | £15.71 |
| 250 + | £14.92 |
*price indicative
- RS Stock No.:
- 190-5155
- Mfr. Part No.:
- DS1315-5+
- Brand:
- Maxim Integrated
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Maxim Integrated | |
| Product Type | Real Time Clock | |
| Date Format | D:DM:M:Y | |
| Time Format | HH:MM:SS:hh | |
| Mount Type | Through Hole | |
| Package Type | PDIP | |
| Interface Type | Phantom Clock | |
| Pin Count | 16 | |
| RTC Memory Size | 8bit | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 70°C | |
| Series | DS1315 | |
| Width | 7.87 mm | |
| Length | 19.43mm | |
| Height | 4.45mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Minimum Supply Voltage | 4.5V | |
| Maximum Supply Voltage | 5.5V | |
| Select all | ||
|---|---|---|
Brand Maxim Integrated | ||
Product Type Real Time Clock | ||
Date Format D:DM:M:Y | ||
Time Format HH:MM:SS:hh | ||
Mount Type Through Hole | ||
Package Type PDIP | ||
Interface Type Phantom Clock | ||
Pin Count 16 | ||
RTC Memory Size 8bit | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 70°C | ||
Series DS1315 | ||
Width 7.87 mm | ||
Length 19.43mm | ||
Height 4.45mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
Minimum Supply Voltage 4.5V | ||
Maximum Supply Voltage 5.5V | ||
Real-Time Clock Keeps Track of Hundredths of Seconds, Seconds, Minutes, Hours, Days, Date of the Month, Months, and Years
Automatic Leap Year Correction Valid Up to 2100
No Address Space Required to Communicate with RTC
Provides Nonvolatile Controller Functions for Battery Backup of SRAM
Supports Redundant Battery Attachment for High-Reliability Applications
Full ±10% VCC Operating Range
+3.3V or +5V Operation
Industrial (–40°C to +85°C) Operating Temperature Ranges Available
