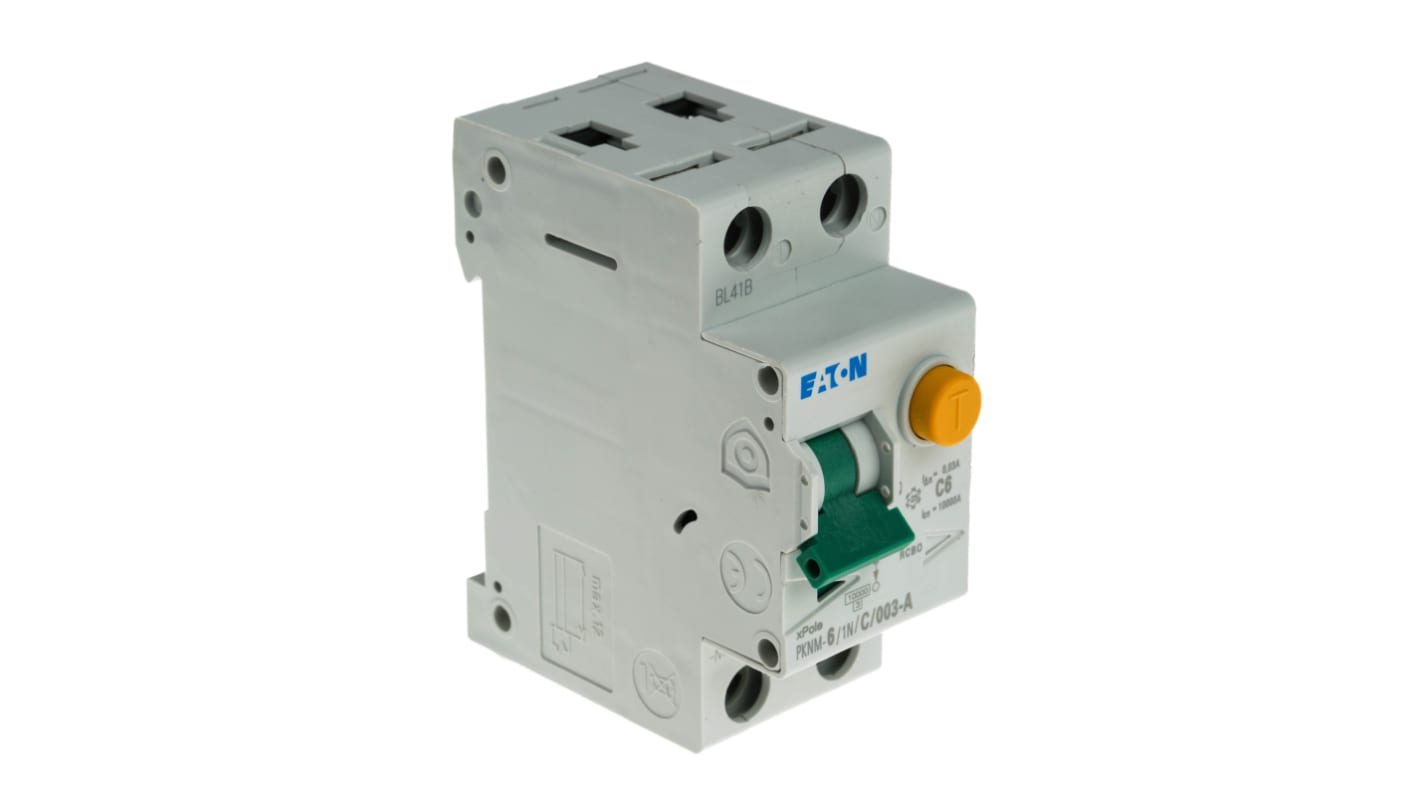

Eaton RCD, 6A, 2 Pole, 30mA, Type C, 230V
- RS Stock No.:
- 922-8692
- Mfr. Part No.:
- 236022 PKNM-6/1N/C/003-A-MW
- Brand:
- Eaton
Subtotal (1 unit)*
£111.48
(exc. VAT)
£133.78
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship
- Plus 7 unit(s) ready to ship from another location
- Plus 9 unit(s) shipping from 04 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £111.48 |
*price indicative
- RS Stock No.:
- 922-8692
- Mfr. Part No.:
- 236022 PKNM-6/1N/C/003-A-MW
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Circuit Breaker Type | RCD | |
| Current Rating | 6A | |
| Number of Poles | 2 | |
| Range | PKNM | |
| Trip Sensitivity | 30mA | |
| Tripping Characteristics | Type C | |
| Voltage Rating | 230V | |
| Break Time | Instantaneous | |
| Mounting Style | DIN Rail Mount | |
| Rated AC Voltage | 230V | |
| Application | Commercial, Residential | |
| Overall Dimensions | 80 x 35 x 76mm | |
| Earth Leakage Protection Type | A | |
| Reset Actuator Type | Toggle Switch | |
| Overall Length | 80mm | |
| Terminal Contact Type | Screw | |
| Overall Depth | 80mm | |
| Overall Width | 35mm | |
| Breaking Capacity at Maximum Voltage Rating | 10 kA | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Circuit Breaker Type RCD | ||
Current Rating 6A | ||
Number of Poles 2 | ||
Range PKNM | ||
Trip Sensitivity 30mA | ||
Tripping Characteristics Type C | ||
Voltage Rating 230V | ||
Break Time Instantaneous | ||
Mounting Style DIN Rail Mount | ||
Rated AC Voltage 230V | ||
Application Commercial, Residential | ||
Overall Dimensions 80 x 35 x 76mm | ||
Earth Leakage Protection Type A | ||
Reset Actuator Type Toggle Switch | ||
Overall Length 80mm | ||
Terminal Contact Type Screw | ||
Overall Depth 80mm | ||
Overall Width 35mm | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
- COO (Country of Origin):
- RO
Eaton RCBO, 440V Insulation Voltage, DIN Rail Mounting - PKNM Series - 236022 PKNM-6/1N/C/003-A-MW
Block hazards from sneaking up on your circuits using this RCBO from Eaton. It steps in and cuts power to your machinery immediately when an overcurrent or short-circuit occurs, preventing damage to your equipment and electric shocks to your workforce. Type-C tripping characteristics indicate it trips when the supply current is five to 10 times the full load current of the circuit. This makes it a practical choice to install in devices where high inrushes are a regular feature. The breaker's terminals accommodate solid-core cable sizes between 1 and 25mm², making it a versatile solution. You'll find this unit used in IT and lighting systems.
Features & Benefits
• Impulse withstand voltage rating of 4kV allows it to resist sudden power spikes for optimal safety
• Performs reliably in an operating temperature range between -25°C and +40°C
• Maximum rated insulation voltage of 440V offers protection against electric shocks caused by current leakage
• IP20 rating means it's finger-safe and resistant to objects that are larger than 12mm
• Performs reliably in an operating temperature range between -25°C and +40°C
• Maximum rated insulation voltage of 440V offers protection against electric shocks caused by current leakage
• IP20 rating means it's finger-safe and resistant to objects that are larger than 12mm
What's the current rating of this RCBO?
The device has a current rating of 6A, so it's best suited for use in medium-powered systems.
Note
Eaton formerly known as Moeller
