Schneider Electric Multi 9 Series Residual Current Device, 63A, 3-Pole, 300 mA, Type A 415V ac
- RS Stock No.:
- 510-6888
- Mfr. Part No.:
- 19018
- Brand:
- Schneider Electric

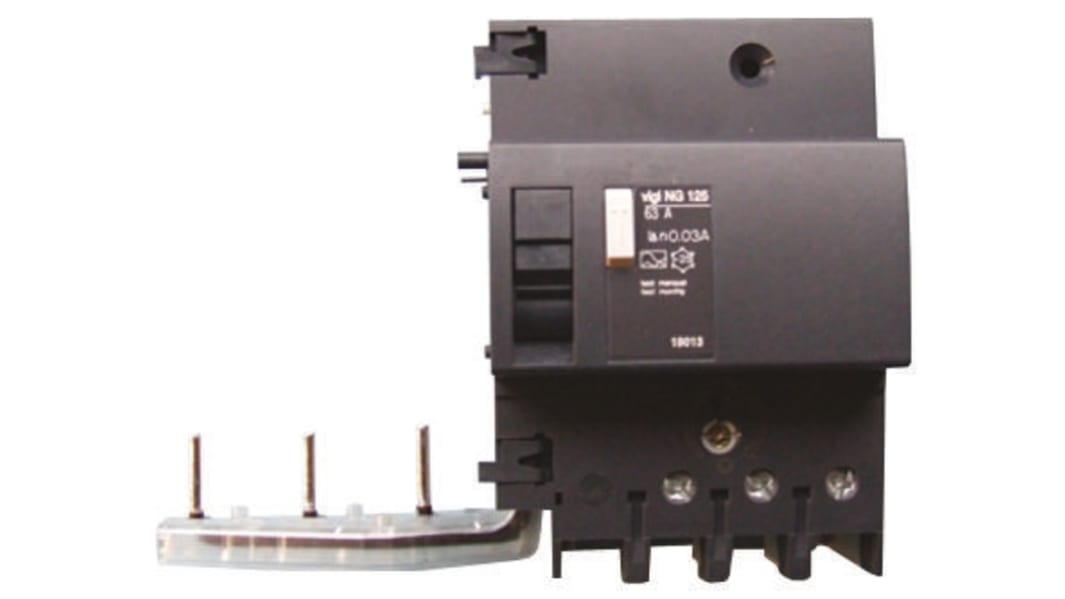

Image representative of range
Subtotal (1 unit)*
£552.70
(exc. VAT)
£663.24
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £552.70 |
*price indicative
- RS Stock No.:
- 510-6888
- Mfr. Part No.:
- 19018
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Residual Current Device | |
| Current Rating | 63A | |
| Number of Poles | 3 | |
| Range | Multi9 | |
| Series | Multi 9 | |
| Trip Sensitivity | 300mA | |
| Tripping Characteristics | Type A | |
| Mount Type | DIN Rail | |
| Standards/Approvals | IEC 60947-2, IEC/EN 61009-2-1, REACH, RoHS | |
| Terminal Type | Tunnel | |
| Width | 189mm | |
| Depth | 73mm | |
| Height | 118mm | |
| Break Time | Instantaneous | |
| Reset Actuator Type | Toggle Switch | |
| Tripping Mechanism | Thermal Magnetic | |
| Earth Leakage Protection Type | Type A | |
| Application | Residual Current Device | |
| Rated AC Voltage | 415V ac | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Residual Current Device | ||
Current Rating 63A | ||
Number of Poles 3 | ||
Range Multi9 | ||
Series Multi 9 | ||
Trip Sensitivity 300mA | ||
Tripping Characteristics Type A | ||
Mount Type DIN Rail | ||
Standards/Approvals IEC 60947-2, IEC/EN 61009-2-1, REACH, RoHS | ||
Terminal Type Tunnel | ||
Width 189mm | ||
Depth 73mm | ||
Height 118mm | ||
Break Time Instantaneous | ||
Reset Actuator Type Toggle Switch | ||
Tripping Mechanism Thermal Magnetic | ||
Earth Leakage Protection Type Type A | ||
Application Residual Current Device | ||
Rated AC Voltage 415V ac | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
Vigi differential units for NG125 circuit breakers.
Differential units for NG 125 series circuit breakers.
These blocks are mounted to the right of the circuit breaker.
Fault displayed on front panel by mechanical indicator light.
Adjustable sensitivity of the differential units to 4 values: 300, 500, 1000 and 300 mA.
