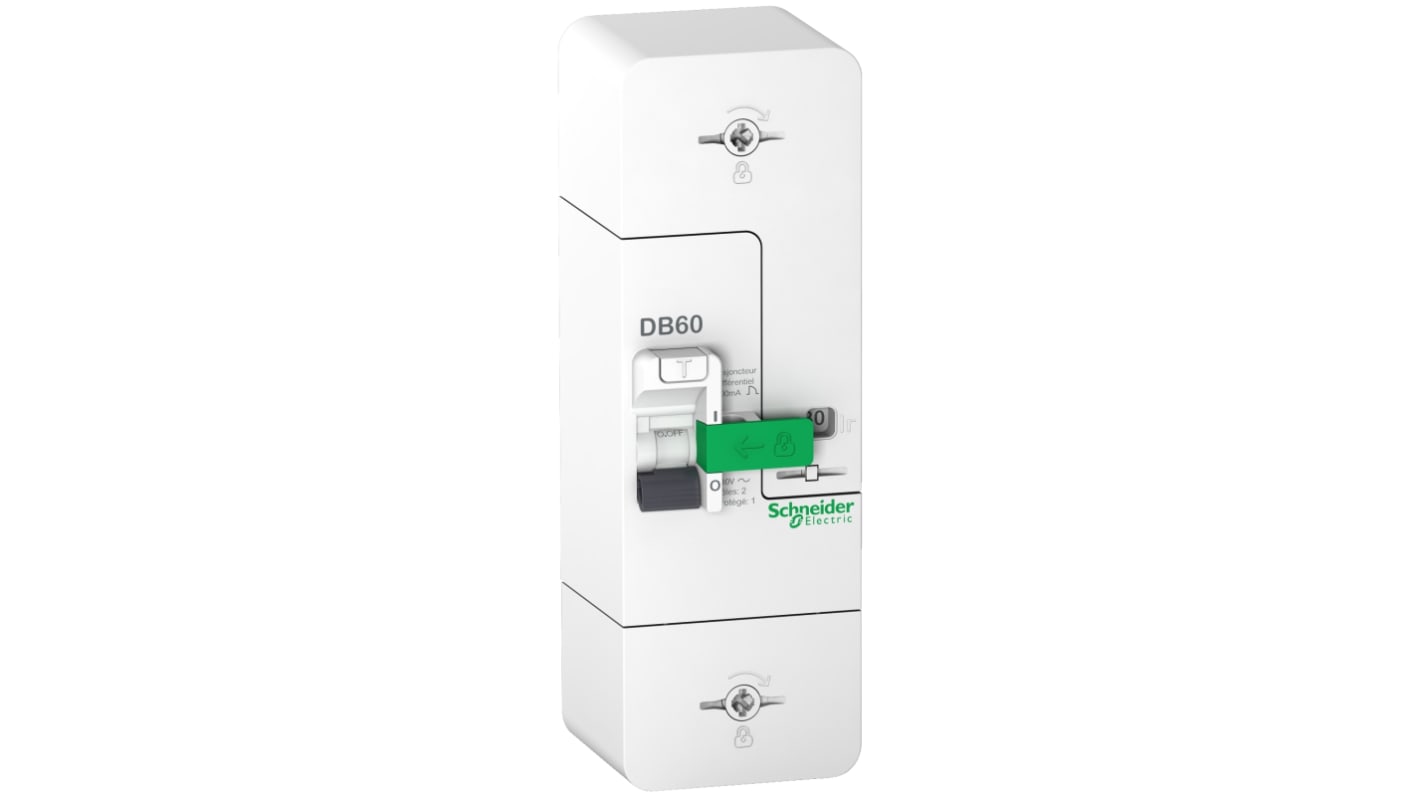

Schneider Electric Resi9 DB Series Residual Current Circuit Breaker, 60A, 1-Pole, 500 mA, Type A, 2.4 kA 250V ac
- RS Stock No.:
- 276-8944
- Mfr. Part No.:
- R9FS660
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£108.09
(exc. VAT)
£129.71
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 5 unit(s) shipping from 13 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £108.09 |
*price indicative
- RS Stock No.:
- 276-8944
- Mfr. Part No.:
- R9FS660
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Residual Current Circuit Breaker | |
| Current Rating | 60A | |
| Number of Poles | 1 | |
| Series | Resi9 DB | |
| Range | Resi9 | |
| Trip Sensitivity | 500mA | |
| Tripping Characteristics | Type A | |
| Terminal Type | 30° Orientational Terminal | |
| Standards/Approvals | NF C 62-411 | |
| Width | 71mm | |
| Depth | 73mm | |
| Height | 209mm | |
| Breaking Capacity | 2.4kA | |
| Reset Actuator Type | Toggle | |
| Tripping Mechanism | Thermal Magnetic | |
| Rated AC Voltage | 250V ac | |
| Earth Leakage Protection Type | Type A | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Residual Current Circuit Breaker | ||
Current Rating 60A | ||
Number of Poles 1 | ||
Series Resi9 DB | ||
Range Resi9 | ||
Trip Sensitivity 500mA | ||
Tripping Characteristics Type A | ||
Terminal Type 30° Orientational Terminal | ||
Standards/Approvals NF C 62-411 | ||
Width 71mm | ||
Depth 73mm | ||
Height 209mm | ||
Breaking Capacity 2.4kA | ||
Reset Actuator Type Toggle | ||
Tripping Mechanism Thermal Magnetic | ||
Rated AC Voltage 250V ac | ||
Earth Leakage Protection Type Type A | ||
RoHS Status: Exempt
- COO (Country of Origin):
- BG
The Schneider Electric Residual current breaker with overcurrent protection, thermal-magnetic unit trip technology and selective earth leakage protection time delay. It is a green premium product.
Mercury free
Sustainable
