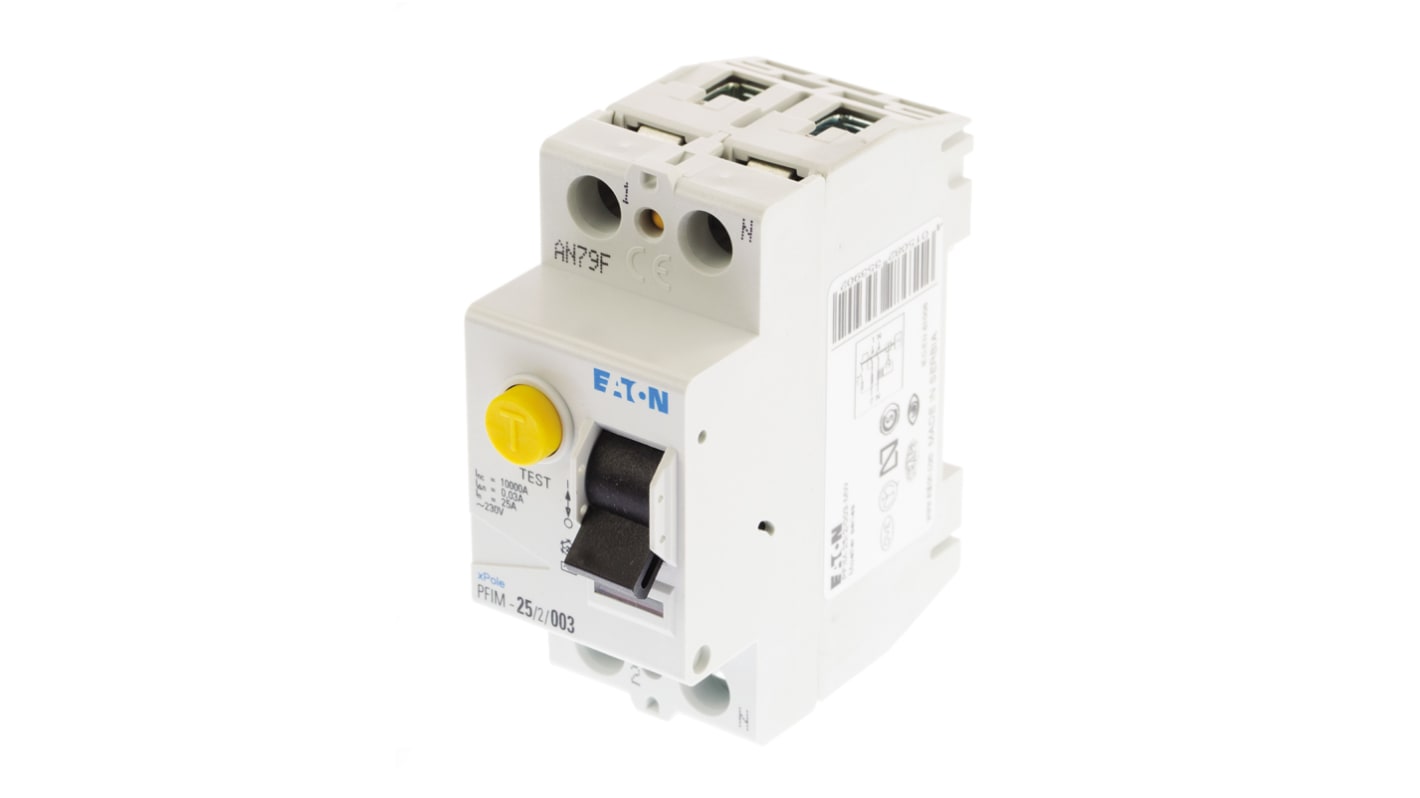

Eaton RCCB, 25A, 1+N Pole, 30mA, Type AC, 230V ac
- RS Stock No.:
- 667-0605
- Mfr. Part No.:
- 235390 PFIM-25/2/003-MW
- Brand:
- Eaton
Subtotal (1 unit)*
£112.82
(exc. VAT)
£135.38
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £112.82 |
*price indicative
- RS Stock No.:
- 667-0605
- Mfr. Part No.:
- 235390 PFIM-25/2/003-MW
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Circuit Breaker Type | RCCB | |
| Current Rating | 25A | |
| Number of Poles | 1+N | |
| Range | XBoard | |
| Trip Sensitivity | 30mA | |
| Tripping Characteristics | Type AC | |
| Voltage Rating | 230V ac | |
| Standards Met | IEC/EN 61008 | |
| Application | Commercial, Residential | |
| Overall Depth | 70.5mm | |
| Overall Width | 35mm | |
| Overall Dimensions | 70.5 x 80 x 32mm | |
| Terminal Contact Type | Screw | |
| Rated AC Voltage | 230V | |
| Mounting Style | DIN Rail Mount | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Circuit Breaker Type RCCB | ||
Current Rating 25A | ||
Number of Poles 1+N | ||
Range XBoard | ||
Trip Sensitivity 30mA | ||
Tripping Characteristics Type AC | ||
Voltage Rating 230V ac | ||
Standards Met IEC/EN 61008 | ||
Application Commercial, Residential | ||
Overall Depth 70.5mm | ||
Overall Width 35mm | ||
Overall Dimensions 70.5 x 80 x 32mm | ||
Terminal Contact Type Screw | ||
Rated AC Voltage 230V | ||
Mounting Style DIN Rail Mount | ||
Eaton RCCB, 230V AC Supply Voltage, 50Hz Frequency - 235390 PFIM-25/2/003-MW
Looking for a protective device to boost electrical safety in your circuitry? Put this RCCB from Eaton to work. Thanks to its 25A current rating, it's ideal for heavy-duty applications such as consumer units or industrial automation equipment. An AC tripping profile means it safeguards against pulsing DC currents and residual AC currents to keep your operations on point. The unit's 30mA trip sensitivity shields you from potential electrical hazards to keep you safe on the job. You won't break a sweat during installation as screw terminals make installation of this RCCB swift and straightforward.
Features & Benefits
• IP20 rating indicates it's touch-proof and resistant to objects greater than 12mm
• DIN rail mounting for wide compatibility with industrial systems
• Electrical lifespan greater than 4000 operations ensures longevity
• 10kA short-circuiting breaking capacity provides reliable protection
• Convenient test button located on front face so you can test your circuitry before operation
• DIN rail mounting for wide compatibility with industrial systems
• Electrical lifespan greater than 4000 operations ensures longevity
• 10kA short-circuiting breaking capacity provides reliable protection
• Convenient test button located on front face so you can test your circuitry before operation
What's the temperature range of this residual current circuit breaker?
This component has a wide operating temperature range of -25°C to +40°C, so you can rely on it for use in harsh industrial conditions.
Note
Eaton formerly known as Moeller
F&G Concept 2000 Incoming & Outgoing Devices
For use as spares and replacements in F&G Concept 2000 consumer units
