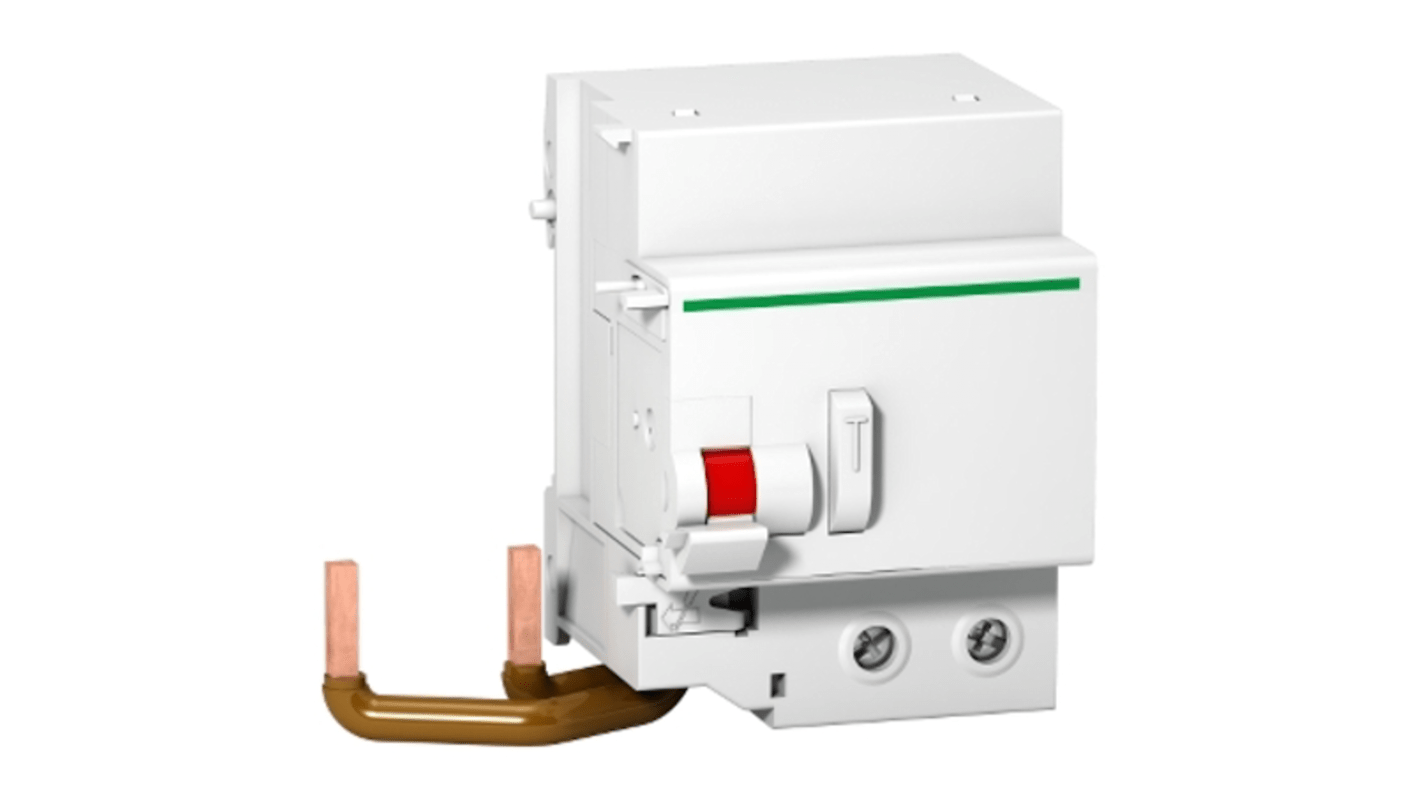

Schneider Electric Vigi C120 Series Residual Current Device, 125 A, 2-Pole, 30 mA, Type A-SI 415 V ac

View all RCCBs

Subtotal (1 unit)*

£1,079.10

(exc. VAT)

£1,294.92

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later
Units
Per unit
1 +£1,079.10

*price indicative

RS Stock No.:
219-9022
Mfr. Part No.:
A9N18591
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Product Type

Residual Current Device

Current Rating

125 A

Number of Poles

2

Range

Acti9

Series

Vigi C120

Trip Sensitivity

30mA

Tripping Characteristics

Type A-SI

Mount Type

DIN Rail

Terminal Type

Screw

Standards/Approvals

EN 61009

Depth

73mm

Width

117 mm

Height

95mm

Application

Residential

Rated AC Voltage

415 V ac

Reset Actuator Type

Toggle Switch

Tripping Mechanism

Electromagnetic

Earth Leakage Protection Type

A-SI

COO (Country of Origin):
FR
The Schneider Electrics product Acti9 Vigi C120 is a modular add-on residual current devices. It has 2P with 2 protected poles, rated current is 125A and operating voltage is 230VAC to 415VAC. The earth leakage protection class is A-SI type with a sensitivity of 30mA and a voltage independent technology. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. The A-SI type provides increased immunity from electrical interference and polluted or corrosive environments. This product is compliant with EN 61009 standard. Electrical endurance goes up to 20000 cycles. The Ue rated operational voltage is from 230VAC to 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV.

RoHS compliant
