Schneider Electric Acti9 C120 Series Residual Current Device, 125A, 3-Pole, 30 mA, Type AC 415V ac
- RS Stock No.:
- 776-2843
- Mfr. Part No.:
- A9N18566
- Brand:
- Schneider Electric

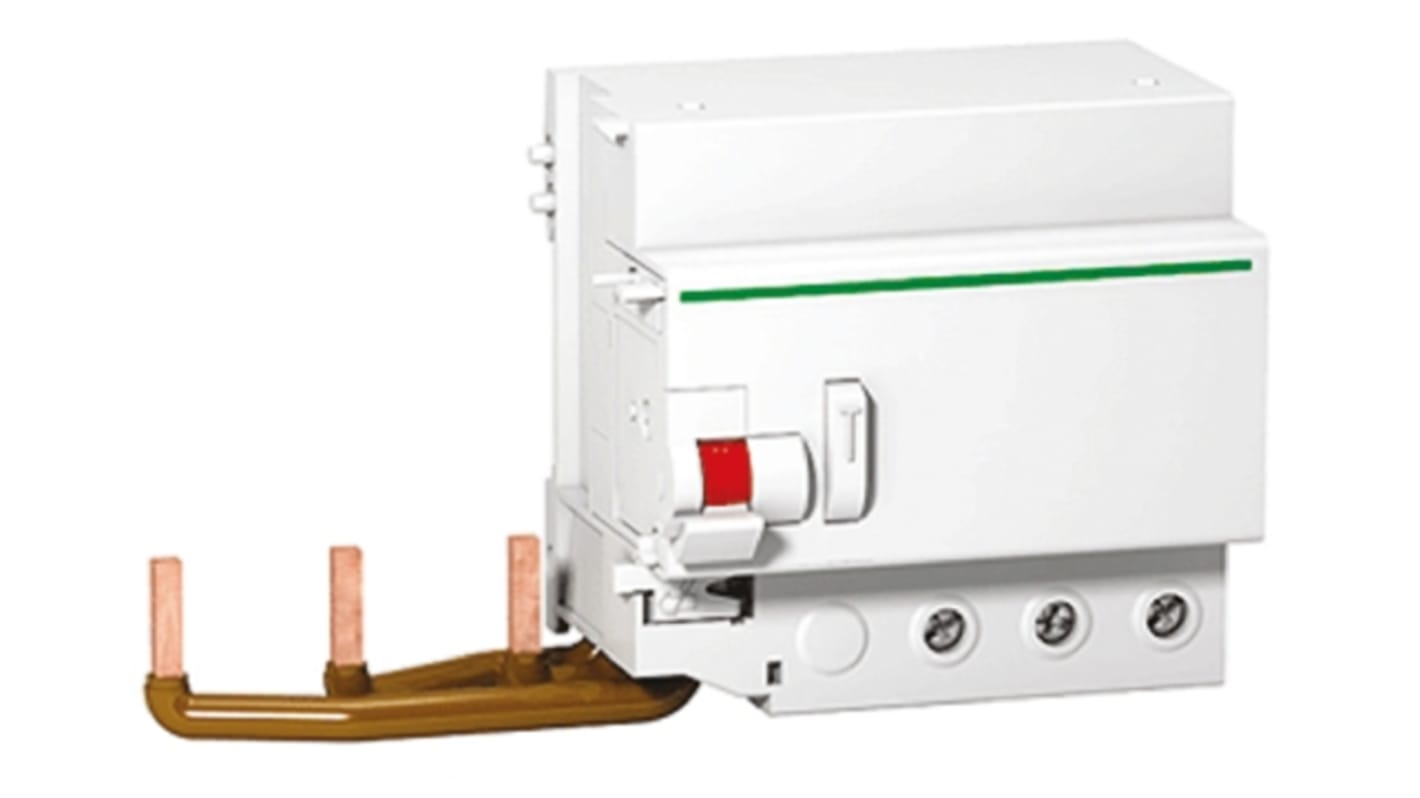

Image representative of range
Subtotal (1 unit)*
£444.31
(exc. VAT)
£533.17
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £444.31 |
*price indicative
- RS Stock No.:
- 776-2843
- Mfr. Part No.:
- A9N18566
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Residual Current Device | |
| Current Rating | 125A | |
| Number of Poles | 3 | |
| Series | Acti9 C120 | |
| Range | Acti9 | |
| Trip Sensitivity | 30mA | |
| Mount Type | DIN Rail | |
| Tripping Characteristics | Type AC | |
| Standards/Approvals | IEC/EN 61009-2-1, EN 61009, REACH, RoHS | |
| Terminal Type | Tunnel | |
| Height | 95mm | |
| Depth | 73mm | |
| Width | 198mm | |
| Tripping Mechanism | Thermal Magnetic | |
| Rated AC Voltage | 415V ac | |
| Reset Actuator Type | Toggle Switch | |
| Application | Residual Current Device | |
| Break Time | Instantaneous | |
| Earth Leakage Protection Type | AC | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Residual Current Device | ||
Current Rating 125A | ||
Number of Poles 3 | ||
Series Acti9 C120 | ||
Range Acti9 | ||
Trip Sensitivity 30mA | ||
Mount Type DIN Rail | ||
Tripping Characteristics Type AC | ||
Standards/Approvals IEC/EN 61009-2-1, EN 61009, REACH, RoHS | ||
Terminal Type Tunnel | ||
Height 95mm | ||
Depth 73mm | ||
Width 198mm | ||
Tripping Mechanism Thermal Magnetic | ||
Rated AC Voltage 415V ac | ||
Reset Actuator Type Toggle Switch | ||
Application Residual Current Device | ||
Break Time Instantaneous | ||
Earth Leakage Protection Type AC | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
Acti9 Vigi C120 Add on RCDs
Acti9 Vigi C120 Add on RCDs provide protection of persons against electric shock by direct and indirect contact and protection of installations against fire hazards
Class-2 insulation
Rating: 20 to 125 A
Fault indication by the red strip on the reset toggle
Screw shield allows the connections to be checked and retightened
Test button
