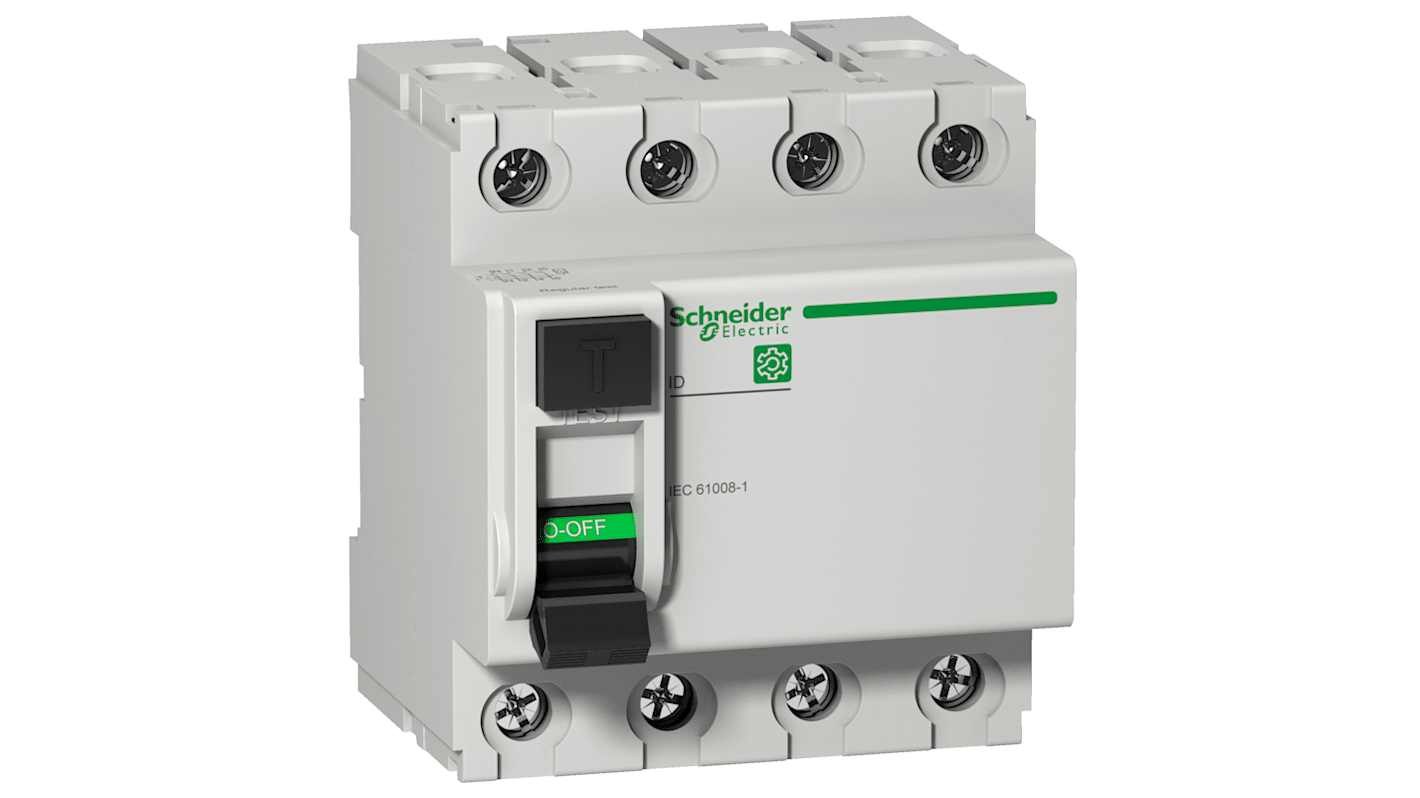

Schneider Electric Multi 9 Series Residual Current Circuit Breaker, 40A, 4-Pole, 300 mA, Type A, 500 A 240V ac
- RS Stock No.:
- 214-2102
- Mfr. Part No.:
- M9R35440
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£290.08
(exc. VAT)
£348.10
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £290.08 |
*price indicative
- RS Stock No.:
- 214-2102
- Mfr. Part No.:
- M9R35440
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Residual Current Circuit Breaker | |
| Current Rating | 40A | |
| Number of Poles | 4 | |
| Range | Multi9 | |
| Series | Multi 9 | |
| Trip Sensitivity | 300mA | |
| Mount Type | DIN Rail | |
| Tripping Characteristics | Type A | |
| Terminal Type | Screw | |
| Standards/Approvals | RoHS, REACH, EN IEC 61008-1, CE | |
| Width | 72mm | |
| Height | 81mm | |
| Depth | 73mm | |
| Breaking Capacity | 500A | |
| Reset Actuator Type | Toggle Switch | |
| Break Time | Instantaneous | |
| Rated AC Voltage | 240V ac | |
| Tripping Mechanism | Electromagnetic | |
| Earth Leakage Protection Type | Type A | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Residual Current Circuit Breaker | ||
Current Rating 40A | ||
Number of Poles 4 | ||
Range Multi9 | ||
Series Multi 9 | ||
Trip Sensitivity 300mA | ||
Mount Type DIN Rail | ||
Tripping Characteristics Type A | ||
Terminal Type Screw | ||
Standards/Approvals RoHS, REACH, EN IEC 61008-1, CE | ||
Width 72mm | ||
Height 81mm | ||
Depth 73mm | ||
Breaking Capacity 500A | ||
Reset Actuator Type Toggle Switch | ||
Break Time Instantaneous | ||
Rated AC Voltage 240V ac | ||
Tripping Mechanism Electromagnetic | ||
Earth Leakage Protection Type Type A | ||
- COO (Country of Origin):
- ES
The Schneider Electric ID series have residual current circuit breaker with 4 pole and it have 40 amp rated current. This RCCB have left neutral position. This RCCB have toggle control type and din rail mounting.
IP degree of protection is IP20 and IP40
Ambient air temperature for operation is -25 to 40 °C
