Schneider Electric Multi 9 Series Residual Current Circuit Breaker, 40 A, 4-Pole, 300 mA, Type AC, 400 A 240 V ac
- RS Stock No.:
- 214-2100
- Mfr. Part No.:
- M9R14440
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£252.77
(exc. VAT)
£303.32
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £252.77 |
*price indicative
- RS Stock No.:
- 214-2100
- Mfr. Part No.:
- M9R14440
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Residual Current Circuit Breaker | |
| Number of Poles | 4 | |
| Series | Multi 9 | |
| Range | Multi9 | |
| Trip Sensitivity | 300mA | |
| Tripping Characteristics | Type AC | |
| Mount Type | DIN Rail | |
| Standards/Approvals | REACH, EN IEC 61008-1, CE, RoHS | |
| Terminal Type | Screw | |
| Depth | 73mm | |
| Height | 81mm | |
| Breaking Capacity | 400A | |
| Tripping Mechanism | Electromagnetic | |
| Break Time | Instantaneous | |
| Reset Actuator Type | Toggle Switch | |
| Earth Leakage Protection Type | AC | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Residual Current Circuit Breaker | ||
Number of Poles 4 | ||
Series Multi 9 | ||
Range Multi9 | ||
Trip Sensitivity 300mA | ||
Tripping Characteristics Type AC | ||
Mount Type DIN Rail | ||
Standards/Approvals REACH, EN IEC 61008-1, CE, RoHS | ||
Terminal Type Screw | ||
Depth 73mm | ||
Height 81mm | ||
Breaking Capacity 400A | ||
Tripping Mechanism Electromagnetic | ||
Break Time Instantaneous | ||
Reset Actuator Type Toggle Switch | ||
Earth Leakage Protection Type AC | ||
- COO (Country of Origin):
- ES

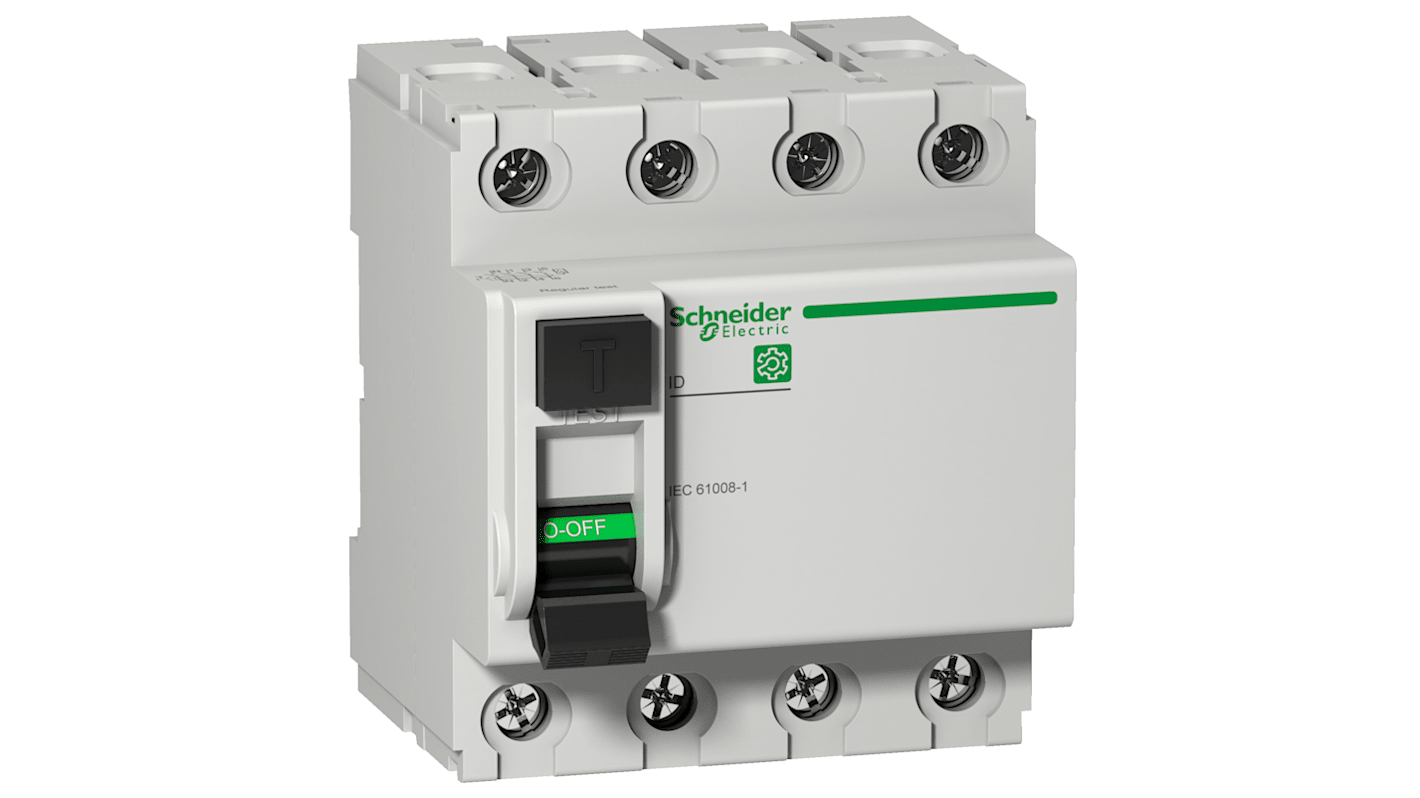

The Schneider Electric ID series have residual current circuit breaker with 4 pole and it have 40 amp rated current. This RCCB have left neutral position. This RCCB have toggle control type and din rail mounting.
IP degree of protection is IP20 and IP40
Ambient air temperature for operation is -5 to 40 °C
