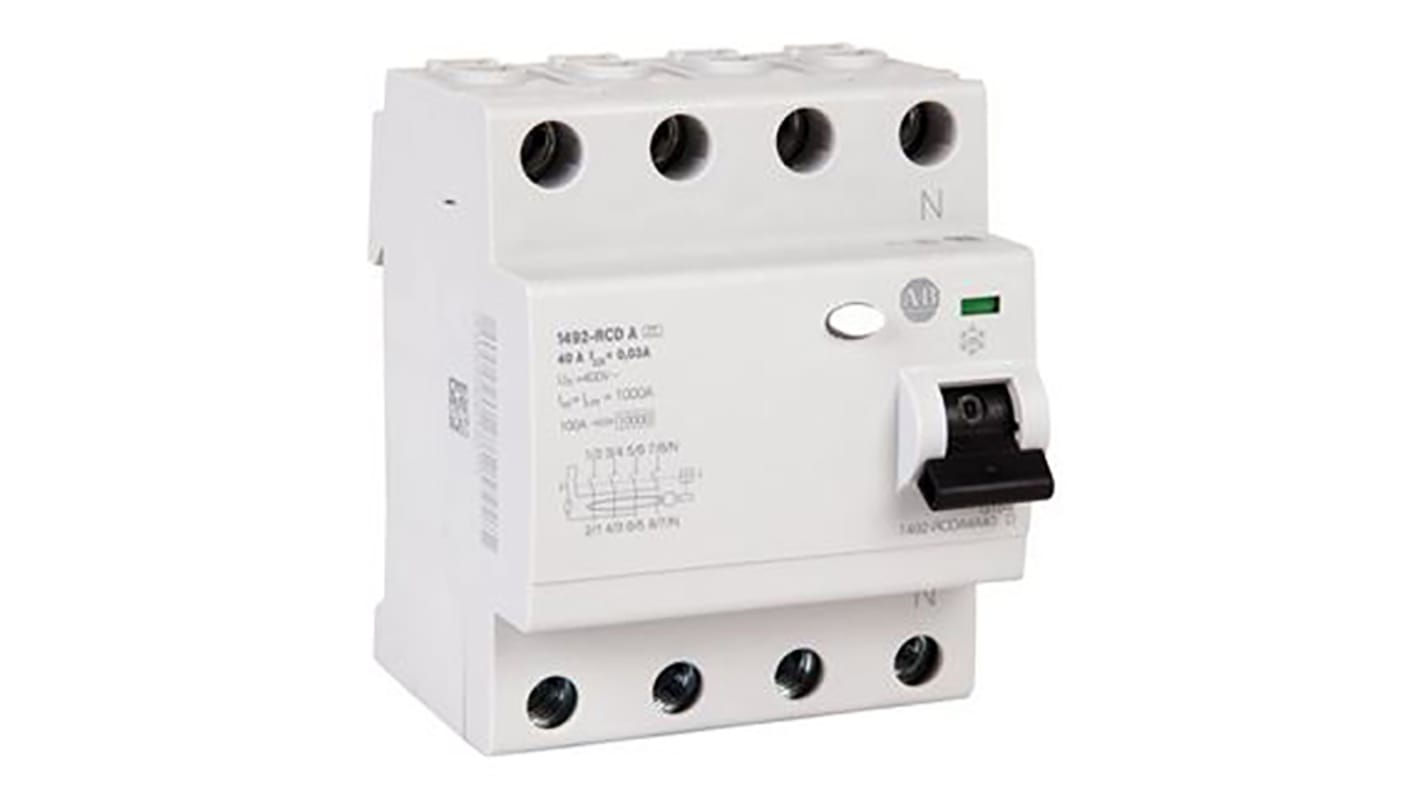

Allen Bradley 1492-RCDA Series Residual Current Device, 40 A, 3-Pole, 300 mA, Type A, 1 kA 400 V ac

RS Stock No.:: 136-8588
Distrelec Article No.:: 302-27-205
Mfr. Part No.:: 1492-RCDA4C40
Brand:: Allen Bradley

Allen Bradley 1492-RCDA Series Residual Current Device, 40 A, 3-Pole, 300 mA, Type A, 1 kA 400 V ac

Subtotal (1 unit)*

£140.86

(exc. VAT)

£169.03

(inc. VAT)

Stock information currently inaccessible - Please check back later

Units	Per unit
1 +	£140.86

*price indicative

RS Stock No.:: 136-8588
Distrelec Article No.:: 302-27-205
Mfr. Part No.:: 1492-RCDA4C40
Brand:: Allen Bradley

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Allen Bradley
	Product Type	Residual Current Device
	Current Rating	40 A
	Number of Poles	3
	Series	1492-RCDA
	Trip Sensitivity	300mA
	Tripping Characteristics	Type A
	Mount Type	DIN Rail
	Terminal Type	Dual Terminal
	Standards/Approvals	UL, IEC/EN
	Depth	67mm
	Width	70 mm
	Height	88mm
	Breaking Capacity	1kA
	Reset Actuator Type	Toggle Switch
	Rated AC Voltage	400 V ac

	Select all
	Brand Allen Bradley
	Product Type Residual Current Device
	Current Rating 40 A
	Number of Poles 3
	Series 1492-RCDA
	Trip Sensitivity 300mA
	Tripping Characteristics Type A
	Mount Type DIN Rail
	Terminal Type Dual Terminal
	Standards/Approvals UL, IEC/EN
	Depth 67mm
	Width 70 mm
	Height 88mm
	Breaking Capacity 1kA
	Reset Actuator Type Toggle Switch
	Rated AC Voltage 400 V ac

COO (Country of Origin):: IT

Allen Bradley Type A RCD Switch, 40A Current Rating, 300mA Trip Sensitivity - 1492-RCDA4C40

Keep machinery and personnel protected against earth faults with this residual current device (RCD) switch from Rockwell Automation's Allen Bradley range. The protective unit has an instantaneous breaking time to immediately cut power to the circuit when a ground fault occurs, ensuring that safe conditions are restored quickly. It has a rated impulse voltage of 4kV to withstand powerful surges. As a type-A RCD switch, this component is suitable for single-phase devices that use AC and DC power, such as lighting equipment and vehicle chargers.

• Minimal power loss of 3.2W for energy efficiency

• Indicator window displays red for ON and green for OFF for simple identification of operating status

• Wide operating temperature range of -25°C to +55°C for use in harsh industrial environments

• IP4X (ingress protection) rating means it's protected against objects larger than 1mm in size

Standards and Certifications

• RoHS (Restriction of Hazardous Substances)

• IEC (International Electrotechnical Commission)

How do I mount this RCD switch?

This RCD switch is simple to install. It's designed for DIN rail mounting using a fast-clip device, which saves you time and effort during installation.

1492 Series

Allen Bradley general purpose RCDs from the 1492 series. The RCDs have a Type A tripping characteristic and an instantaneous break time. 2 or 4 pole versions available. All the RCDs incorporate screw terminals and can be DIN Rail mounted.

Features & Benefits

2 or 4 pole versions

DIN Rail mount

Screw Terminals
