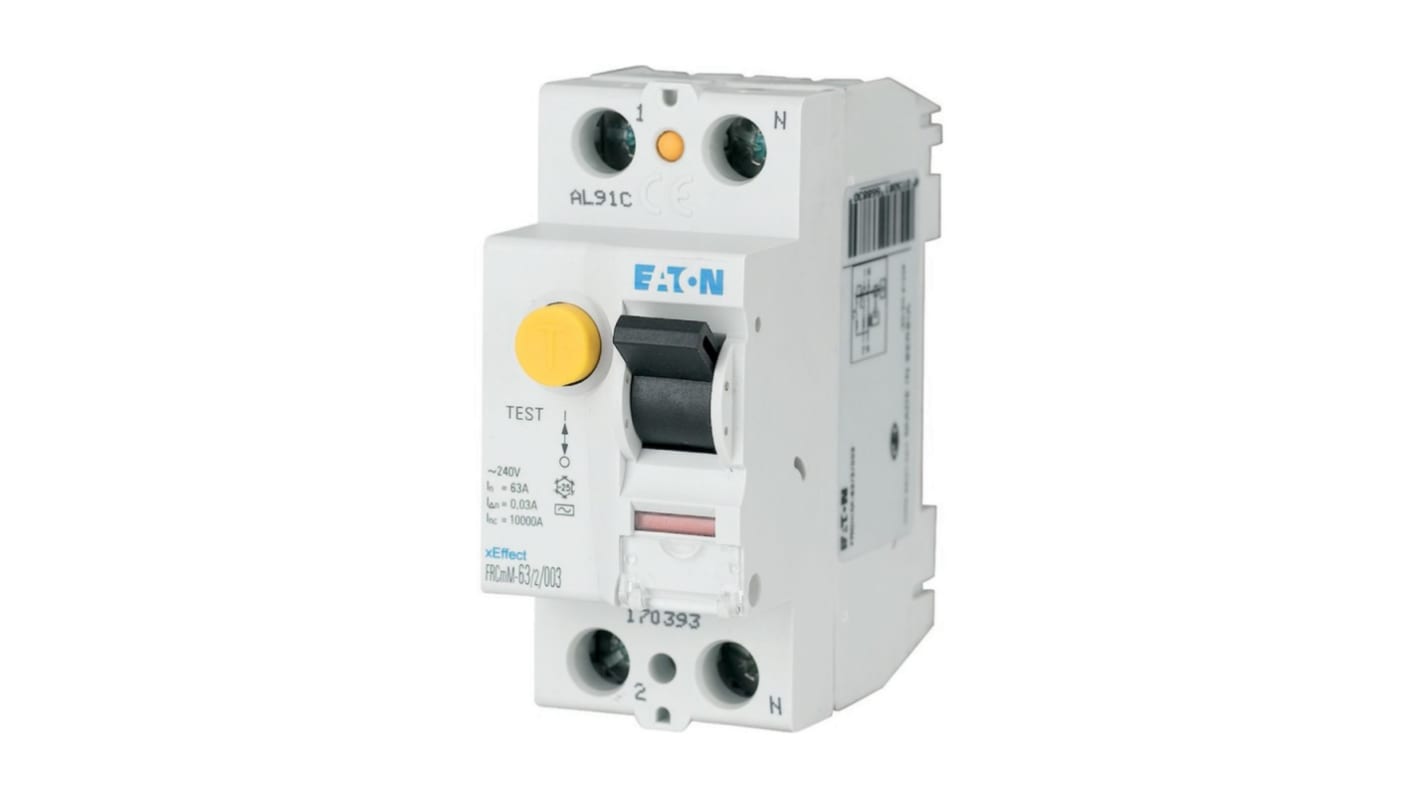

Eaton xEffect - FRCmM Series Residual Current Circuit Breaker, 100A, 2-Pole, 30 mA, Type A, 1000 A 121V ac
- RS Stock No.:
- 127-430
- Mfr. Part No.:
- 180611 FRCMM-100/2/003-A-110
- Brand:
- Eaton
Subtotal (1 unit)*
£871.97
(exc. VAT)
£1,046.36
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £871.97 |
*price indicative
- RS Stock No.:
- 127-430
- Mfr. Part No.:
- 180611 FRCMM-100/2/003-A-110
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Residual Current Circuit Breaker | |
| Current Rating | 100A | |
| Number of Poles | 2 | |
| Range | xEffect | |
| Series | xEffect - FRCmM | |
| Trip Sensitivity | 30mA | |
| Tripping Characteristics | Type A | |
| Mount Type | DIN Rail | |
| Standards/Approvals | EN45545-2 IEC 61373 IEC/EN 61008 | |
| Terminal Type | Twin-Purpose Terminal | |
| Width | 35mm | |
| Depth | 70.5mm | |
| Height | 80mm | |
| Breaking Capacity | 1000A | |
| Rated AC Voltage | 121V ac | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Residual Current Circuit Breaker | ||
Current Rating 100A | ||
Number of Poles 2 | ||
Range xEffect | ||
Series xEffect - FRCmM | ||
Trip Sensitivity 30mA | ||
Tripping Characteristics Type A | ||
Mount Type DIN Rail | ||
Standards/Approvals EN45545-2 IEC 61373 IEC/EN 61008 | ||
Terminal Type Twin-Purpose Terminal | ||
Width 35mm | ||
Depth 70.5mm | ||
Height 80mm | ||
Breaking Capacity 1000A | ||
Rated AC Voltage 121V ac | ||
RoHS Status: Exempt
- COO (Country of Origin):
- RS
The Eaton Mains voltage independent Residual Current Circuit Breaker is designed for fault and additional protection. It operates as a Type A device, capable of detecting both AC and pulsating DC residual currents, and is rated for a mains voltage of 110
RoHS compliant
IP20 degree protection
IEC 61373 and EN45545-2 certified
20000 operations mechanical lifespan
