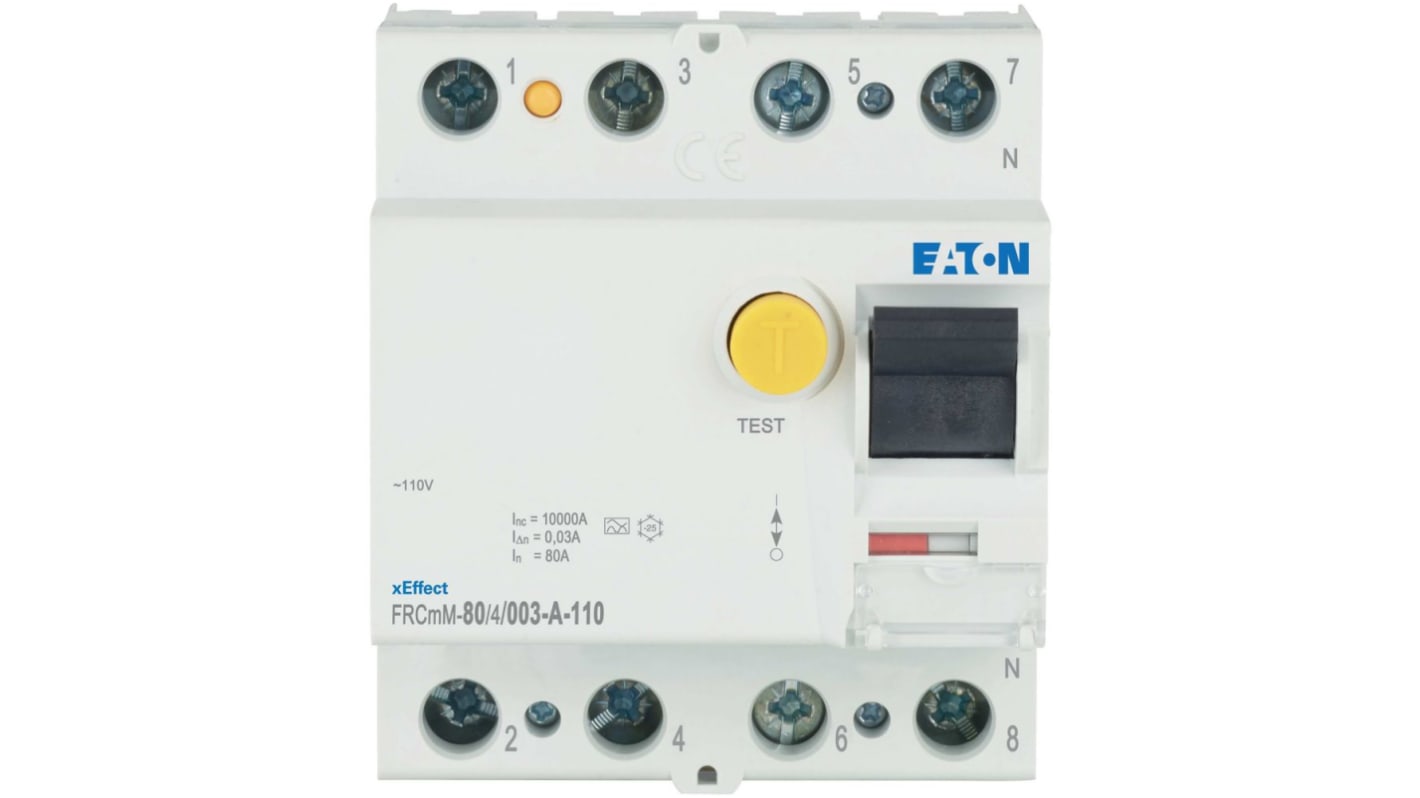

Eaton xEffect - FRCmM Series Residual Current Circuit Breaker, 80 A, 4-Pole, 30 mA, Type A, 800 A 121 V ac
- RS Stock No.:
- 127-431
- Mfr. Part No.:
- 180618 FRCMM-80/4/003-A-110
- Brand:
- Eaton
Subtotal (1 unit)*
£510.89
(exc. VAT)
£613.07
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 07 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £510.89 |
*price indicative
- RS Stock No.:
- 127-431
- Mfr. Part No.:
- 180618 FRCMM-80/4/003-A-110
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Residual Current Circuit Breaker | |
| Current Rating | 80 A | |
| Number of Poles | 4 | |
| Range | xEffect | |
| Series | xEffect - FRCmM | |
| Trip Sensitivity | 30mA | |
| Mount Type | DIN Rail | |
| Tripping Characteristics | Type A | |
| Terminal Type | Twin-Purpose Terminal | |
| Standards/Approvals | IEC/EN 61008, IEC 61373, IEC/EN 61439, EN45545-2 | |
| Height | 80mm | |
| Width | 70 mm | |
| Depth | 76mm | |
| Breaking Capacity | 800A | |
| Rated AC Voltage | 121 V ac | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Residual Current Circuit Breaker | ||
Current Rating 80 A | ||
Number of Poles 4 | ||
Range xEffect | ||
Series xEffect - FRCmM | ||
Trip Sensitivity 30mA | ||
Mount Type DIN Rail | ||
Tripping Characteristics Type A | ||
Terminal Type Twin-Purpose Terminal | ||
Standards/Approvals IEC/EN 61008, IEC 61373, IEC/EN 61439, EN45545-2 | ||
Height 80mm | ||
Width 70 mm | ||
Depth 76mm | ||
Breaking Capacity 800A | ||
Rated AC Voltage 121 V ac | ||
RoHS Status: Exempt
- COO (Country of Origin):
- RS
The Eaton Mains voltage independent residual current circuit breaker offers robust fault protection and additional safety, operating at 80A with four poles. This type A RCCB, suitable for 110V systems, detects and interrupts residual currents of 30 mA, ef
RoHS compliant
IP20 degree protection
IEC 61373 and EN45545-2 certified
20000 operations mechanical lifespan
