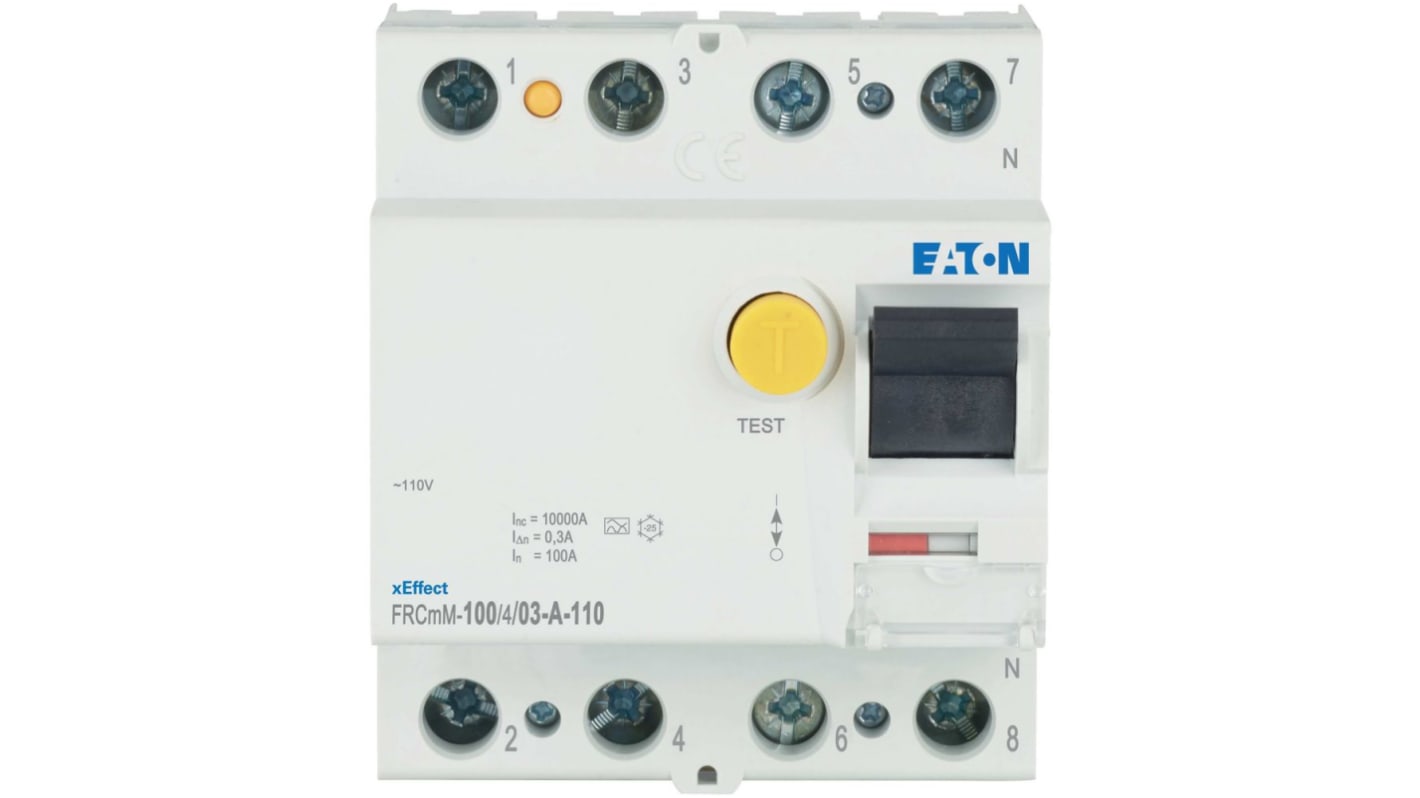

Eaton xEffect - FRCmM Series Residual Current Circuit Breaker, 100A, 4-Pole, 300 mA, Type A, 1000 A 210V ac
- RS Stock No.:
- 127-435
- Mfr. Part No.:
- 180621 FRCMM-100/4/03-A-110
- Brand:
- Eaton
Subtotal (1 unit)*
£1,140.18
(exc. VAT)
£1,368.22
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 27 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,140.18 |
*price indicative
- RS Stock No.:
- 127-435
- Mfr. Part No.:
- 180621 FRCMM-100/4/03-A-110
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Residual Current Circuit Breaker | |
| Current Rating | 100A | |
| Number of Poles | 4 | |
| Range | xEffect | |
| Series | xEffect - FRCmM | |
| Trip Sensitivity | 300mA | |
| Mount Type | DIN Rail | |
| Tripping Characteristics | Type A | |
| Standards/Approvals | IEC 617, EN45545, RoHS, IECEN 61008 | |
| Terminal Type | Twin-Purpose Terminal | |
| Height | 80mm | |
| Depth | 76mm | |
| Width | 70mm | |
| Breaking Capacity | 1000A | |
| Rated AC Voltage | 210V ac | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Residual Current Circuit Breaker | ||
Current Rating 100A | ||
Number of Poles 4 | ||
Range xEffect | ||
Series xEffect - FRCmM | ||
Trip Sensitivity 300mA | ||
Mount Type DIN Rail | ||
Tripping Characteristics Type A | ||
Standards/Approvals IEC 617, EN45545, RoHS, IECEN 61008 | ||
Terminal Type Twin-Purpose Terminal | ||
Height 80mm | ||
Depth 76mm | ||
Width 70mm | ||
Breaking Capacity 1000A | ||
Rated AC Voltage 210V ac | ||
RoHS Status: Exempt
- COO (Country of Origin):
- RS
The Eaton Mains voltage independent Residual Current Circuit Breaker offers fault and additional protection. It features a sensitivity of 300 mA and is classified as Type A, capable of detecting both AC and pulsating DC residual currents. Rated for a main
RoHS compliant
IP20 degree protection
IEC 61373 and EN45545-2 certified
20000 operations mechanical lifespan
