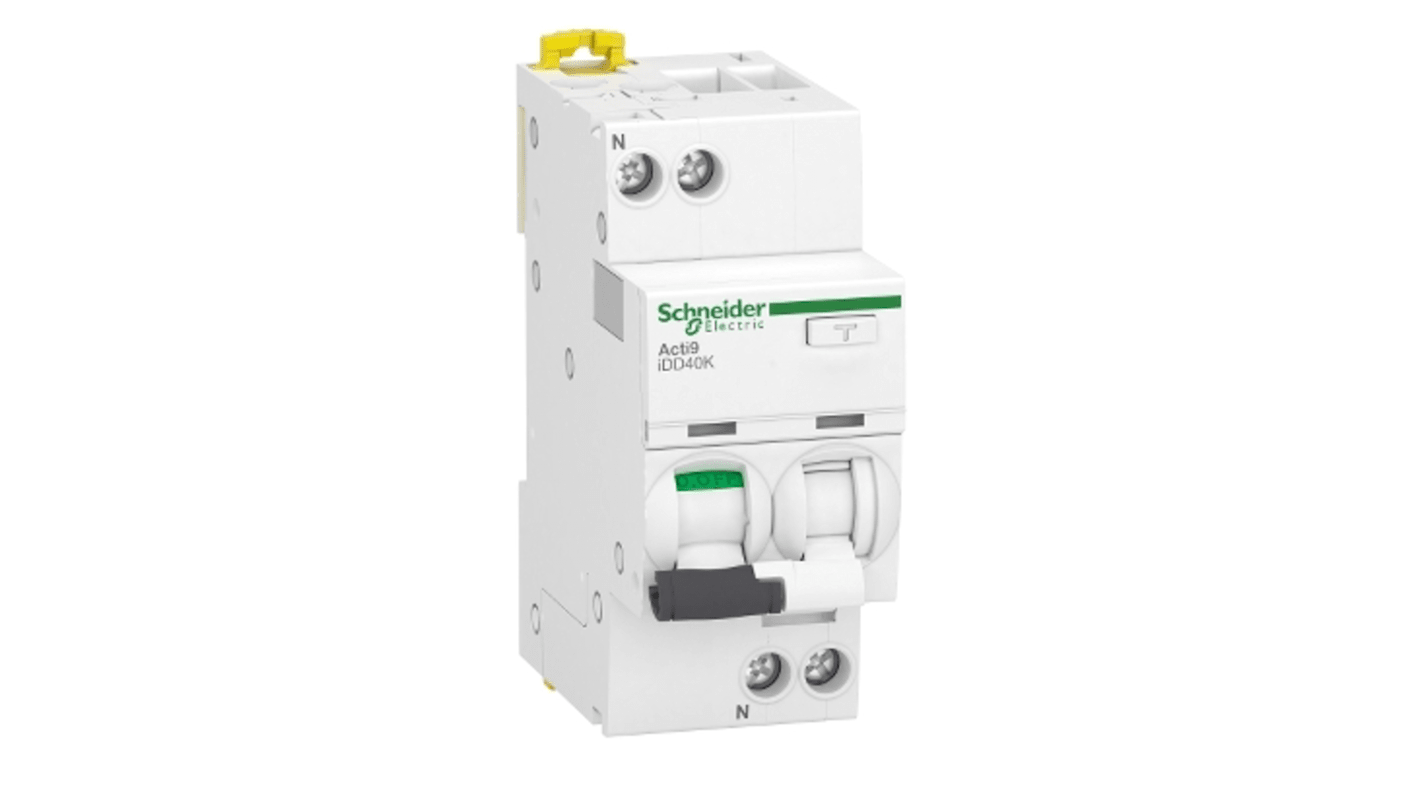

Schneider Electric RCBO, 32A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type C, Acti9 Range
- RS Stock No.:
- 238-3284
- Mfr. Part No.:
- A9DK1632
- Brand:
- Schneider Electric
6 In stock for delivery within 1 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£246.29
(exc. VAT)
£295.55
(inc. VAT)
| Units | Per unit |
| 1 + | £246.29 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 238-3284
- Mfr. Part No.:
- A9DK1632
- Brand:
- Schneider Electric
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- ES
Product Details
The Schneider Electric Acti9 series residual current breaker with overcurrent protection has thermal-magnetic trip unit technology with instantaneous earth-leakage protection time delay. It is a toggle control type with ON/OFF & trip indicator. Relative humidity of this type of circuit breaker is 95 % at 55 °C. It provides excellent circuit protection particularly in combating short circuits and overload currents. These RCBOs are compliant with standards such as EN/IEC 60947-2 and EN/IEC 61009-2-1.
Impulse withstand voltage is 4 kV
Clip-on mounting mode
Electrical durability of 20000 cycles
Ambient air temperature for operation is around -5 to 60 °C
Padlockable, providing extra protection
Schneider Green premium classed product
Clip-on mounting mode
Electrical durability of 20000 cycles
Ambient air temperature for operation is around -5 to 60 °C
Padlockable, providing extra protection
Schneider Green premium classed product
Specifications
Attribute | Value |
|---|---|
| Current Rating | 32A |
| Number of Poles | 1P+N |
| Trip Sensitivity | 30mA |
| Tripping Characteristics | Type C |
| Range | Acti9 |
| Series | Acti9 iDD40K |
| Better World Product | Yes |
| Better World Verification | Green Premium |
