	Brand	ABB
	Current Rating	16A
	Number of Poles	2
	Range	System Pro M Compact
	Series	DS201
	Trip Sensitivity	30mA
	Circuit Breaker Type	RCBO
	Tripping Characteristics	Type B
	Rated AC Voltage	240V
	Mounting Style	DIN Rail Mount
	Overall Length	69mm
	Overall Depth	69mm
	Breaking Capacity at Maximum Voltage Rating	15 kA
	Special Features	Short Circuit Protection
	Reset Actuator Type	Toggle Switch
	Terminal Contact Type	Screw
	Overall Width	35mm
	Break Time	Instantaneous

	Select all
	Brand ABB
	Current Rating 16A
	Number of Poles 2
	Range System Pro M Compact
	Series DS201
	Trip Sensitivity 30mA
	Circuit Breaker Type RCBO
	Tripping Characteristics Type B
	Rated AC Voltage 240V
	Mounting Style DIN Rail Mount
	Overall Length 69mm
	Overall Depth 69mm
	Breaking Capacity at Maximum Voltage Rating 15 kA
	Special Features Short Circuit Protection
	Reset Actuator Type Toggle Switch
	Terminal Contact Type Screw
	Overall Width 35mm
	Break Time Instantaneous

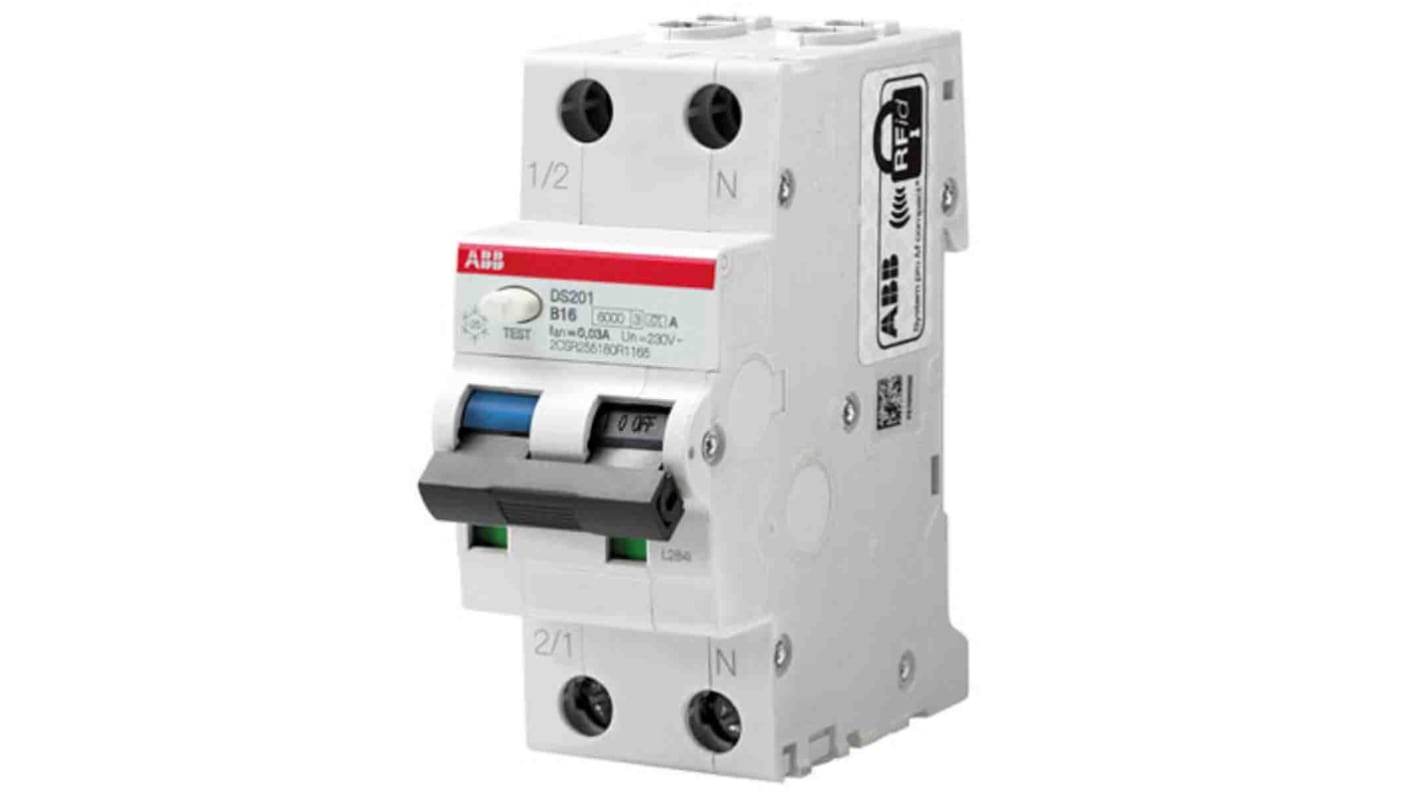

ABB DS201 Series RCBO, 16A Current Rating, 30mA Trip Sensitivity - 2CSR275080R1165 DS201 M B16 AC30

This RCBO is designed for safeguarding single-phase circuits by offering protection against overloads, short-circuit currents, and earth fault currents. The System Pro M Compact range ensures that installations meet high safety standards in electrical systems. With a compact size of 69mm x 69mm x 35mm, this unit is suitable for DIN rail mounting in diverse applications.

Features & Benefits

• Instantaneous tripping for rapid response to fault currents
• Trip sensitivity set at 30 mA for effective earth fault protection
• Type B classification for ensuring enhanced electrical safety
• High breaking capacity of 15 kA at maximum voltage rating
• Compact design saves space in electrical distribution boards
• Equipped with a toggle switch for manual reset capability

Applications

• Used for protecting residential and commercial electrical circuits
• Ideal for requiring overload and earth fault protection
• Suitable for settings with sensitive electronic equipment
• Commonly deployed in lighting, heating, and power distribution systems

What types of faults does this device protect against?

It provides protection against overloads, short circuits, and earth faults through a comprehensive trip mechanism designed for various fault types, ensuring electrical safety.

How does the trip sensitivity enhance safety?

The 30 mA sensitivity level allows for prompt disconnection from electric shocks, making it particularly effective for protecting against earth faults and reducing the risk of electric shock.

What is the mounting style, and how does it ease installation?

This unit features a DIN rail mount that simplifies installation, providing versatility in fitting it within standard electrical panels and enhancing efficiency during setup.
