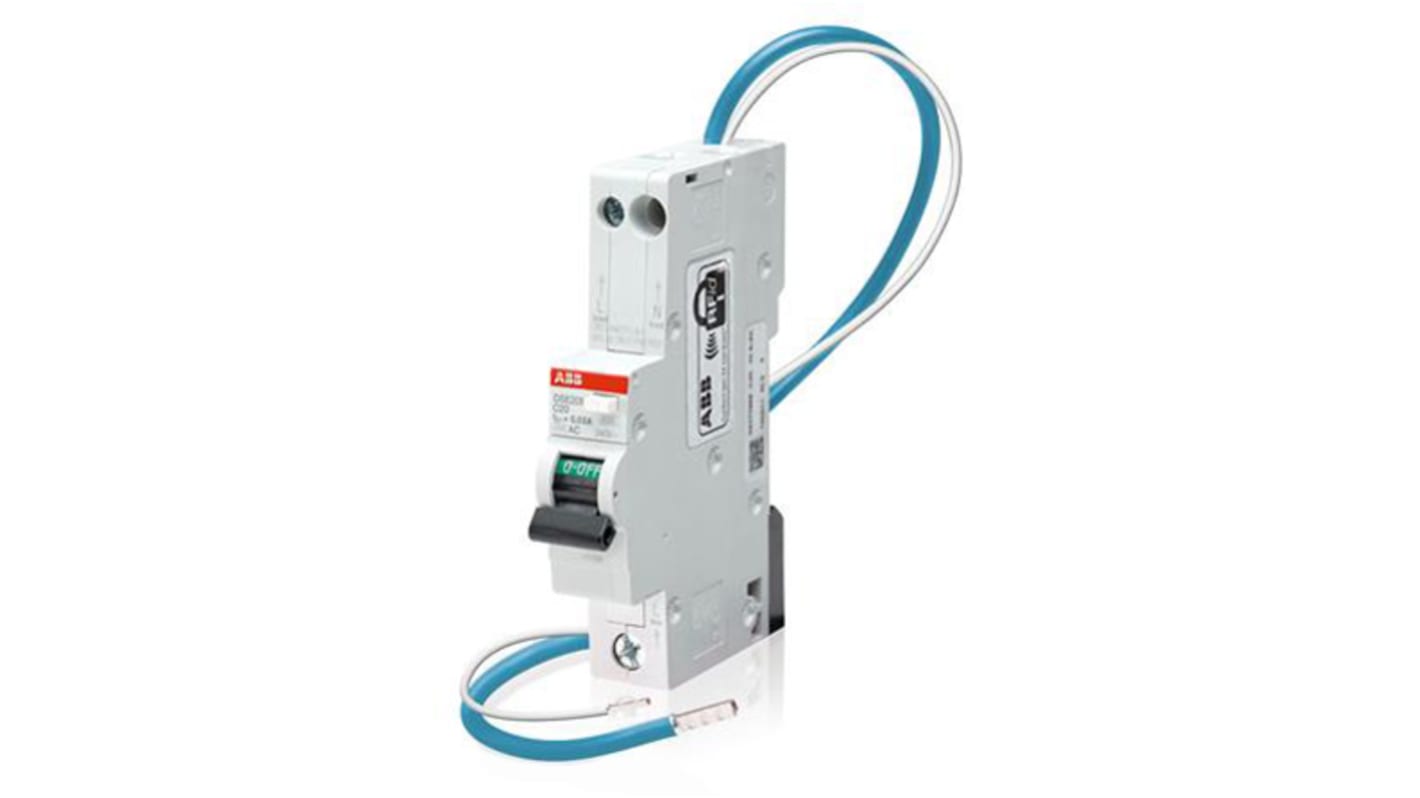

ABB RCBO, 16A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type B, System Pro M Compact Range

RS Stock No.:: 136-7794
Mfr. Part No.:: 2CSR275051R1165 DSE201 M B16 AC30 - N Blue
Brand:: ABB

ABB RCBO, 16A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type B, System Pro M Compact Range

View all RCBOs

Available to back order for despatch 21/08/2024

Price Each

£119.91

(exc. VAT)

£143.89

(inc. VAT)

Units	Per unit
1 - 4	£119.91
5 - 9	£113.90
10 - 24	£107.93
25 - 49	£101.92
50 +	£95.93

RS Stock No.:: 136-7794
Mfr. Part No.:: 2CSR275051R1165 DSE201 M B16 AC30 - N Blue
Brand:: ABB

Technical Reference

Datasheet

Legislation and Compliance

Product Details

DSE201 Series Type AC RCBO's

ABB DSE201 series are 1P+N residual current circuit breaker with overcurrent protection (RCBO) in one module. For the protection against short circuit currents, overload, earth fault currents, indirect contacts and additional protection against direct contacts. DSE201 is equipped with supply neutral wire and functional earth wire.

ABB RCBO's & RCCB's

RCBO's : DIN rail mounting with an operating temperature range of -25 to +55 °C. Optimum frequency range of 50 to 60Hz

Specifications

Attribute	Value
Current Rating	16A
Number of Poles	1P+N
Trip Sensitivity	30mA
Tripping Characteristics	Type B
Range	System Pro M Compact
Circuit Breaker Type	RCBO
Series	DSE201 M
Rated AC Voltage	230 → 240V
Mounting Style	DIN Rail Mount
Earth Leakage Protection Type	AC
Reset Actuator Type	Toggle Switch
Overall Length	17.6mm
Tripping Mechanism	Thermal-Magnetic
Breaking Capacity at Maximum Voltage Rating	10 kA
Overall Depth	68.9mm
Overall Width	115mm
Overall Dimensions	17.6 x 115 x 68.9mm
