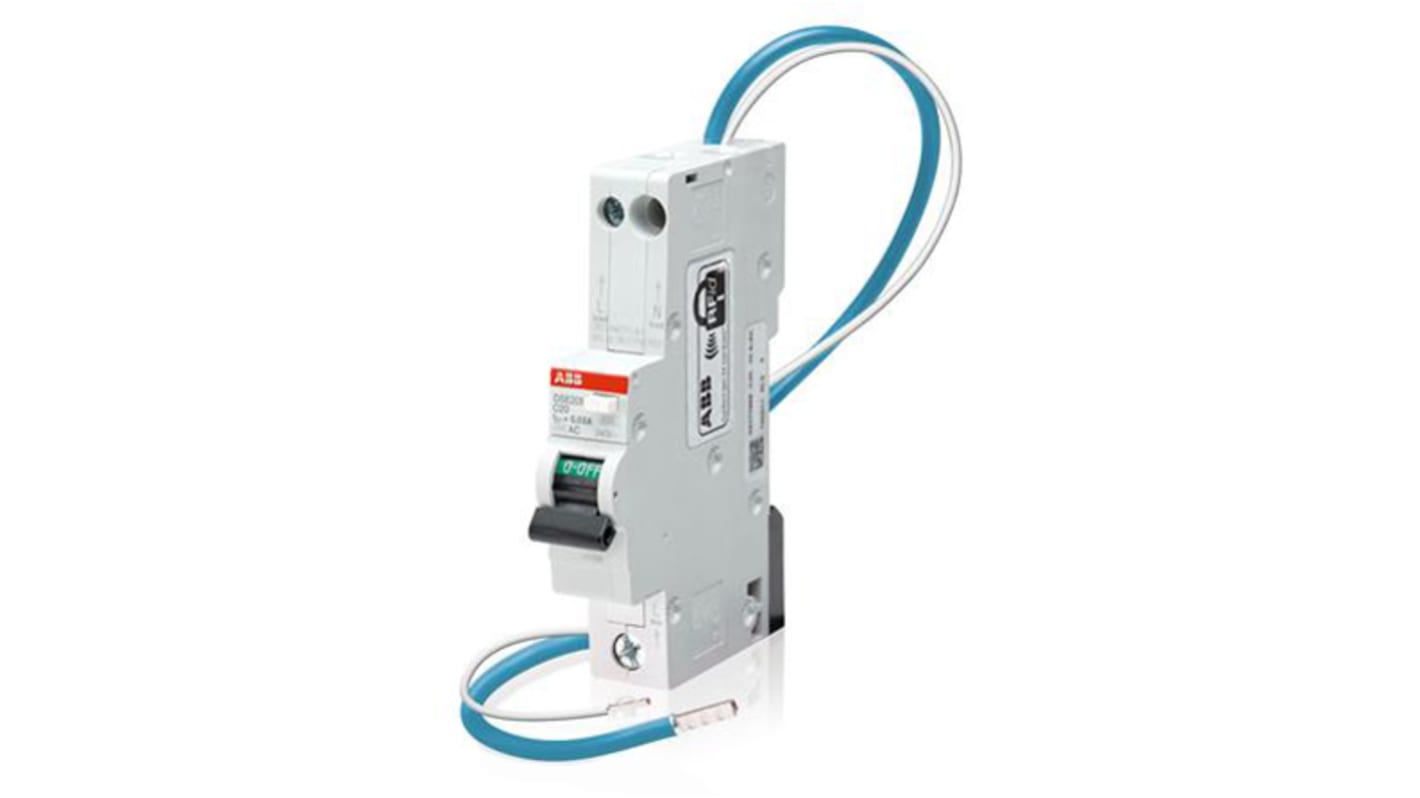

ABB RCBO, 6A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type B, System Pro M Compact Range
- RS Stock No.:
- 136-7792
- Mfr. Part No.:
- 2CSR275051R1065 DSE201 M B6 AC30 - N Blue
- Brand:
- ABB
Available to back order for despatch 10/05/2024
Added
Price Each
£95.93
(exc. VAT)
£115.12
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £95.93 |
| 5 - 9 | £91.14 |
| 10 - 24 | £86.34 |
| 25 - 49 | £81.54 |
| 50 + | £76.74 |
- RS Stock No.:
- 136-7792
- Mfr. Part No.:
- 2CSR275051R1065 DSE201 M B6 AC30 - N Blue
- Brand:
- ABB
Technical Reference
Legislation and Compliance
Product Details
DSE201 Series Type AC RCBO's
ABB DSE201 series are 1P+N residual current circuit breaker with overcurrent protection (RCBO) in one module. For the protection against short circuit currents, overload, earth fault currents, indirect contacts and additional protection against direct contacts. DSE201 is equipped with supply neutral wire and functional earth wire.
ABB RCBO's & RCCB's
RCBO's : DIN rail mounting with an operating temperature range of -25 to +55 °C. Optimum frequency range of 50 to 60Hz
Specifications
Attribute | Value |
|---|---|
| Current Rating | 6A |
| Number of Poles | 1P+N |
| Trip Sensitivity | 30mA |
| Tripping Characteristics | Type B |
| Range | System Pro M Compact |
| Circuit Breaker Type | RCBO |
| Series | DSE201 M |
| Rated AC Voltage | 230 → 240V |
| Mounting Style | DIN Rail Mount |
| Earth Leakage Protection Type | AC |
| Overall Length | 17.6mm |
| Overall Width | 115mm |
| Reset Actuator Type | Toggle Switch |
| Overall Depth | 68.9mm |
| Breaking Capacity at Maximum Voltage Rating | 10 kA |
| Tripping Mechanism | Thermal-Magnetic |
| Overall Dimensions | 17.6 x 115 x 68.9mm |
