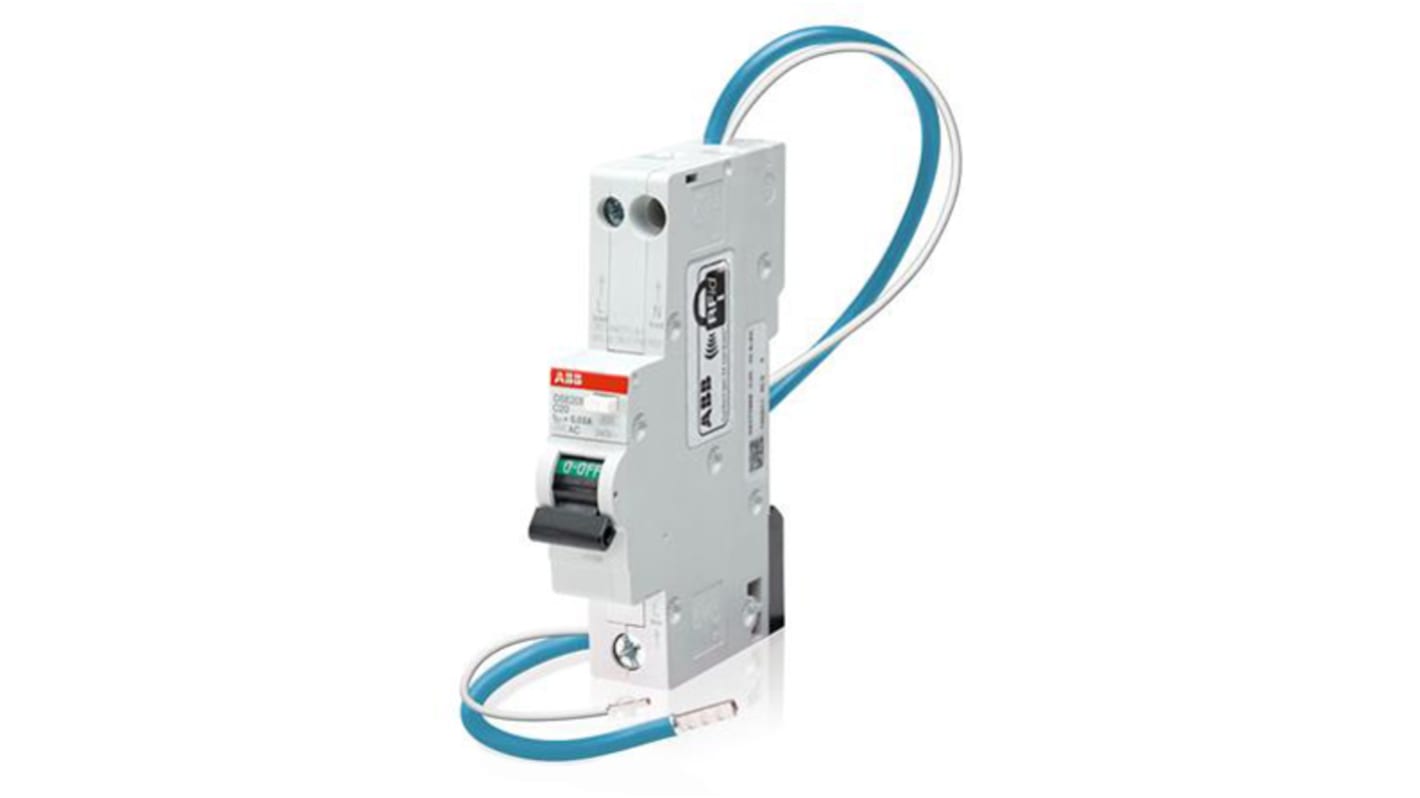

ABB RCBO, 10A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type B, System Pro M Compact Range
- RS Stock No.:
- 136-7793
- Mfr. Part No.:
- 2CSR275051R1105 DSE201 M B10 AC30 - N Blue
- Brand:
- ABB
Subtotal (1 unit)*
£122.57
(exc. VAT)
£147.08
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £122.57 |
*price indicative
- RS Stock No.:
- 136-7793
- Mfr. Part No.:
- 2CSR275051R1105 DSE201 M B10 AC30 - N Blue
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ABB | |
Current Rating | 10A | |
Number of Poles | 1P+N | |
Range | System Pro M Compact | |
Trip Sensitivity | 30mA | |
Series | DSE201 M | |
Circuit Breaker Type | RCBO | |
Tripping Characteristics | Type B | |
Rated AC Voltage | 230 → 240V | |
Mounting Style | DIN Rail Mount | |
Earth Leakage Protection Type | AC | |
Overall Width | 115mm | |
Overall Depth | 68.9mm | |
Tripping Mechanism | Thermal-Magnetic | |
Breaking Capacity at Maximum Voltage Rating | 10 kA | |
Overall Length | 17.6mm | |
Overall Dimensions | 17.6 x 115 x 68.9mm | |
Reset Actuator Type | Toggle Switch | |
Select all | ||
---|---|---|
Brand ABB | ||
Current Rating 10A | ||
Number of Poles 1P+N | ||
Range System Pro M Compact | ||
Trip Sensitivity 30mA | ||
Series DSE201 M | ||
Circuit Breaker Type RCBO | ||
Tripping Characteristics Type B | ||
Rated AC Voltage 230 → 240V | ||
Mounting Style DIN Rail Mount | ||
Earth Leakage Protection Type AC | ||
Overall Width 115mm | ||
Overall Depth 68.9mm | ||
Tripping Mechanism Thermal-Magnetic | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Overall Length 17.6mm | ||
Overall Dimensions 17.6 x 115 x 68.9mm | ||
Reset Actuator Type Toggle Switch | ||
DSE201 Series Type AC RCBO's
ABB DSE201 series are 1P+N residual current circuit breaker with overcurrent protection (RCBO) in one module. For the protection against short circuit currents, overload, earth fault currents, indirect contacts and additional protection against direct contacts. DSE201 is equipped with supply neutral wire and functional earth wire.
ABB RCBO's & RCCB's
RCBO's : DIN rail mounting with an operating temperature range of -25 to +55 °C. Optimum frequency range of 50 to 60Hz
