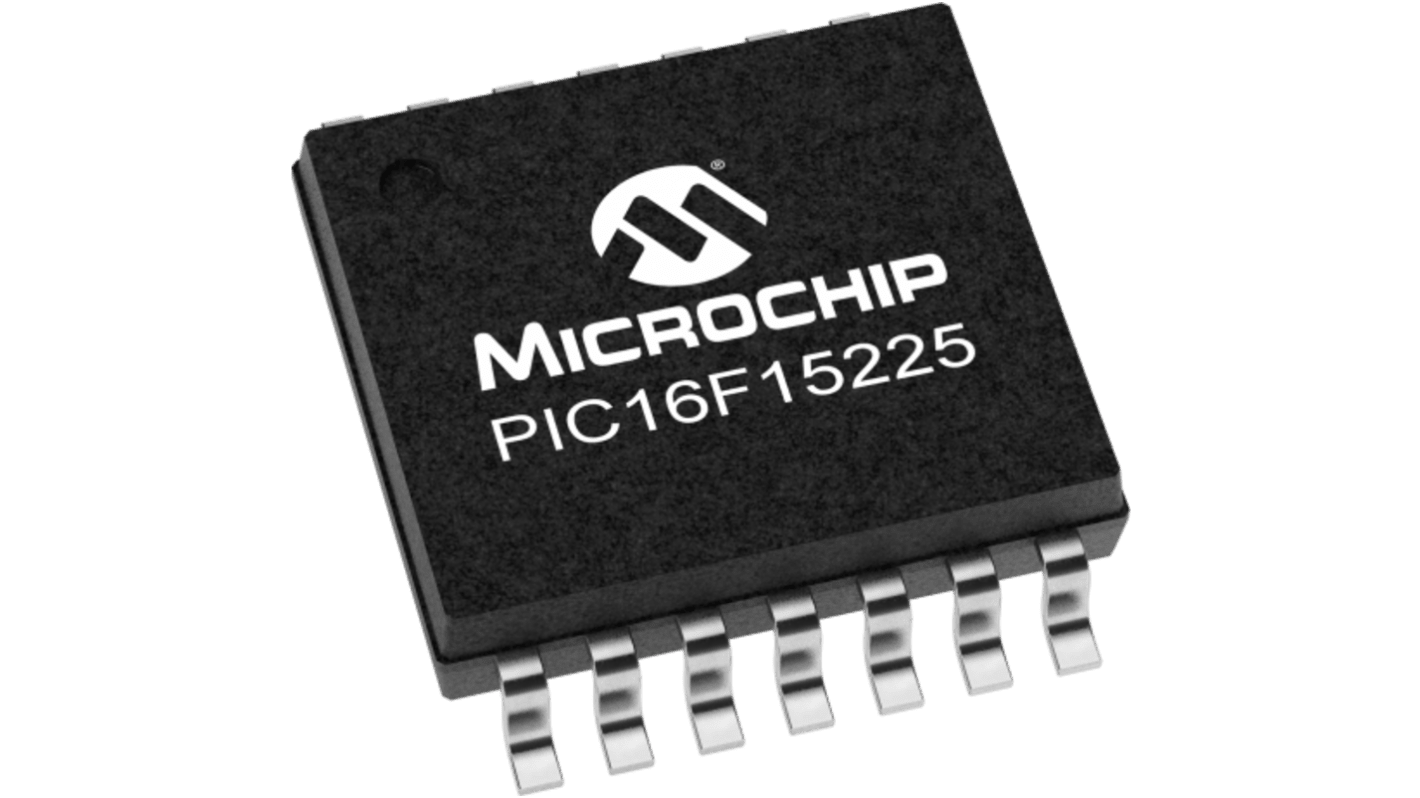

Microchip PIC16F15225-E/STVAO, PWM Controller, 1.8 → 5.5 V, 32 MHz 16-Pin, TSSOP
- RS Stock No.:
- 631-486
- Mfr. Part No.:
- PIC16F15225-E/STVAO
- Brand:
- Microchip
Subtotal (1 box of 1152 units)*
£703.872
(exc. VAT)
£844.416
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,360 unit(s) shipping from 05 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 1152 + | £0.611 | £703.87 |
*price indicative
- RS Stock No.:
- 631-486
- Mfr. Part No.:
- PIC16F15225-E/STVAO
- Brand:
- Microchip
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Maximum Switching Frequency | 32 MHz | |
| Maximum Source Current | 600µA | |
| Maximum Sink Current | 600µA | |
| Output Voltage | 1.024 → 4.096 V | |
| Maximum Supply Current | 480 μA | |
| Number of Outputs | 1 | |
| Package Type | TSSOP | |
| Pin Count | 16 | |
| Maximum Operating Supply Voltage | 1.8 → 5.5 V | |
Select all | ||
|---|---|---|
Brand Microchip | ||
Maximum Switching Frequency 32 MHz | ||
Maximum Source Current 600µA | ||
Maximum Sink Current 600µA | ||
Output Voltage 1.024 → 4.096 V | ||
Maximum Supply Current 480 μA | ||
Number of Outputs 1 | ||
Package Type TSSOP | ||
Pin Count 16 | ||
Maximum Operating Supply Voltage 1.8 → 5.5 V | ||
