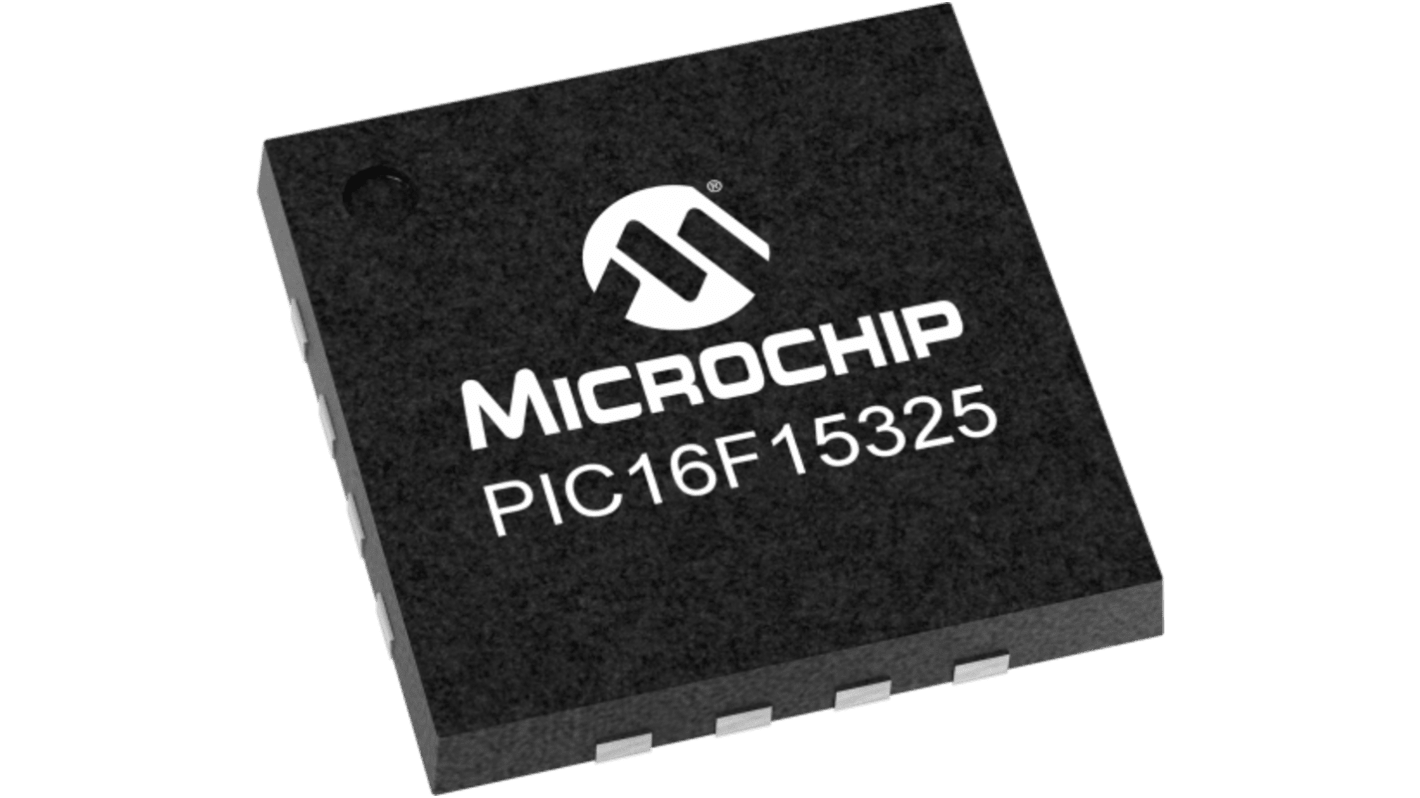

Microchip PIC16F15325-E/JQVAO, PWM Controller, 1.8 → 5.5 V, 32 MHz 16-Pin, UDFN
- RS Stock No.:
- 631-311
- Mfr. Part No.:
- PIC16F15325-E/JQVAO
- Brand:
- Microchip
Subtotal (1 box of 637 units)*
£736.372
(exc. VAT)
£883.519
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 19 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
---|---|---|
637 + | £1.156 | £736.37 |
*price indicative
- RS Stock No.:
- 631-311
- Mfr. Part No.:
- PIC16F15325-E/JQVAO
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Microchip | |
Maximum Switching Frequency | 32 MHz | |
Maximum Source Current | 600µA | |
Maximum Sink Current | 600µA | |
Output Voltage | 1.024 → 4.096 V | |
Maximum Supply Current | 480 μA | |
Number of Outputs | 1 | |
Package Type | UDFN | |
Pin Count | 16 | |
Maximum Operating Supply Voltage | 1.8 → 5.5 V | |
Select all | ||
---|---|---|
Brand Microchip | ||
Maximum Switching Frequency 32 MHz | ||
Maximum Source Current 600µA | ||
Maximum Sink Current 600µA | ||
Output Voltage 1.024 → 4.096 V | ||
Maximum Supply Current 480 μA | ||
Number of Outputs 1 | ||
Package Type UDFN | ||
Pin Count 16 | ||
Maximum Operating Supply Voltage 1.8 → 5.5 V | ||
- COO (Country of Origin):
- TH
The Microchip Microcontrollers feature Intelligent Analog, Core Independent Peripherals and communication peripherals combined with eXtreme Low Power for a wide range of general purpose and low power applications. The family features PWMs, multiple communication, temperature sensor and memory features like Memory Access Partition and Device Information Area.
C compiler optimized RISC architecture
Low current power on reset
Configurable power up timer
Brown out reset
Low power BOR option
Windowed watchdog timer
Variable prescaler selection
Variable window size selection
Low current power on reset
Configurable power up timer
Brown out reset
Low power BOR option
Windowed watchdog timer
Variable prescaler selection
Variable window size selection
