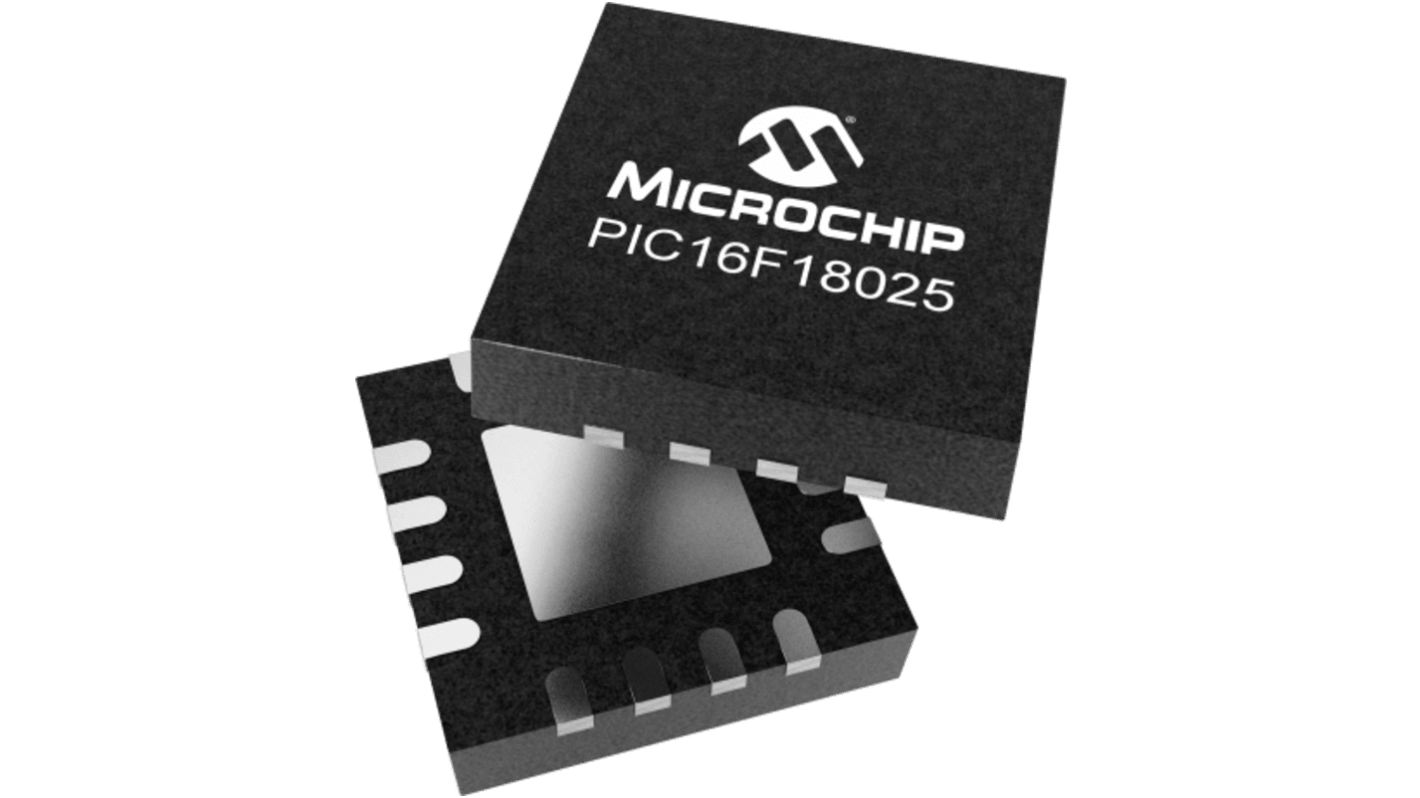

Microchip PIC16F18025-E/7NVAO 1 PWM Controller, 32 MHz 5.5 V 16-Pin, VQFN

View all PWM
Unavailable
RS will no longer stock this product.
RS Stock No.:
631-328
Mfr. Part No.:
PIC16F18025-E/7NVAO
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Maximum Switching Frequency

32MHz

Product Type

PWM Controller

Output Voltage

1.024/4.096 V

Supply Current

480μA

Zero Power Detection

Yes

Number of Outputs

1

Minimum Supply Voltage

1.8V

Package Type

VQFN

Maximum Supply Voltage

5.5V

Pin Count

16

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

125°C

Series

PIC16F180

Standards/Approvals

No

Automotive Standard

No

COO (Country of Origin):
TH
The Microchip Microcontroller feature set includes a 10 bit Analog to Digital Converter with Computation, automated Capacitive Voltage Divider techniques for advanced capacitive touch sensing, averaging, filtering, oversampling and threshold comparison, and a charge pump, in addition to an 8-bit Digital to Analog Converter module. This microcontroller also contains three 10 bit Pulse Width Modulation modules, Peripheral Pin Select, digital communication peripherals, timers and waveform generators.

Zero cross detect

Windowed watchdog timer

Peripheral pin select

Enhanced power on/off reset

Low power brown out reset

Programmable brown out reset

In circuit serial programming

10 bit ADC with computation
