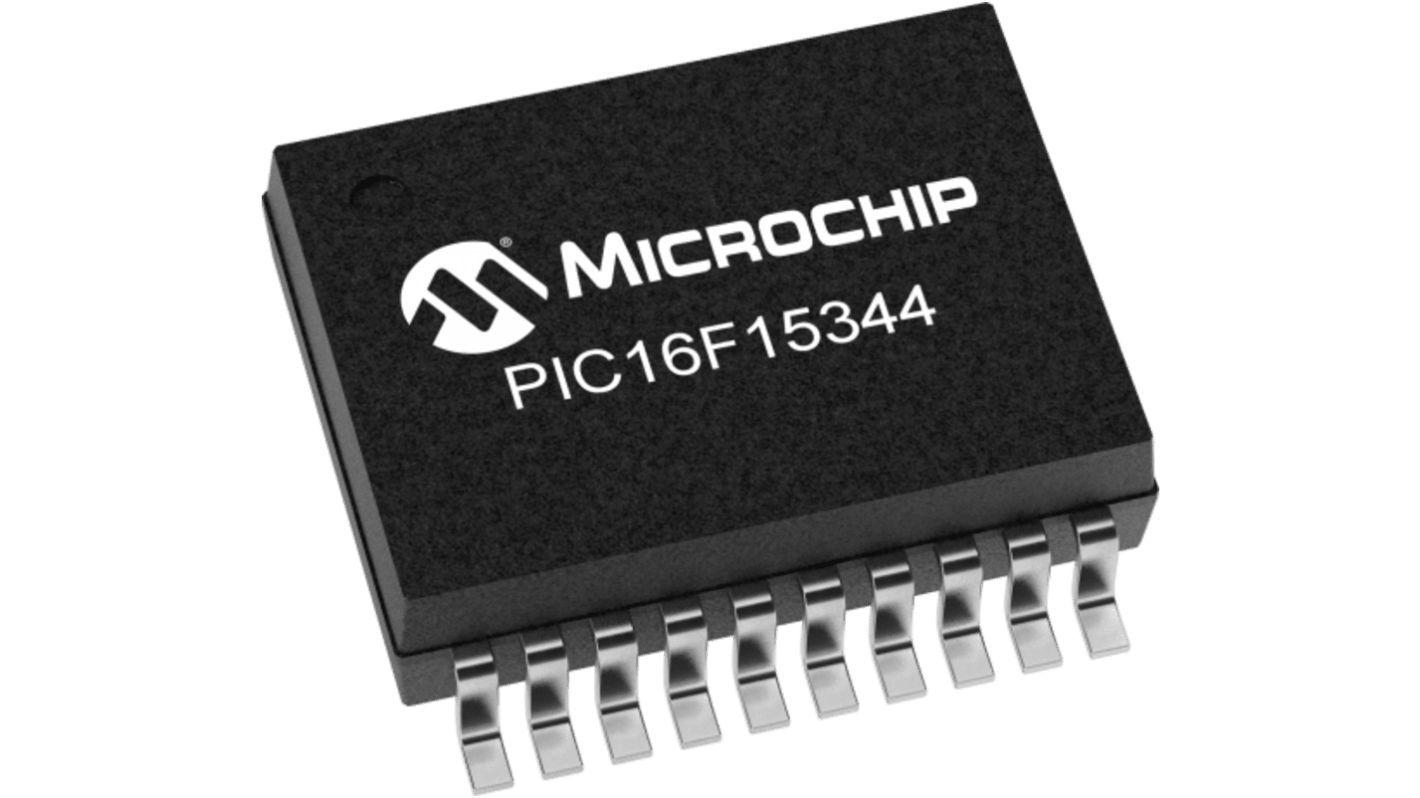

Microchip PIC16F15344-E/SSVAO 1 PWM Controller, 32 MHz 5.5 V 20-Pin, SSOP

View all PWM
Unavailable
RS will no longer stock this product.
RS Stock No.:
631-313
Mfr. Part No.:
PIC16F15344-E/SSVAO
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Maximum Switching Frequency

32MHz

Product Type

PWM Controller

Supply Current

480μA

Output Voltage

1.024/4.096 V

Zero Power Detection

Yes

Number of Outputs

1

Package Type

SSOP

Minimum Supply Voltage

1.8V

Maximum Supply Voltage

5.5V

Pin Count

20

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

125°C

Series

PIC16(L)F15324/44

Standards/Approvals

No

Automotive Standard

No

COO (Country of Origin):
TH
The Microchip Microcontrollers feature analogue, Core Independent Peripherals and communication peripherals, combined with eXtreme Low Power technology for a wide range of general purpose and low-power applications. The devices feature multiple PWMs, multiple communication, temperature sensor, and memory features like Memory Access Partition to support customers in data protection and bootloader applications, and Device Information Area which stores factory calibration values to help improve temperature sensor accuracy.

C compiler optimized RISC architecture

Low current power on reset

Configurable power up timer

Brown out reset

Low power BOR option

Windowed watchdog timer

Variable prescaler selection

Variable window size selection
