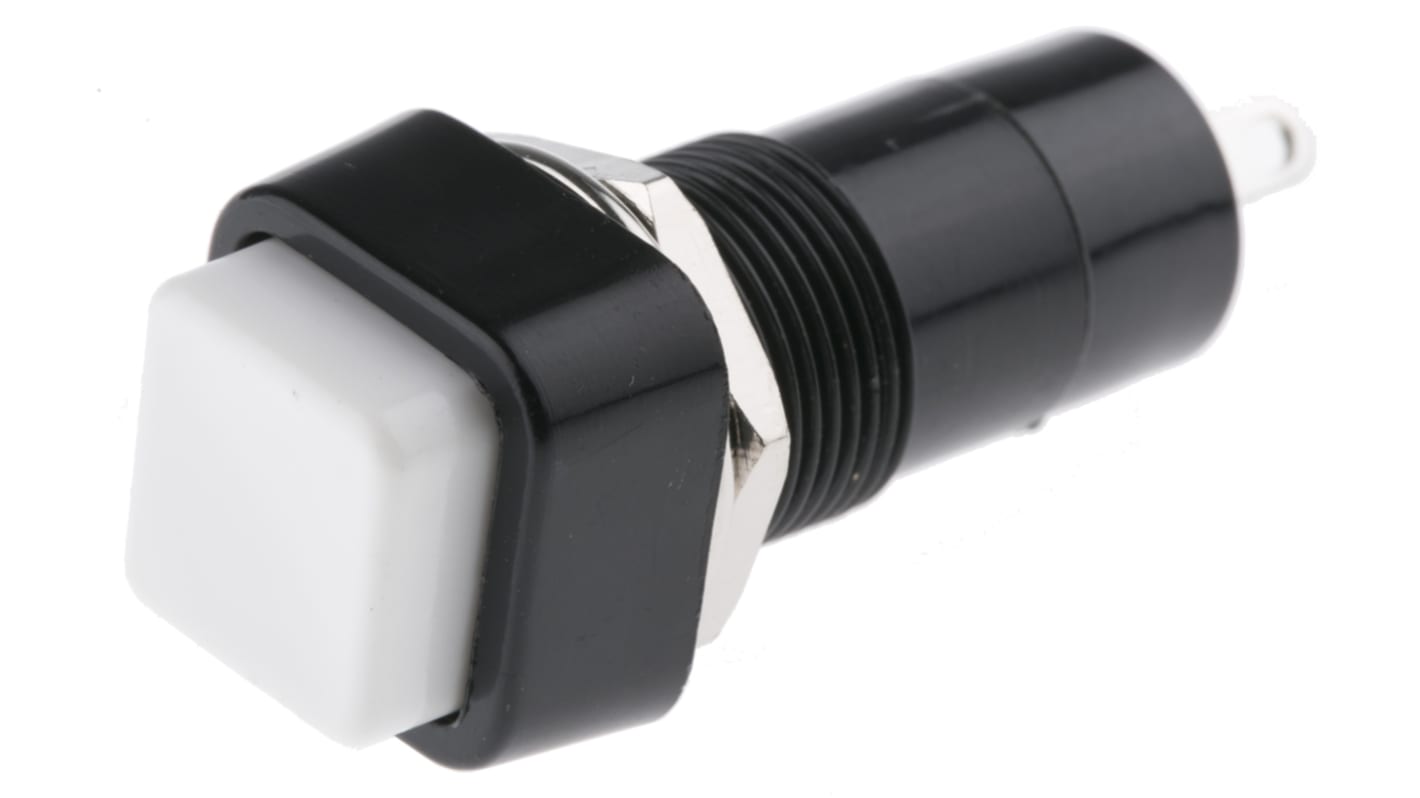

Lumberg Push Button Switch, Latching, Panel Mount, 12mm Cutout, SPST, 125/250V ac
- RS Stock No.:
- 724-3314
- Mfr. Part No.:
- PBS-001A-1
- Brand:
- Lumberg
Bulk discount available
Subtotal (1 unit)*
£5.55
(exc. VAT)
£6.66
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 43 unit(s) ready to ship
- Plus 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £5.55 |
10 - 24 | £5.02 |
25 - 49 | £4.55 |
50 - 99 | £4.17 |
100 + | £3.88 |
*price indicative
- RS Stock No.:
- 724-3314
- Mfr. Part No.:
- PBS-001A-1
- Brand:
- Lumberg
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Lumberg | |
Switch Operation | Latching | |
Illuminated | No | |
Panel Cut Out Diameter | 12mm | |
Mounting Type | Panel Mount | |
Contact Configuration | SPST | |
Voltage Rating | 125/250V ac | |
Push Button Style | Square | |
Contact Current Rating | 3 A @ 250 V ac | |
Contact Material | Silver Plated Copper Alloy | |
Manufacturer Part No. | PBS-001A-1 | |
Case Colour | Black | |
Panel Cut Out Width | 12mm | |
Panel Cut Out Height | 12mm | |
Terminal Type | Solder | |
Select all | ||
---|---|---|
Brand Lumberg | ||
Switch Operation Latching | ||
Illuminated No | ||
Panel Cut Out Diameter 12mm | ||
Mounting Type Panel Mount | ||
Contact Configuration SPST | ||
Voltage Rating 125/250V ac | ||
Push Button Style Square | ||
Contact Current Rating 3 A @ 250 V ac | ||
Contact Material Silver Plated Copper Alloy | ||
Manufacturer Part No. PBS-001A-1 | ||
Case Colour Black | ||
Panel Cut Out Width 12mm | ||
Panel Cut Out Height 12mm | ||
Terminal Type Solder | ||
- COO (Country of Origin):
- TW
Lumberg PBS Series Pushbutton Switches
Lumberg PBS series pushbutton switches are available with latching or momentary functions. The PBS series of pushbutton switches have ABS switch bodies and nylon actuator buttons in Red, Black or Cream.
Square faced 15.5mm bezel
12mm cut out
Solder tag termination
Mechanical life >10,000 operations
12mm cut out
Solder tag termination
Mechanical life >10,000 operations
