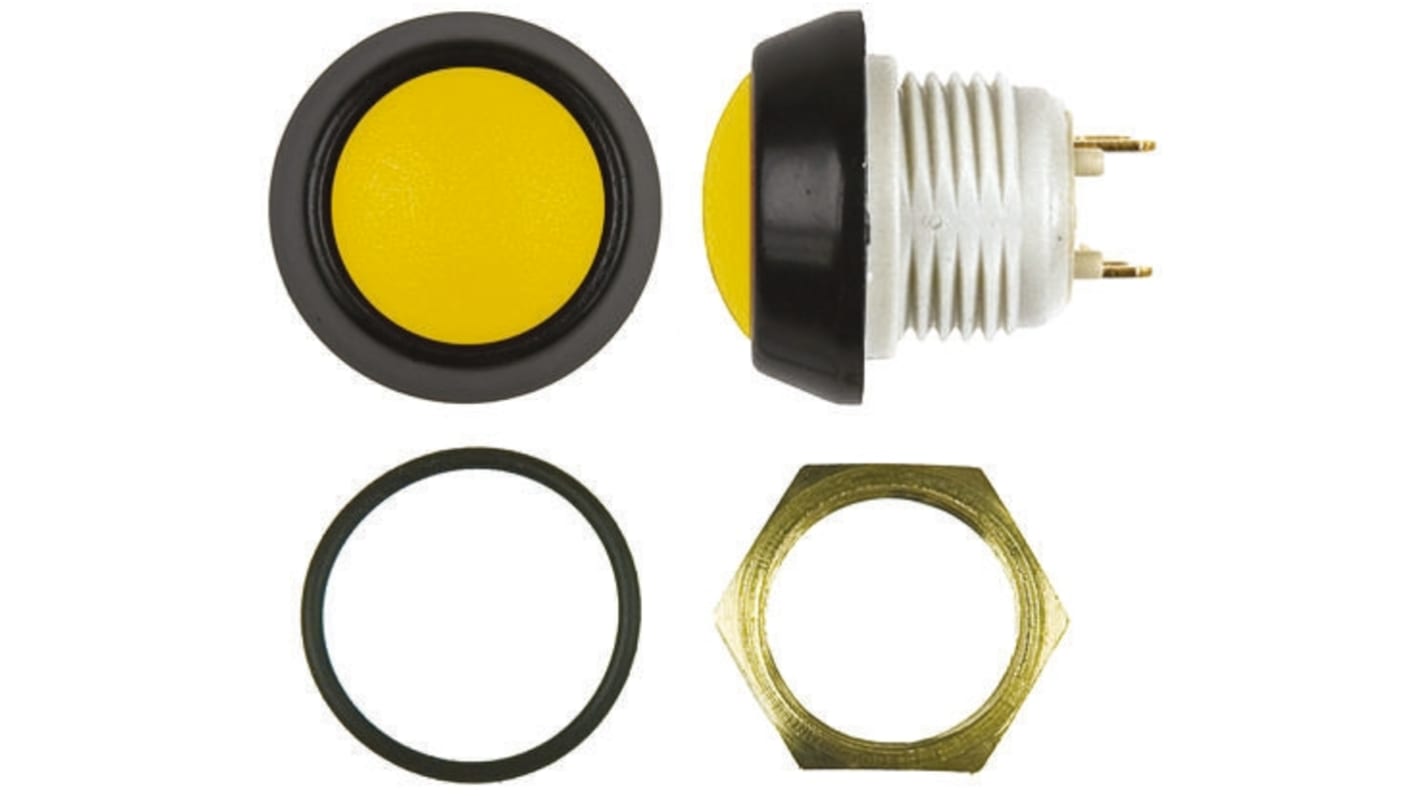

ITW Switches 48 Series Miniature Push Button Switch, Latching, Panel, 13.6 mm Cutout, SPST, Clear LED, IP67, 12 V dc 250
- RS Stock No.:
- 655-4626
- Mfr. Part No.:
- 48-2-RB-N-YL-B
- Brand:
- ITW Switches
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£8.24
(exc. VAT)
£9.89
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 23 unit(s) shipping from 01 June 2026
- Plus 100 unit(s) shipping from 09 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 1 | £8.24 |
| 2 - 4 | £8.00 |
| 5 - 9 | £7.83 |
| 10 - 24 | £7.59 |
| 25 + | £7.25 |
*price indicative
- RS Stock No.:
- 655-4626
- Mfr. Part No.:
- 48-2-RB-N-YL-B
- Brand:
- ITW Switches
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ITW Switches | |
| Product Type | Miniature Push Button Switch | |
| Actuator Colour | Yellow | |
| Switch Operation | Latching | |
| Illuminated | No | |
| Series | 48 | |
| Panel Cutout Size | 13.6 mm | |
| Mount Type | Panel | |
| Contact Configuration | SPST | |
| Terminal Type | Solder | |
| LED Colour | Clear | |
| IP Rating | IP67 | |
| Actuator Style | Button | |
| Minimum Operating Temperature | -40°C | |
| Contact DC Voltage | 12V dc | |
| Contact AC Voltage | 250V ac | |
| Switch Configuration | On-Off | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | CSA, UL | |
| Switch Contact Current | 250mA | |
| Select all | ||
|---|---|---|
Brand ITW Switches | ||
Product Type Miniature Push Button Switch | ||
Actuator Colour Yellow | ||
Switch Operation Latching | ||
Illuminated No | ||
Series 48 | ||
Panel Cutout Size 13.6 mm | ||
Mount Type Panel | ||
Contact Configuration SPST | ||
Terminal Type Solder | ||
LED Colour Clear | ||
IP Rating IP67 | ||
Actuator Style Button | ||
Minimum Operating Temperature -40°C | ||
Contact DC Voltage 12V dc | ||
Contact AC Voltage 250V ac | ||
Switch Configuration On-Off | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals CSA, UL | ||
Switch Contact Current 250mA | ||
- COO (Country of Origin):
- TW
Miniature Sealed Pushbutton Switches, IP67
The 48 series has been designed to offer a wide selection of options in a compact package size. These include button colours, terminations, bezels, and switching actions. They are also panel sealed to IP67.
Typical applications include office equipment, medical equipment, industrial machinery, outdoor controls, mass transportation and food processing equipment.
Momentary and maintained switching actions
Gold contacts
Choice of button colours
Long life
Solder or PC terminals
Panel sealed to IP67
