Schneider Electric Harmony XB4 Series Push Button, Panel Mount, 22mm Cutout, SPST, IP66, IP67, IP69(IP69K)
- RS Stock No.:
- 330-8767
- Distrelec Article No.:
- 303-02-509
- Mfr. Part No.:
- XB4BL42
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£15.92
(exc. VAT)
£19.10
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £15.92 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 330-8767
- Distrelec Article No.:
- 303-02-509
- Mfr. Part No.:
- XB4BL42
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Illuminated | No | |
| Series | Harmony XB4 | |
| Panel Cut Out Diameter | 22mm | |
| Mounting Type | Panel Mount | |
| Push Button Colour | Red | |
| Contact Configuration | SPST | |
| Push Button Style | Round | |
| IP Rating | IP66, IP67, IP69(IP69K) | |
| Push Button Diameter | 22mm | |
| Better World Product | Yes | |
| Contact Material | Silver alloy (Ag/Ni) | |
| Better World Verification | Green Premium | |
| Manufacturer Part No. | XB4BL42 | |
| Legend | (Blank) | |
| Maximum DC Voltage | 600V | |
| Operating Temperature Range | -40 → +70°C | |
| Maximum Operating Temperature | +70°C | |
| Terminal Type | Screw | |
| Minimum Operating Temperature | -25°C | |
| Maximum AC Voltage | 600V | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Illuminated No | ||
Series Harmony XB4 | ||
Panel Cut Out Diameter 22mm | ||
Mounting Type Panel Mount | ||
Push Button Colour Red | ||
Contact Configuration SPST | ||
Push Button Style Round | ||
IP Rating IP66, IP67, IP69(IP69K) | ||
Push Button Diameter 22mm | ||
Better World Product Yes | ||
Contact Material Silver alloy (Ag/Ni) | ||
Better World Verification Green Premium | ||
Manufacturer Part No. XB4BL42 | ||
Legend (Blank) | ||
Maximum DC Voltage 600V | ||
Operating Temperature Range -40 → +70°C | ||
Maximum Operating Temperature +70°C | ||
Terminal Type Screw | ||
Minimum Operating Temperature -25°C | ||
Maximum AC Voltage 600V | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR

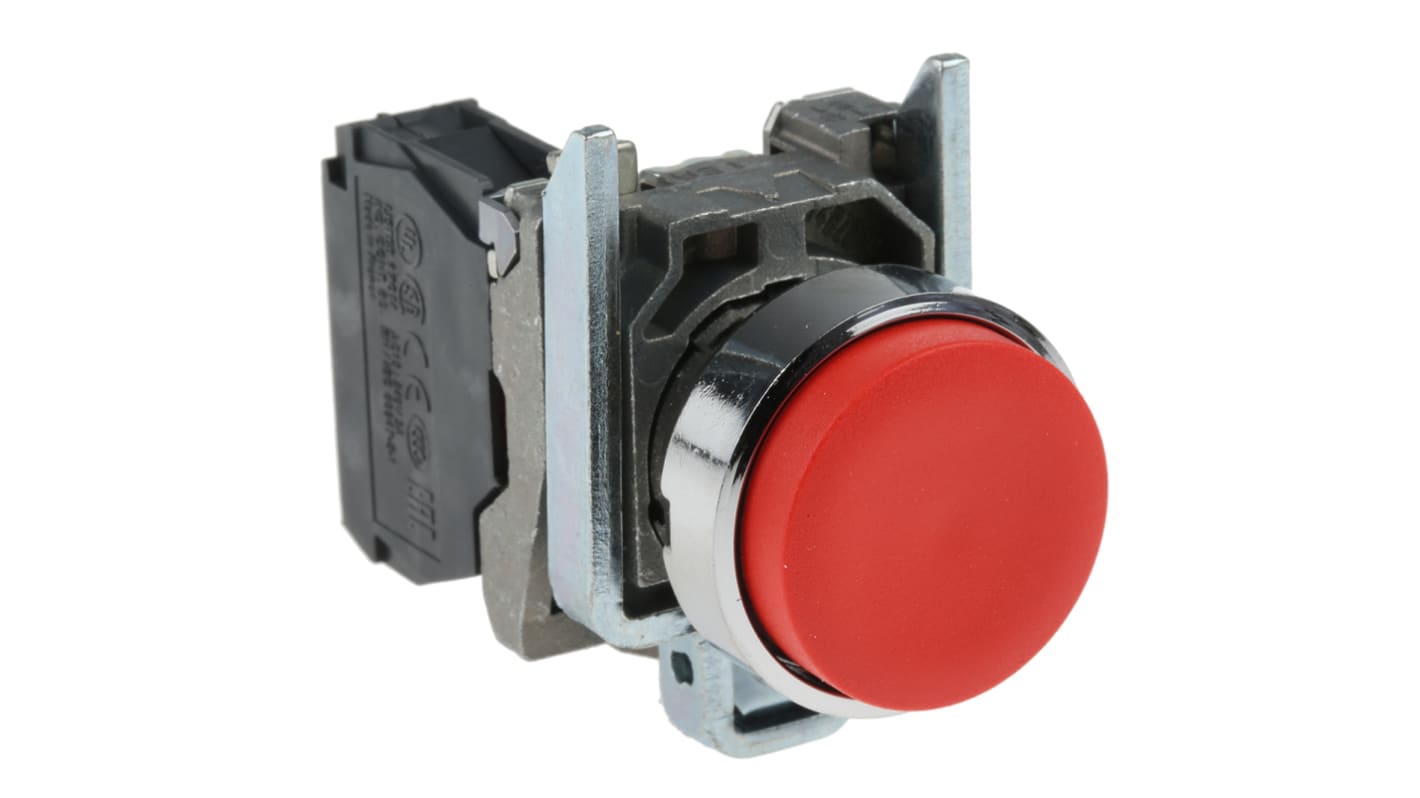

Schneider Electric Harmony XB4 Series Push Button, SPST, Panel Mount - XB4BL42
This push button by Schneider Electric is designed for panel mount applications. With a red, 22mm round push button style and screw terminal for easy installation, this device offers a contact configuration of SPST. The push button operates at a maximum AC/DC voltage of 600V with a temperature range from -25°C to +70°C.
Features & Benefits
• Features maximum voltage of 600V (AC/DC) for smooth operation
• Panel mount design for easy installation
• Resistance to high-pressure washer upto 7000000 Pa
• Panel mount design for easy installation
• Resistance to high-pressure washer upto 7000000 Pa
Applications
• Industrial control panels
• Electrical machinery
• Automation systems
• Motor control circuits
• Electrical machinery
• Automation systems
• Motor control circuits
Can it operate at extreme temperatures?
This push button can operate in temperatures ranging from -25°C to +70°C, making it suitable for various environments.
Will it fit various mounting applications?
Yes, it is panel mountable with a diameter of 22mm, making it versatile for different installations.
Is it easy to install?
With screw terminals and a spring return mechanism, this push button is designed for easy and convenient installation.
Can it withstand high-pressure washing?
Yes, it is resistant to high-pressure washing up to 7000000 Pa, ensuring durability in harsh conditions.
Does it provide reliable electrical connections?
The push button features screw clamp terminals with a contacts material of silver alloy, providing reliable electrical connections.
Approvals
UL; CSA
