Schneider Electric XB4 Series Push Button Switch, Spring Return, Panel, 30 mm Cutout, SPST, Red LED, IP66, IP67, IP69,

View all Push Button Switches

Subtotal (1 unit)*

£18.60

(exc. VAT)

£22.32

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 6 unit(s) shipping from 19 January 2026
  • Plus 5 unit(s) shipping from 19 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£18.60

*price indicative

Sponsored
Harmony XB Push Buttons
Schneider Electric Harmony XB Push Buttons
Schneider Electric's high-quality Harmony XB push buttons are a versatile and reliable choice for your control panel needs
Shop Here
RS Stock No.:
185-3700
Mfr. Part No.:
XB4FA4322
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Product Type

Push Button Switch

Actuator Colour

Red

Switch Operation

Spring Return

Series

XB4

Panel Cutout Size

30 mm

Mount Type

Panel

Contact Configuration

SPST

Terminal Type

Screw

LED Colour

Red

IP Rating

IP66, IP67, IP69, IP69K

Actuator Style

Round

Minimum Operating Temperature

-40°C

Contact DC Voltage

600V

Contact AC Voltage

240V

Maximum Operating Temperature

70°C

Switch Configuration

1 NC

Length

55mm

Height

47mm

Switch Contact Current

10 A

Width

36.6 mm

Standards/Approvals

CSA C22.2 No 14/EN/IEC 60947-5-1/EN/IEC 60947-5-4/UL 508/EN/IEC 60947-1/JIS C8201-5-1/JIS C8201-1

Legend

Symbol

Operating temperature from -40°C –to 70°C

High vibration resistance with shake-proof terminal screws

Large set of accessories to customize your panels

Various types of connection are available: screw clamp, connector, Faston connector, spring terminal, or printed circuit board

A wide choice of contact blocks for general purpose or specific applications (low current, standard, or high power switching)

Benefits

High performance even in the most demanding environments

Attractive design, reinforced with the flush mounting kit

Flexibility and adaptability through modular design

Simplicity and speed of installation

Wide offer providing a solution for all your applications

Applications

General purpose offer covering all segments and applications Industry

Machines and control panels in packaging, material handling, material working, pumping, etc.

Ideal in extreme environments: food and beverage, automotive, and outdoor use such as mining, water treatment, etc. Building and infrastructure

Energy distribution panels, public works, restaurants, commercial buildings, airports, etc.

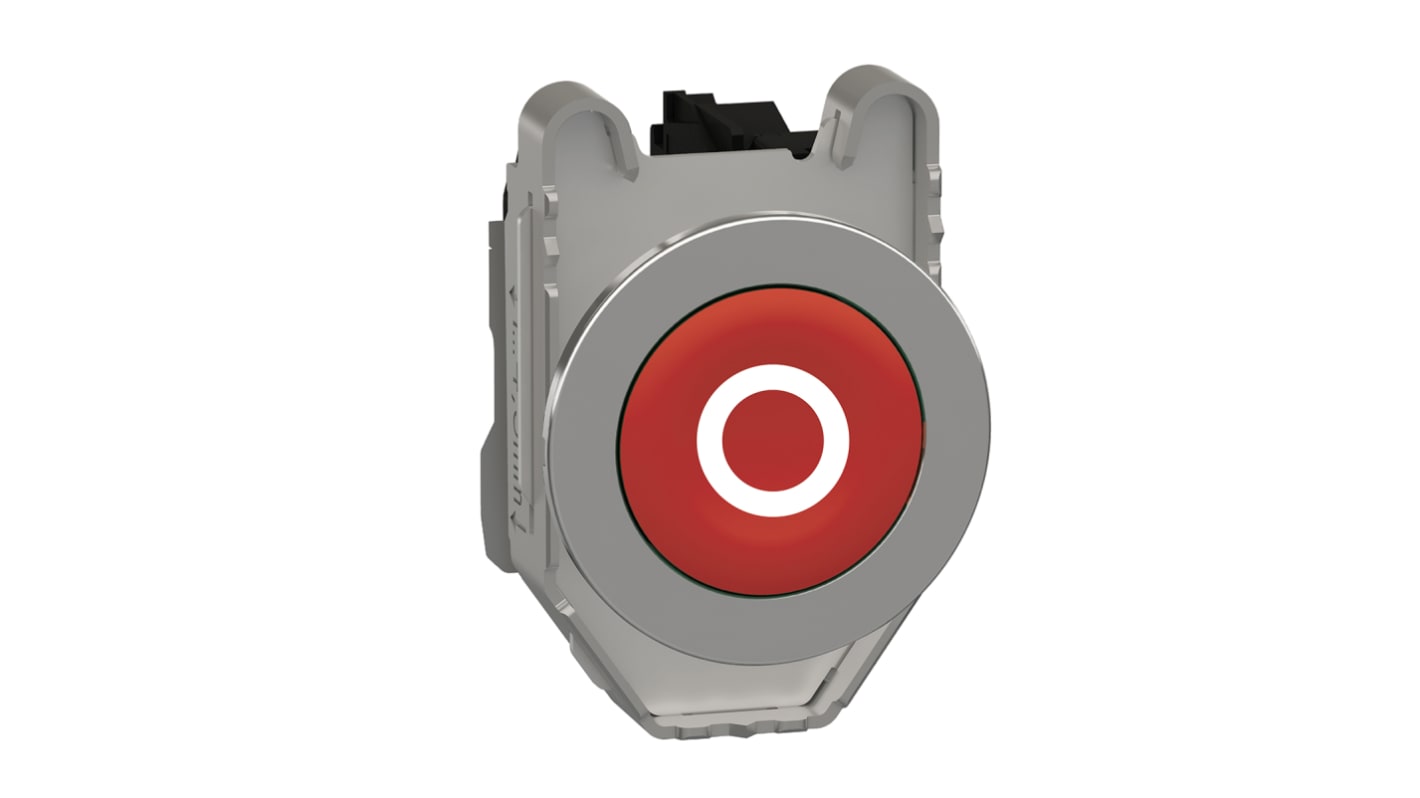

Flush mounted red Flush caps pushbutton white "marked O" 1NC screw clamp
